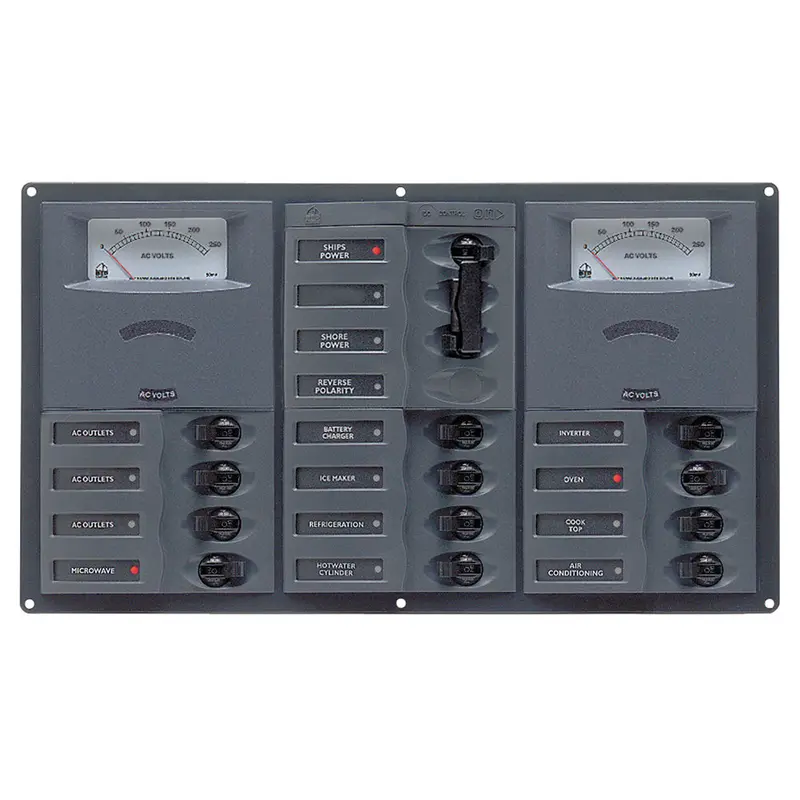

BEP 12-Circuit AC Breaker Panel – Analog Meters, 230V, Stainless Steel Horizontal

Description

AC Circuit Breaker Panel with Analog Meters, 12SP 2DP AC230V Stainless Steel Horizonal
Features

• Supplied with tranducer
• Reverse polarity indicator
• Double pole mains input CBs with side lockout
• Analog meter
• LED wired to indicate live panel with mains breaker either on or off
• AC source selector ensures no cross over between AC inputs (ship or
  shore power)

Specifications

• Total Positions: 12 Loads + 2 Inputs
• Circuit Breakers: 1x 5A, 4x 10A, 5x 15A, 1x 20A, 1x 25A + 1x 20A, 1x 30A
• Nominal Voltage: 230V AC
• Maximum Amperage: 30A
• Dimensions: 7.9″ X 13.9″ X 2.5″
• Neg Bus: IS-6MM-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 12+2
• UPC: 843687003762
