Product Description

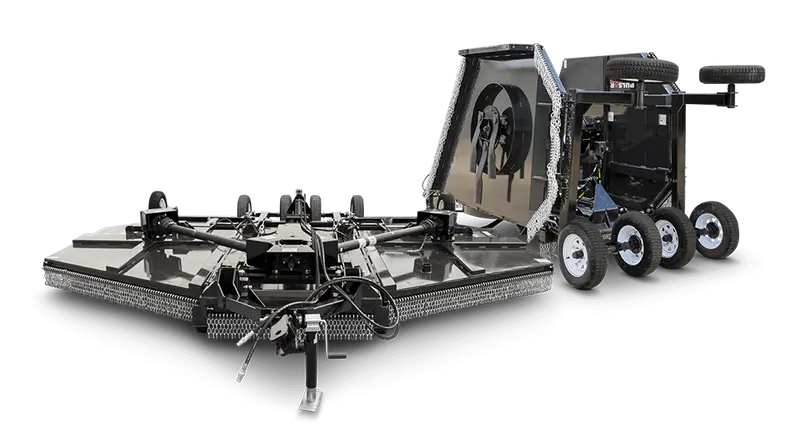

MK Martin Rotary Cutter 3PH-Plus Pull Type Cutter Model PRCPlus 120 | 120″ Working Width | 20-80HP For Tractor
DESCRIPTION
The PTO powered Pulsar series of rotary cutters provide excellent mowing and shredding performance for tractors rated between 20-50 HP. The 3PH mount models are available in a variety of cutting widths providing a cutting path from 48″ – 72″. To better adapt to your conditions, the Pulsar features an adjustable cutting height of 2″ – 10″ and a floating top link. This combination allows you to get the ideal cut for your field or roadside. Shipping Weight (LBS.) 380 3PH Mount CAT 1 Cutting Height 2″-10″ Cutting Path 48″ Max Brush Diameter 1″ Tip Speed (Ft/Min) 13,100 Wheels 16″ SEGMENTED Blades 1/2″ X 3″ Tractor HP (min) 30 PTO RPM 540 Gearbox Rating 40 Deck 10GA Stump Jumper YES Rubber Guard STD. Protection (Std./Opt.) SHEAR PIN
Key Features
- Bolt-On Skid Shoe: Provides added protection and easy maintenance.
- Blade Assembly: Durable 6-blade assembly for efficient cutting.
- Floating Top Link: Allows for flexibility to adjust to ground contours.
- Segmented Wheel: Ensures smoother operation across uneven terrain.
- Slip Clutch: Built-in protection to prevent gearbox damage.
- Chain Curtain Option: Enhances safety by containing debris.
- Optional Draw Bar Kit: Designed for 84″ & 96″ models; features components available in black for attachment ease.
Bolt-On Skid Shoe
Blade Assembly
Floating Top Link
Segmented Wheel
Slip Clutch
Chain Curtain Option
Optional Draw Bar Kit
The Draw Bar Kit is designed for 84″ & 96″ models. The kit consists of components shown in black in this image (red components for illustration only).
Detailed Specifications
| Specification | PRCPLUS120 |
|---|---|
| Part Number | PRCPLUS120 |
| Manufacturer | MK MARTIN |
| Category | Tractor Attachments |
| SubCategory | Rotary Cutter Pull Type |
| Industry | Agricultural |
| Machine Size | Tractor |
| Attachment Size | 120″ Working Width |
| Shipping Weight (LBS.) | 1,610 |
| Hitch Type | Draw Bar Hitch |
| Cutting Height | 2″ – 10″ |
| Cutting Path | 120″ |
| Max Brush Diameter | 2″ |
| Tip Speed (Ft/Min) | 14,500 |
| Wheel Type (Qty.) | 16″ Pneumatic (2) |
| Blades | 6 – 1/2″ x 4″ |
| Tractor HP (min) | 80 HP |
| PTO RPM | 540 |
| Gearbox Rating | 120 HP |
| Deck | 9GA |
| Stump Jumper | Yes |
| Protection | Slip Clutch |
In Package
- MK Martin Pulsar Rotary Cutter
- 16″ Pneumatic Wheels (2)
- Slip Clutch Protection System
- Rubber Guard (Standard)
- Optional Accessories: Chain curtain and draw bar kit available separately.
Manuals & Documents
The Product Manual
Rotary Cutter Brochure
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and “wear parts” including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
Videos
Shipping
General Shipping Info:
- Instantly calculate shipping quotes to the lower 48 states by 1. adding this product to your cart, 2. click continue to the checkout page and 3. enter your shipping address to check rates. Contact us for quotes for shipping to Hawaii, Alaska, Canada, Mexico and Internationally.
- Complimentary lift gate service on all freight shipments where it’s possible. We guarantee safe delivery!
- Low shipping rates for customers. We have negotiated the best possible rates for customers from our trusted carriers (ODFL, ESTES, UPS, and FedEx).
- Negotiate shipping rates if you think we can do better please reach out. Keep in mind some shipping rates also include assembly & configuration that as well!
