Product Description

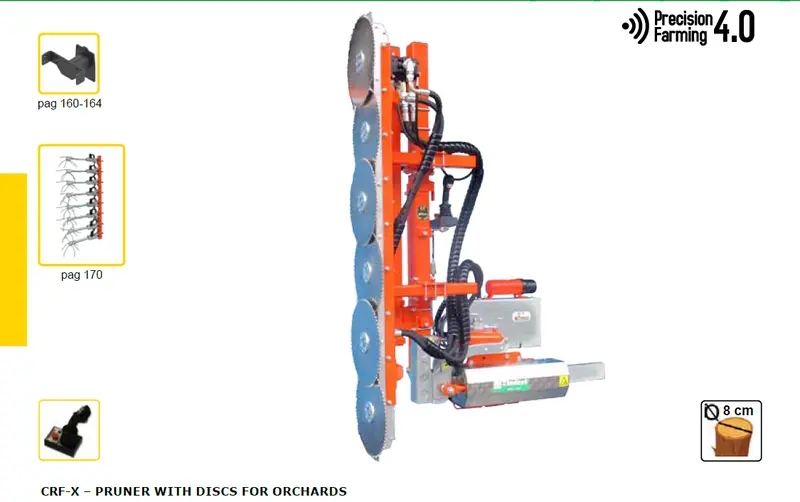

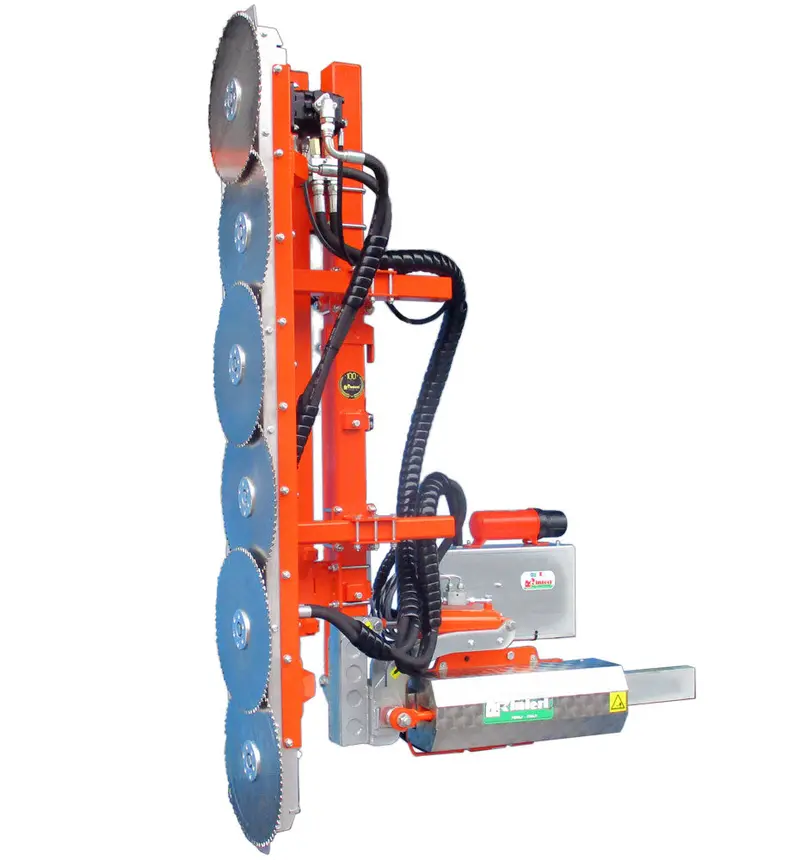

Rinieri Pruning Machine with Discs CRF-X Series | 16″ Disc Diameter | 79-140″ Cutting Width for Tractor

DESCRIPIOTN

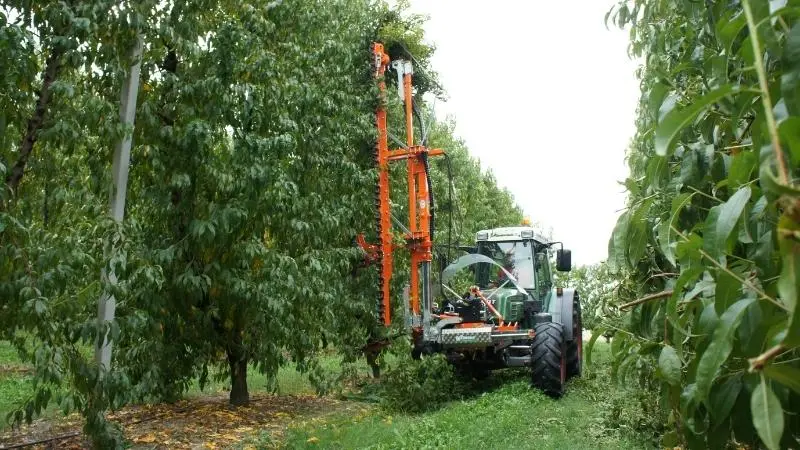

The CRF-X Pruning Machine is the latest innovation in orchard pruning, designed for high-density spindle orchards. Suitable for various fruit varieties such as apples, apricots, cherries, and olives up to 13 feet high, this pruner features advanced saw disc bars with a diameter of 15.7 inches, capable of handling branches up to 3.1 inches thick.

The CRF-X is highly adaptable, with optional accessories including top and bottom bars, hydraulic tilting, and rear rotation for navigating obstacles like poles in orchards with hail nets. Additionally, a “window” cutting kit is available to enhance sunlight penetration within the canopy, boosting productivity and significantly reducing manual labor.

Key Features

• High-Density Pruning: Suitable for trees up to 13 feet high and branches up to 3.1 inches in diameter.
• Advanced Saw Discs: Equipped with Ø 15.7-inch saw discs for efficient cutting.
• Adaptable Design: Features optional top bars, bottom bars, and hydraulic adjustments to accommodate different orchard setups.
• Hail Net Adaptation: Hydraulic tilting and rear rotation available for top bars to avoid obstacles.
• “Window” Cutting Kit: Enhances sunlight penetration and increases productivity inside the tree canopy.

FRAME:

• Proportional electro-hydraulic distributor with joystick 4+1
• Hydraulic lifting 90cm
• Column hydraulic tilting +/-15%
• Hydraulic side shift 50cm and manual 25cm
• Vertical bar with Ø 400mm discs

SAFETY

• Max pressure valve for motors
• Hydraulic stand for storage

HYDRAULIC KIT

• Hydraulic kit with 80 Lit/min pump, gearbox, 90L oil tank, oil cooler and cardan joint
• Socket 12V

Detailed Specifications

Component	Details
Hydraulic Lifting	35.4 inches
Hydraulic Tilting Column	+/- 5.9 inches
Hydraulic Side Shift	19.7 inches (hydraulic) and 9.8 inches (manual)
Vertical Bar with Discs	Ø 15.7 inches
Proportional Electro-Hydraulic Distributor	Joystick 4+1 or 6+1 options
Hydraulic Kit	80 Lit/min pump, gearbox, 90L oil tank, oil cooler, and cardan joint
Socket	12V

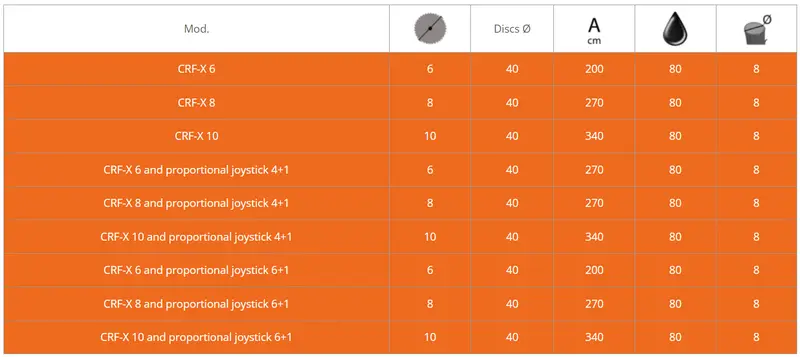

Model & Performance Chart

Model	Disc Dimensions (inches)	Cutting Power (kW)
CRF-X 6	No. of Discs: 6 Disc Dia.: 15.7 Dim. A: 78.7 Oil Demand: 80 L/min	8
CRF-X 8	No. of Discs: 8 Disc Dia.: 15.7 Dim. A: 106.3 Oil Demand: 80 L/min	8
CRF-X 10	No. of Discs: 10 Disc Dia.: 15.7 Dim. A: 133.9 Oil Demand: 80 L/min	8
CRF-X 6 + Joystick 4+1	No. of Discs: 6 Disc Dia.: 15.7 Dim. A: 106.3 Oil Demand: 80 L/min	8
CRF-X 8 + Joystick 4+1	No. of Discs: 8 Disc Dia.: 15.7 Dim. A: 106.3 Oil Demand: 80 L/min	8
CRF-X 10 + Joystick 4+1	No. of Discs: 10 Disc Dia.: 15.7 Dim. A: 133.9 Oil Demand: 80 L/min	8
CRF-X 6 + Joystick 6+1	No. of Discs: 6 Disc Dia.: 15.7 Dim. A: 78.7 Oil Demand: 80 L/min	8
CRF-X 8 + Joystick 6+1	No. of Discs: 8 Disc Dia.: 15.7 Dim. A: 106.3 Oil Demand: 80 L/min	8
CRF-X 10 + Joystick 6+1	No. of Discs: 10 Disc Dia.: 15.7 Dim. A: 133.9 Oil Demand: 80 L/min	8

In Package

• CRF-X Pruning Machine
• Hydraulic lift, tilting column, and side shift
• Vertical bar with Ø 15.7-inch saw discs
• Hydraulic kit (80 Lit/min pump, gearbox, 90L oil tank, oil cooler, cardan joint)
• Max pressure valve for motor protection
• Hydraulic stand for safe storage
• User Manual & Setup Guide

Additional Accessories for CRF->Elevate your orchard maintenance with the CRF-X Pruning Machine. Designed for high-density orchards and featuring advanced saw discs, this machine offers exceptional performance and adaptability. Enhance your pruning efficiency and reduce manual labor—order the CRF-X today and optimize your orchard’s productivity!
