Trilo S4 Vacuum Trailer – 82.7″ Width, 159.5″ Length, 5.2 CY Capacity, 35–90 HP Pull-Type for Tractors

Description

Product Description

TRILO Vacuum Trailer | Model S4 | Width 82.7″ | Length 159.5″ | Capacity 5.2 Cubic Yard | Horsepower 35-90 HP | Pull Type Trailer | For Tractors

DESCRIPTION

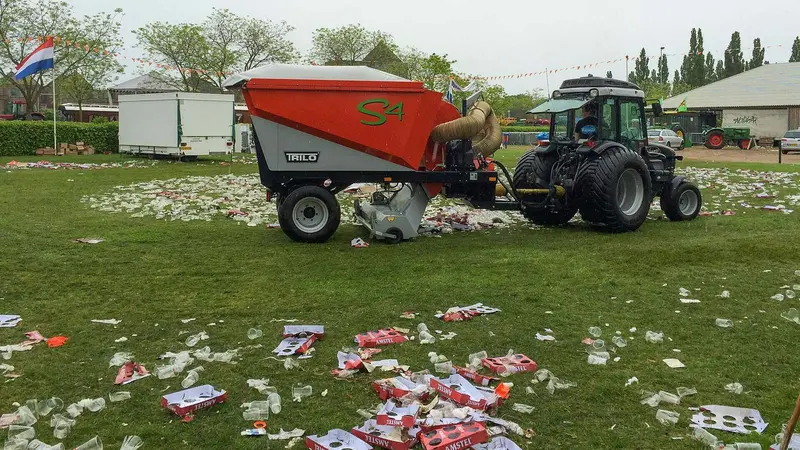

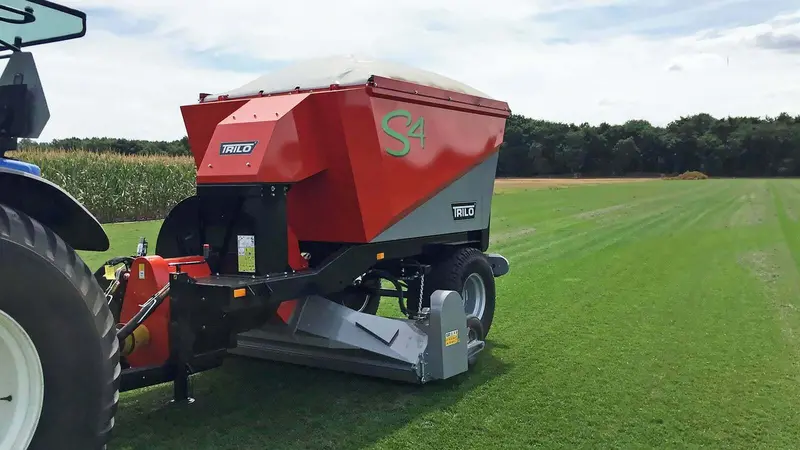

The TRILO S4 Vacuum Trailer is a high-performance tow-behind debris management system designed for sweeping and collecting grass clippings, verticutting residue, leaves, and waste in a single pass. Ideal for sports fields, sod farms, and public spaces, the S4 features a powerful PTO-driven impeller housed in a wear-resistant casing, ensuring reliable suction even in wet conditions. Its 4 m³ high-tipping bin, wide radial tires, and adjustable airflow system deliver efficient operation with minimal turf impact. With EU road transport approval and one-person operation, the S4 is built for productivity and versatility across seasons.

Key Features

• 82.7-Inch Sweeping Width Perfect for collecting grass clippings, leaves, and litter across sports fields, parks, and large turf areas
• Tow-Behind Trailer Design Pull-type configuration offers flexible use with compact and utility tractors
• 5.2 Cubic Yard Bin Capacity Handles high-volume debris collection with fewer unload cycles for increased productivity
• 850 mm Fan with 4 Blades Generates 315 m³/min (11,122 ft³/min) airflow for powerful suction and efficient material transfer
• PTO-Driven for 35–90 HP Tractors Compatible with 540 or 1000 RPM PTO systems for sweeping, cutting, and suction hose operations
• Optional 236″ Wander Hose (Ø 9.8″) Enables vacuuming in hard-to-reach areas like fence lines, tree bases, and building edges
• High Tipping Bin (84.6″) Allows easy unloading into trailers or compost piles without additional equipment
• Radial 500/50R17 Tires Provide low ground pressure for turf-safe operation on sensitive surfaces
• Hydraulic System: 180 Bar, 40 l/min Flow Operates tipping and optional accessories with a single double-acting connection
• Noise Level: 84 dB(A) Balanced for powerful operation while remaining within acceptable sound thresholds
• European Type Approved for Road Use Legal for public road transport across Europe for easy relocation between job sites

Detailed Specifications

Attribute	Specification
Model	S4
Mount Type	Tow-Behind (Pull-Type Trailer)
Bin Capacity	4 m³ (5.2 yd³ / ~1059 gallons)
Tipping Height	84.6″ (2.15 m)
Working Width (Sweeping)	70.9″ / 82.7″ / 94.5″ (1.8 / 2.1 / 2.4 m)
Working Width (Cut & Collect)	70.9″ / 82.7″ (1.8 / 2.1 m)
Fan Diameter	33.5″ (Ø 850 mm)
Fan Blades	4
Air Capacity	11,122 ft³/min (315 m³/min)
Noise Level	84 dB(A)
PTO Requirements	540 / 1000 RPM
PTO Power (Sweep & Collect)	45–70 HP (33–51 kW)
PTO Power (Cut & Collect)	70–90 HP (51–66 kW)
PTO Power (Wander Hose)	35–50 HP (26–36 kW)
Hydraulic Pressure Requirement	180 bar
Hydraulic Flow Rate	40 l/min
Hydraulic Connections	1 × Double Acting
Wander Hose Dimensions	9.8″ Ø × 236″ total length (Optional)
Tyres	500/50R17 Radial
Road Approval	European Type Approved

Manuals & Documents

Product Brochure
