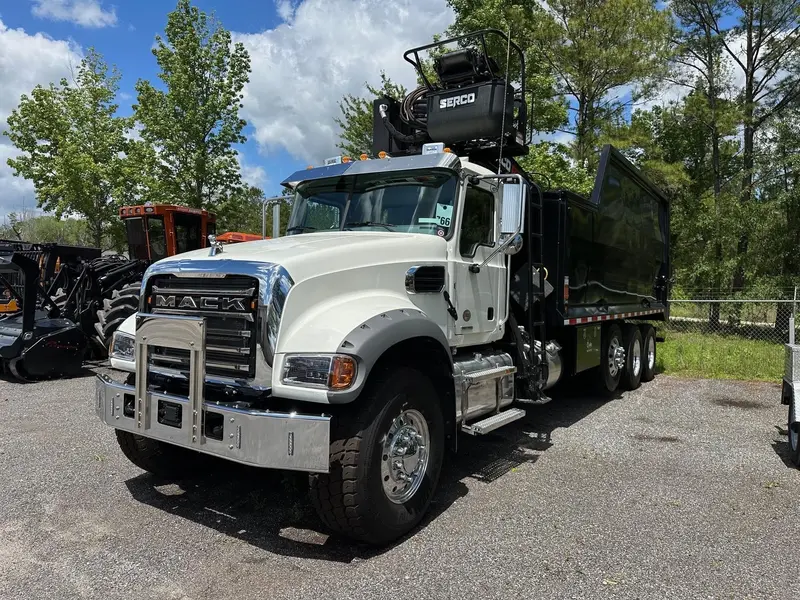

2025 Mack Grapple Truck | Model Granite 64FR | Engine Horsepower 445 HP | Max Opening Width 71″ inches
Ripping It has partnered with Quality Equipment to provide you the best pricing and service on all your Mack needs!
DESCRIPTION
Discover the power and efficiency of the new 2025 MACK GRANITE 64FR, available exclusively at Ripping it out Doors! This robust grapple truck chassis is designed for heavy-duty applications, featuring a Mack MP8 engine with 445 HP and 1850 TQ, coupled with a Mack mDRIVE HD transmission. The Granite 64FR is equipped with a BEAUROC MPHD 24′ debris dump body and a SERCO 8500 loader boom, making it the ideal solution for all your waste collection and debris management needs. Enhance your operational capabilities with this state-of-the-art truck. Contact us now to elevate your productivity!
Upgrade your waste collection and debris management operations with the 2025 MACK GRANITE 64FR, now available at Ripping it out Doors. This powerful and versatile grapple truck chassis, equipped with a BEAUROC MPHD 24′ debris dump body and SERCO 8500 loader boom, offers unparalleled performance and reliability. Don’t miss out on this incredible opportunity. Contact us today to secure your 2025 MACK GRANITE 64FR and boost your productivity to new heights!
Key Features
- Powerful Engine: Mack MP8 engine with 445 HP and 1850 TQ for exceptional performance.
- Reliable Transmission: Mack mDRIVE HD transmission ensures smooth and efficient operation.
- Durable Tires: 425/65R22.5 Michelin front tires and 11R24.5 Bridgestone rear tires for enhanced durability.
- Advanced Hydraulics: Parker F1 pump assembly and rear-mounted factory PTO for optimal hydraulic performance.
- Tandem Axle Configuration: Includes a steerable drop axle for added stability and load distribution.
- Enhanced Safety: Mack collision avoidance system and disc style brakes for improved safety.
- Comfortable Cab: Left-hand drive with a new A/C system for a comfortable working environment.
- Additional Accessories: Reverse camera system, 24″ deep side boxes, front and rear strobe package, HD bumper package with receiver, and optional manual or spring retract tarp system.
Detailed Specifications
| Attribute | Details |
|---|---|
| Year | 2025 |
| Manufacturer | MACK |
| Model | Granite 64FR |
| Mileage | 1 mile |
| Engine | Mack MP8, 445 HP, 1850 TQ |
| Transmission | Mack mDRIVE HD, Automatic |
| Front Tires | 425/65R22.5 Michelin |
| Rear Tires | 11R24.5 Bridgestone |
| Debris Dump Body | BEAUROC MPHD 24′ Hardox steel |
| Boom Reach | 22′ boom, 4′ telescopic (26′ total) |
| Grapple | SERCO SWG048-1/4, 48-inch width |
| Hydraulic System | Parker F1 pump assembly, PTO |
| Cab Features | Reverse camera, air-conditioned |
| Safety Features | Collision avoidance, disc brakes |
| Warranty | Mack 5-year/350,000 mile engine, after treatment, and A/C system |
Debris Dump Body Specifications
| Attribute | Details |
|---|---|
| Manufacturer | BEAUROC |
| Model | MPHD 24′ |
| Dimensions | 24′ x 8′ x 8′ |
| Cylinder | Mailhott G3 with cradle and hinge |
| Wall Material | 3/16″ Hardox steel |
| Floor Material | 1/4″ Hardox steel |
| Sills | 8″ Formed I-Beam |
| Color | Painted black (custom color optional) |
Loader Boom Specifications
| Attribute | Details |
|---|---|
| Manufacturer | SERCO |
| Model | 8500 |
| Boom Length | 22′ + 4′ telescopic (26′ total) |
| Hydraulic Cooler | Single fan, mounted on head |
| Stabilizers | Telescopic A-frame |
| Rotation | Continuous |
| Control Valves | Stack type valves (Hydrocontrol) |
| Lighting | LED light package |
Waste Grapple Specifications
| Attribute | Details |
|---|---|
| Model | SERCO SWG048-1/4 |
| Width | 48 inches |
| Jaws | Trash style |
| Cylinders | Protected |
| Rotation | Continuous |
| Max Opening Width | 71 inches |
| Weight | 1292 lbs |
