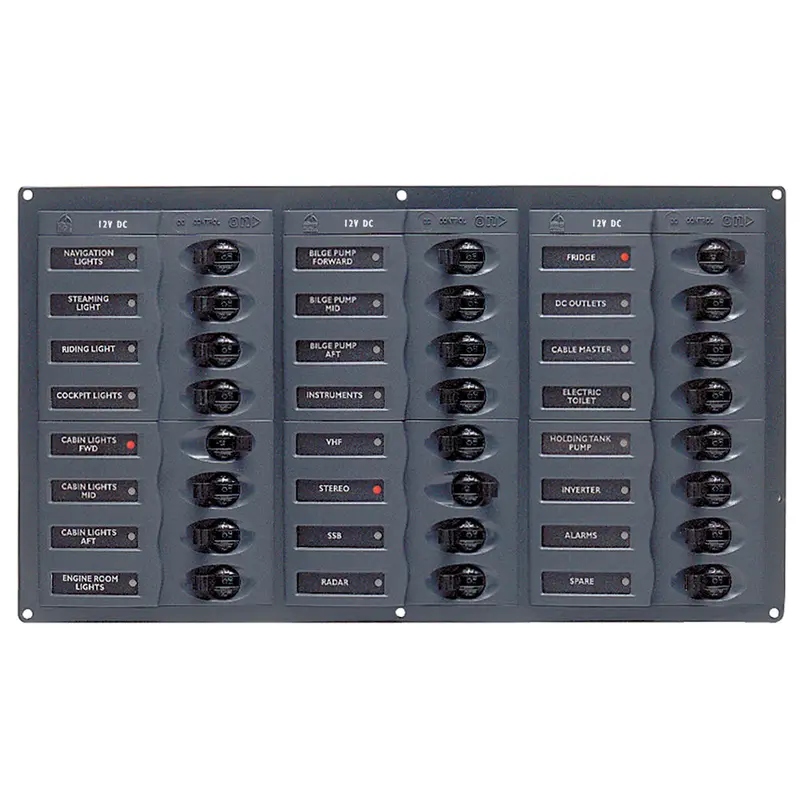

BEPP 24-Circuit DC Distribution Panel – Meter-Free Configuration [905NM]

Description

DC Panel – 24-Way – No Meter
BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.
Features

• Marine Grade powder coated aluminium
• Airpax circuit breaker
• Stylish Contour Design fascia
• Green LED backlit labels
• Red LED indicates systems on
• Panels meet ABYC standards

Specifications
Total Positions: 24 Loads
Circuit Breakers: 5X 5A, 8X 10A, 8X 15A, 1X 20A, 1X 25A, 1X 30A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 7.9″ X 13.9″ X 2.5″
Neg Bus: 12 Way

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 12v
• AC/DC: DC
• Max Breaker Quantity: 24
• Box Dimensions: 5″H x 11″W x 16″L WT: 6.6 lbs
• UPC: 870216002200

Owner’s Manual (pdf)
