Product Description

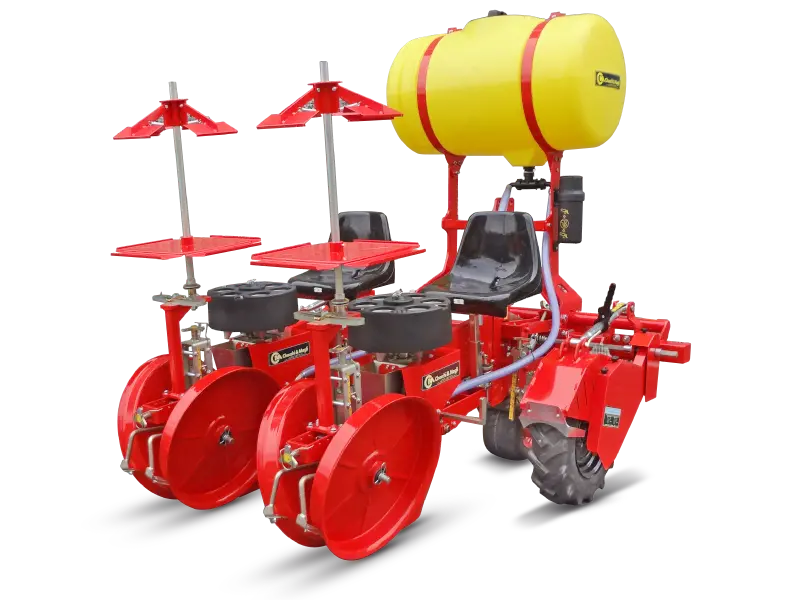

Checchi & Magli Transplanter Texdrive Best 12-Cups | Frame Width 79″ to 157″ | Horsepower 25-45 HP | For Tractors
Included Options:
- Tray Holders: Single, double, and 4/6-sided rotary tray holders.
- Horizontal Racks: Two or more shelves for additional plant storage.
- Row Markers: Manual or hydraulic for precise row alignment.
- Watering Device: Ensures hydration during planting.
- Fertilizer Dispenser: Enables simultaneous planting and fertilization.
- Rapid Shift Adjustment: Customizable plant spacing options.
- Ploughshares: Standard and adjustable for different soil conditions.
- Cutting Discs: Waved or smooth for precise planting rows.
DESCRIPTION
Semiautomatic for seedling with conical roots
Driven by tyred driving wheels. Rotary distributor with 12 cups with opening bottoms for interplant spacings from 5.51 inches to 19.69 inches and over on request. Standard four-bar linkage every transplant unit. Available with 12 holes distributor with high productivity. Minimum inter-row spacing 19.69 inches, maximum 35.43 inches and over on request.
TEXDRIVE-DT
Version for inter-row spacings less than 19.69 inches, minimum 9.84 inches – 3,4,6 rows versions available, also with foldaway hydraulic frame (6 TPI). Indicative production: 3,500-4,000 plants per hour each row (6,000-7,000 with 12 holes distributor).
Frame Width:
- 200 cm = 78.74 inches
- 250 cm = 98.43 inches
- 300 cm = 118.11 inches
- 350 cm = 137.80 inches
- 400 cm = 157.48 inches
Key Features
- Plant storage: tray holders not-supplied, choice of 4 sided revolving tray holders (single or double), 6 sided revolving tray holders or horizontal racks with 2 or more shelves.
- Distribution system: horizontal with continuous rotation (without jerking), 12 cups with opening
bottom. - Soil adaptation: independent and oating transplant units. High range parallelogram for a constant horizontality, reversible and adjustable spring in order to increase or reduce the weight on the packing wheels, front ex adjustable wheel.
- Automatic disengagement: in case of accidental stoppage with automatic and self-timing re-engagement.
- Plant control: device for precise and constant planting.
- Packing wheels: double-convergent with triple adjustment for perfect.
- Furrow opener ploughshare: quick release with anti-release system, anti-wear fusion on the bottom.
- Wheel scraper: high efficiency with double adjustment (height and incidence).
- Distance between rows: minimum 60 cm/24″.
- Plant to plant spacing: Adjustable from 14 cm to 50 cm/6″-20″ standard (from 31 cm to 103 cm/12″-41″ optional).
Adjustable from 14 cm to 50 cm/6″-20″ with Rapid Shift (from 26 cm to 81 cm/10″-32″ optional). - Transmission: mechanical with drive wheels and hexagonal bar (no PTO).
- Indicative production: up to 6000/7000 plants/hour per operator.
- Driving System: Driven by tyred driving wheels.
- Rotary Distributor: Six cups with opening bottoms for interplant spacings from 14 cm to 50 cm and over, on request.
- Standard Four-Bar Linkage: Every transplant unit.
- High Productivity: Available with a 12-hole distributor.
- Inter-Row Spacing: Minimum 50 cm, maximum 90 cm, and over on request.
- TEXDRIVE-DT Version:
- Suitable for inter-row spacings less than 50 cm, minimum 25 cm.
- Available in 3, 4, and 6 rows versions.
- Option for foldaway hydraulic frame (6 TPI).
- Production Capacity:
- 3500-4000 plants per hour per row.
- 6/7000 plants per hour with a 12-hole distributor.
Detailed Specifications
| Feature | Details |
|---|---|
| Plant-to-Plant Spacing | Adjustable from 14 cm to 50 cm (6″-20″) |
| Inter-Row Spacing | Minimum 50 cm (20″); DT version 25 cm (10″) |
| Production Capacity | Up to 7,000 plants/hour per operator |
| Transmission | Mechanical with drive wheels |
| Row Configurations | 3, 4, or 6 rows with reinforced or hydraulic frames |
| Weight Range | 360-1,270 kg (793-2,800 lbs) |
| Power Requirement | 25-45 HP |
| Configuration | Specifications |
|---|---|
| Solo-Standard 200 | Frame Width: 200 cm, Weight: 360 kg, Power: 25 HP |
| Dual-Standard 200 | Frame Width: 200 cm, Weight: 465 kg, Power: 25 HP |
| Tri-Reinforced 250 | Frame Width: 250 cm, Weight: 645 kg, Power: 30 HP |
| Quad-Reinforced 300 | Frame Width: 300 cm, Weight: 785 kg, Power: 35 HP |
| Penta-Reinforced 350 | Frame Width: 350 cm, Weight: 930 kg, Power: 40 HP |
| Hexa-Reinforced 400 | Frame Width: 400 cm, Weight: 1,270 kg, Power: 45 HP |
In Package
- Texdrive Best Transplanter Unit
- Standard or reinforced frame depending on configuration
- Floating transplant units with adjustable parallelogram
- User manual for operation and maintenance
