Product Description

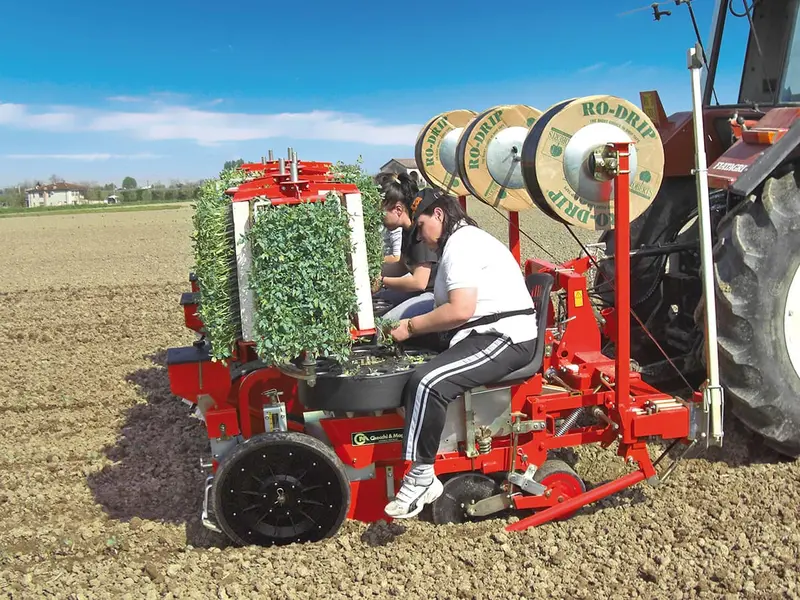

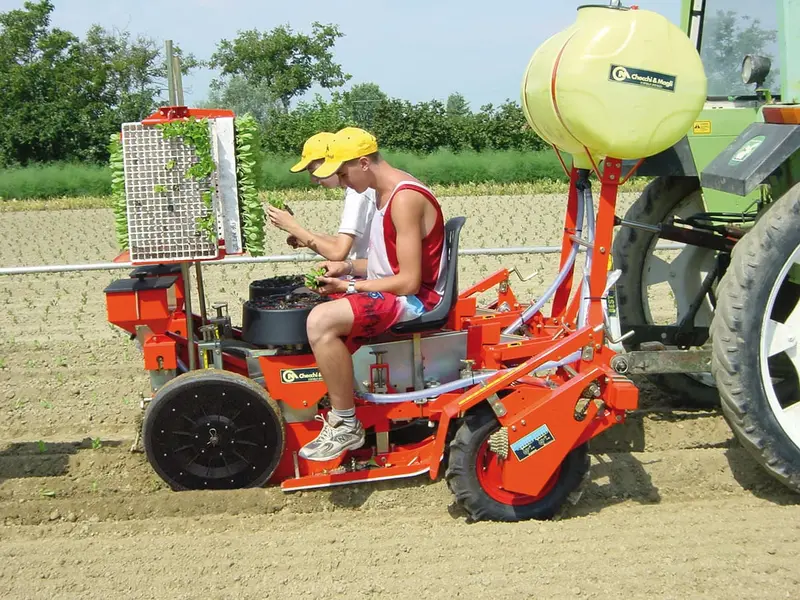

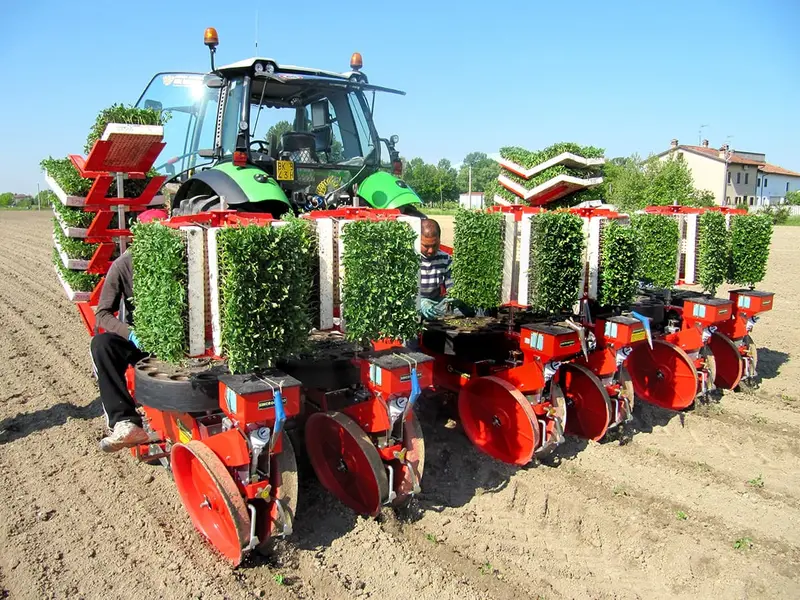

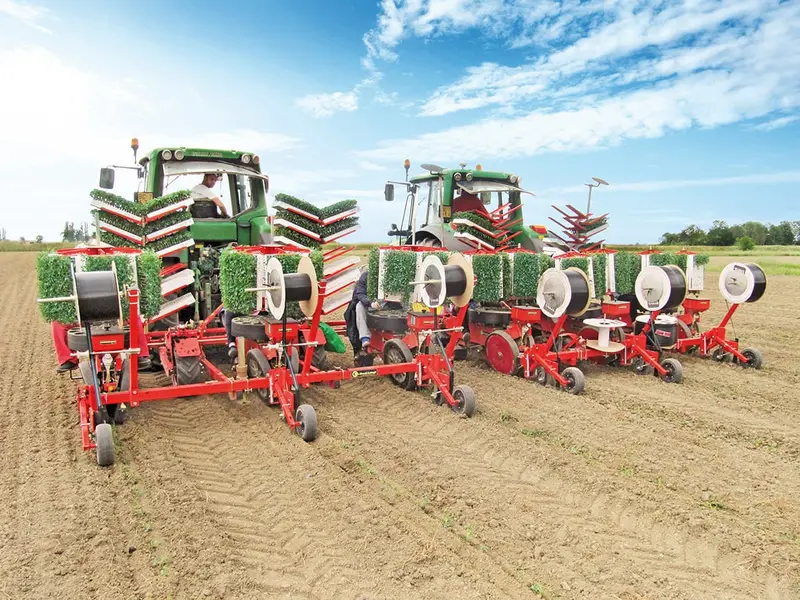

Checchi & Magli Transplanter Texdrive Best 6-Cups | Weight 345-1200 Kg | Horsepower 25-45 HP | For Tractors
Included Options:
- Tray Holders: Single, double, and 4/6-sided rotary tray holders.
- Horizontal Racks: Available in multiple sizes for additional plant storage.
- Row Markers: Manual or hydraulic options for accurate row spacing.
- Watering Device: Provides synchronized seedling hydration.
- Fertilizer Dispenser: Allows simultaneous planting and fertilization.
- Rapid Shift Adjustment: Extends spacing flexibility.
- Cutting Discs: Waved or smooth options for enhanced soil preparation.
DESCRIPTION
Semiautomatic for seedling with conical roots
Driven by tyred driving wheels. Rotary distributor with six cups with opening bottoms for interplant spacings from 5.51 inches to 19.69 inches and over on request. Standard four-bar linkage every transplant unit. Available with 12 holes distributor with high productivity. Minimum inter-row spacing 19.69 inches, maximum 35.43 inches and over on request.
TEXDRIVE-DT
Version for inter-row spacings less than 19.69 inches, minimum 9.84 inches – 3,4,6 rows versions available, also with foldaway hydraulic frame (6 TPI). Indicative production: 3,500-4,000 plants per hour each row (6,000-7,000 with 12 holes distributor).
Frame Width:
- 200 cm = 78.74 inches
- 250 cm = 98.43 inches
- 300 cm = 118.11 inches
- 350 cm = 137.80 inches
- 400 cm = 157.48 inches
Key Features
- Plant storage: tray holders not-supplied, choice of 4 sided revolving tray holders (single or double), 6 sided revolving tray holders or horizontal racks with 2 or more shelves.
- Distribution system: horizontal with continuous rotation (without jerking), 6 cups with opening bottom.
- Soil adaptation: independent and oating transplant units. High range parallelogram for a constant horizontality, reversible and adjustable spring in order to increase or reduce the weight on the packing wheels, front ex adjustable wheel.
- Automatic disengagement: in case of accidental stoppage with automatic and self-timing re-engagement.
- Plant control: device for precise and constant planting.
- Packing wheels: double-convergent with triple adjustment for perfect.
- Furrow opener ploughshare: quick release with anti-release system, anti-wear fusion on the bottom.
- Wheel scraper: high effciency with double adjustment (height and incidence).
- Distance between rows:
Minimum 50 cm/20″.
Minimum 40 cm/16″, only for Texdrive Best 2 rows with special code kit 550008. - Plant to plant spacing:
Adjustable from 14 cm to 50 cm/6″-20″ standard (from 31 cm to 82 cm/12″-32″ optional).
Adjustable from 14 cm to 50 cm/6″-20″ with Rapid Shift (from 26 cm to 81 cm/10″-32″ optional). - Transmission: mechanical with drive wheels and hexagonal bar (no PTO).
- Indicative production: up to 3000/4000 plants/hour per operator.
- Driving System: Driven by tyred driving wheels.
- Rotary Distributor: Six cups with opening bottoms for interplant spacings from 14 cm to 50 cm and over, on request.
- Standard Four-Bar Linkage: Every transplant unit.
- High Productivity: Available with a 12-hole distributor.
- Inter-Row Spacing: Minimum 50 cm, maximum 90 cm, and over on request.
- TEXDRIVE-DT Version:
- Suitable for inter-row spacings less than 50 cm, minimum 25 cm.
- Available in 3, 4, and 6 rows versions.
- Option for foldaway hydraulic frame (6 TPI).
- Production Capacity:
- 3500-4000 plants per hour per row.
- 6/7000 plants per hour with a 12-hole distributor.

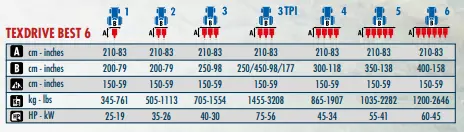

Detailed Specifications
| Feature | Details |
|---|---|
| Rows | 2 |
| Frame | Standard |
| Width (cm) | 200 |
| Driving Wheels | 1 |
| Category | A Cat. |
| Feature | Details |
|---|---|
| Rows | 3 |
| Frame | Reinforced |
| Width (cm) | 250 |
| Driving Wheels | 2 |
| Category | A Cat. |
| Feature | Details |
|---|---|
| Rows | 4 |
| Frame | Reinforced |
| Width (cm) | 300 |
| Driving Wheels | 2 |
| Category | A Cat. |
| Feature | Details |
|---|---|
| Rows | 5 |
| Frame | Reinforced |
| Width (cm) | 350 |
| Driving Wheels | 2 |
| Category | A Cat. |
| Feature | Details |
|---|---|
| Rows | 6 |
| Frame | Reinforced |
| Width (cm) | 400 |
| Driving Wheels | 2 |
| Category | A Cat. |
In Package
- Texdrive Best Transplanter Unit
- Standard or reinforced frame based on configuration
- Rotary distributor with 6 cups for accurate planting
- Comprehensive user manual
