Product Description

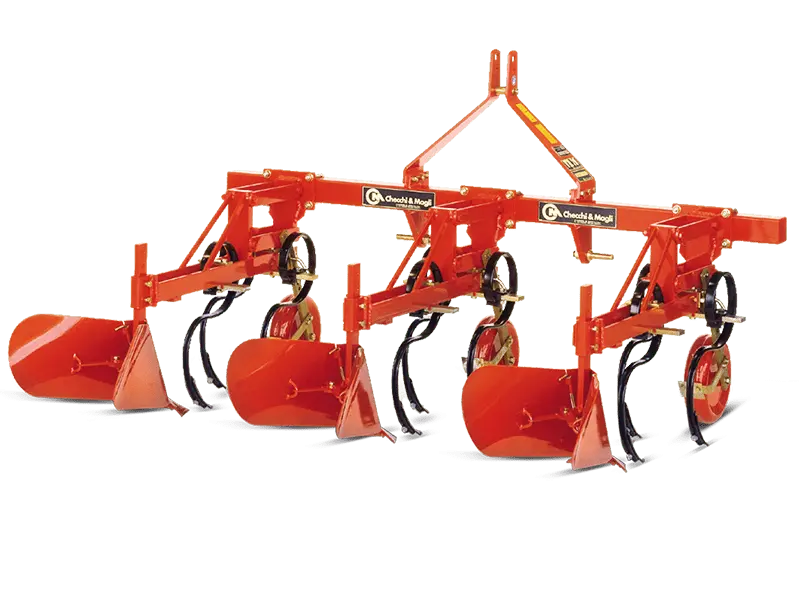

Chicchi & Magli Vibroridger VR76 | 2-5 Rows | 59″-138″ Frame Width | 20-35HP For Tractor
Included Options:
- Drip Tape Dispenser: Enhances irrigation efficiency during ridging.
- Microgranulator: Enables precise application of granulated fertilizers (2-5 rows).
- Fertilizer Attachment: Continuous fertilizer distribution system for 2 to 5 rows.
- Hydraulic Folding Frame: Available for VR76 TPI models for easy transportation.
- Custom Ridger Parts: Discs or ploughshares tailored to soil type and application.
DESCRIPTION
The Checchi & Magli Vibroridger VR76 is designed to deliver exceptional efficiency during the ridging phase of potato cultivation. Capable of accommodating 2 to 5 rows, it ensures precision and adaptability for various soil conditions. The VR76 is available in EXPORT and STANDARD models, each tailored for different terrain types, offering unparalleled flexibility.
Equipped with independent modular units, vibrating springs, and depth control, the VR76 is more than just a ridger. It can be configured for ridging, weeding, or cultivating, making it an indispensable tool for modern agriculture. Whether you’re preparing firm soil with the EXPORT model or sandy soil with the STANDARD model, the Vibroridger VR76 is built to excel.
Key Features
- Multi-Functionality: Ideal for ridging, weeding, and cultivating between rows.
- Customizable Frames: Supports manual or hydraulic folding frame options for 2 to 5 rows.

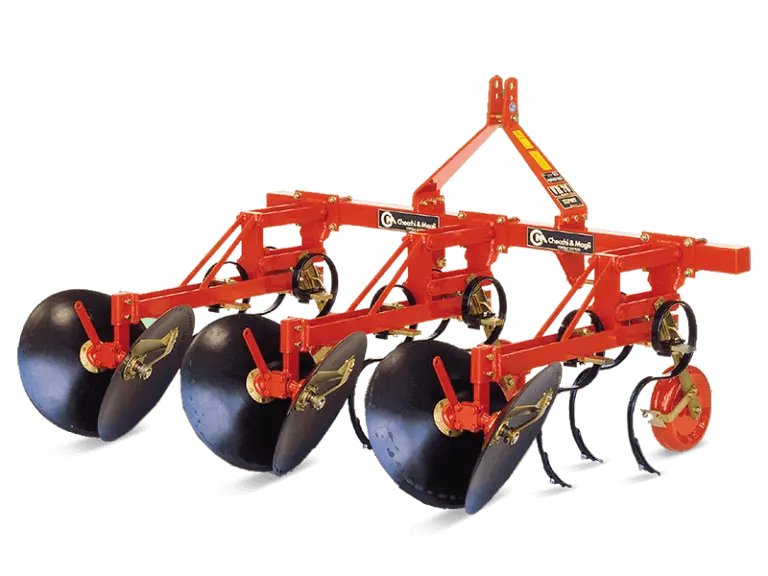

- Dual Models: EXPORT model with 20″ disc ridgers for firm soil; STANDARD model with ploughshare ridgers for sandy soil.
- Independent Units: Modular units with vibrating springs and depth control ensure superior soil adaptation.
- Compact Design: Disassembled ridger parts enable use for weeding between rows.
- Adjustable Spacing: Inter-row spacing adjustable from 18″ to 35″.
- Enhanced Durability: Built with high-quality materials for long-lasting performance.
- Depth Precision: Equipped with depth wheels for accurate furrowing.

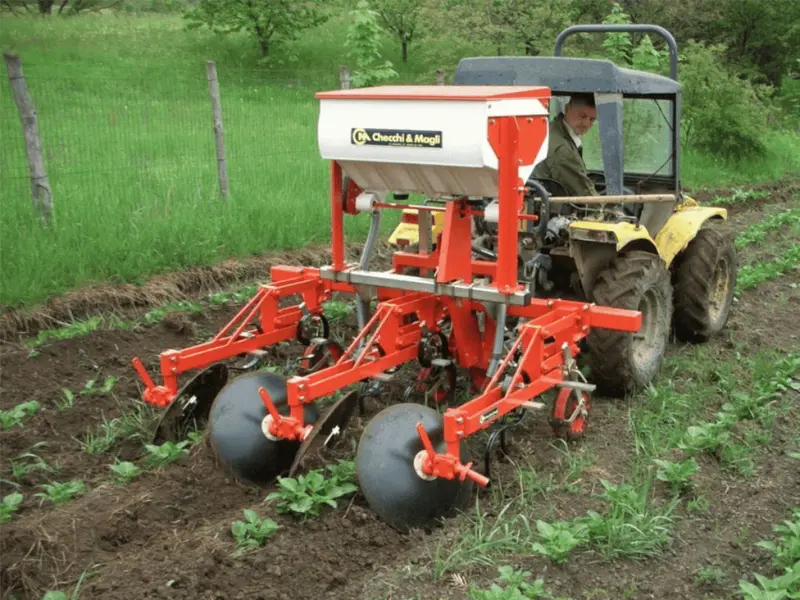

- Microgranulator & Fertilizer Options: Supports continuous distribution attachments.
- Efficient Operation: Optimized for tractors with 20-35 HP.
Detailed Specifications
| Feature | Details |
|---|---|
| Disk Ridger Diameter | 20″ (EXPORT model) |
| Frame Width | 59″-138″ |
| Weight Range | 452-1,146 lbs |
| Power Requirement | 20-35 HP |
| Inter-Row Spacing | 18″-35″ |
| Ridger Parts | EXPORT: Discs, STANDARD: Ploughshares |
Configurations
| Configuration | Details |
|---|---|
| VR76 Export | Frame Width: 59″ (150 cm), Weight: 1,014 lbs, Power: 30-22 HP |
| Standard | Frame Width: 59″ (150 cm), Weight: 573 lbs, Power: 20-15 HP |
| VR76 TPI | Frame Width: 79″ (200 cm), Weight: 617 lbs, Power: 20-15 HP |
Frame Options
| Frame Options | Details |
|---|---|
| 2 Rows | Working Units: 3, Frame Type: Fixed frame |
| 1+2½ Rows | Working Units: 3, Frame Type: Fixed frame |
| 3 Rows | Working Units: 3, Frame Type: Fixed frame |
| 3+2½ Rows | Working Units: 5, Frame Type: Manual folding frame |
| 5 Rows | Working Units: 5, Frame Type: Manual folding frame |
| TPI Model | Working Units: 5, Frame Type: Hydraulic folding frame |
Inter-Row Spacing
| Inter-Row Spacing | Details |
|---|---|
| Export Model | Minimum: 24″, Maximum: 35″ |
| Standard Model | Minimum: 18″, Maximum: 35″ |
In Package:
- Vibroridger VR76 Unit (EXPORT or STANDARD model)
- Depth wheel for precise furrowing
- Disk ridger parts (EXPORT) or ploughshare ridger parts (STANDARD)
- Manual or hydraulic foldable frame (based on configuration)
