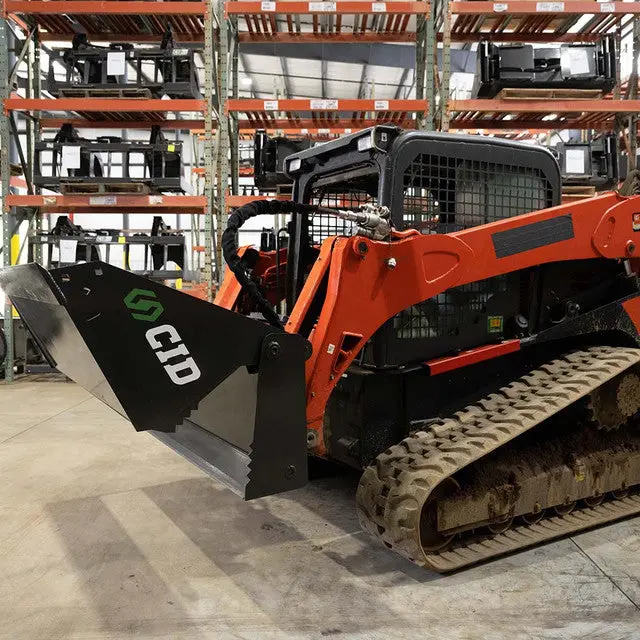

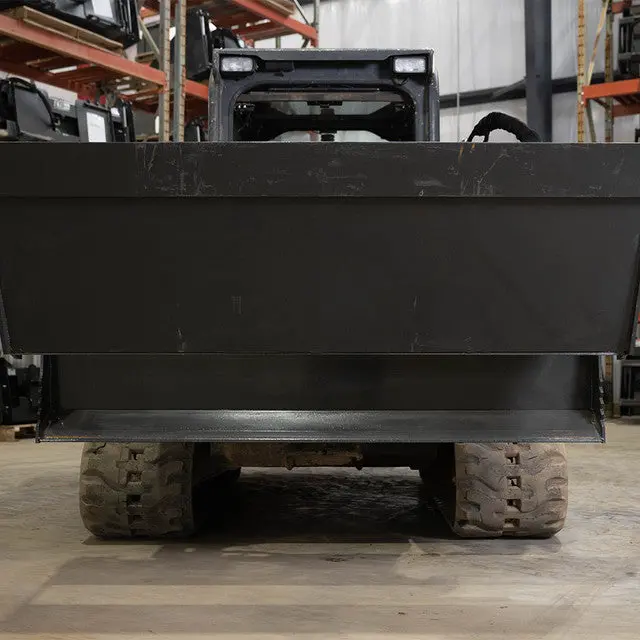

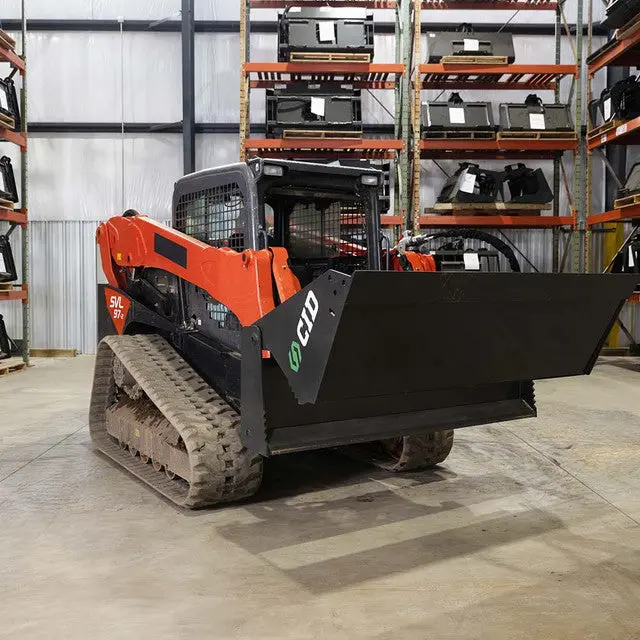

CID Heavy Duty 4-N-1 Bucket Attachment | HD4N1 Series | Width 63″, 66″ & 72″ | 12–18 GPM | For Skid Steers
DESCRIPTION
4 in 1 Buckets from CID are built extremely solid for rugged every day use. Choose between 3 sizes and add weld on teeth for extra bite. These are about the most versatile attachments you can put on a skid steer. Ideal for digging, loading, backfilling, dozing, grappling, and fine grading.
If you’re questioning just how “heavy duty” they are… They’re built with top-of-the-line steel, over-sized pins and bushings, with grease fittings at every pivot point, and every unit exceeds the lifting capacity of the machines it is designed for. Optional Bolt On Edge is available to add that much more durability to the main contact point. The cylinders are 2.5″ bore. The Cutting edge is 1/2″ x 6″. View photos for bucket dimensions.
All models are powder coated and hoses are wrapped in protective sleeves to ensure durability.
Key Features
- Construction: These buckets are built with top-quality steel, oversized pins, and bushings. Grease fittings at every pivot point ensure smooth operation.
- Versatility: They excel at various tasks, including digging, loading, backfilling, dozing, grappling, and fine grading.
- Cutting Edge: The cutting edge measures 1/2″ x 6″, providing durability and efficient material handling.

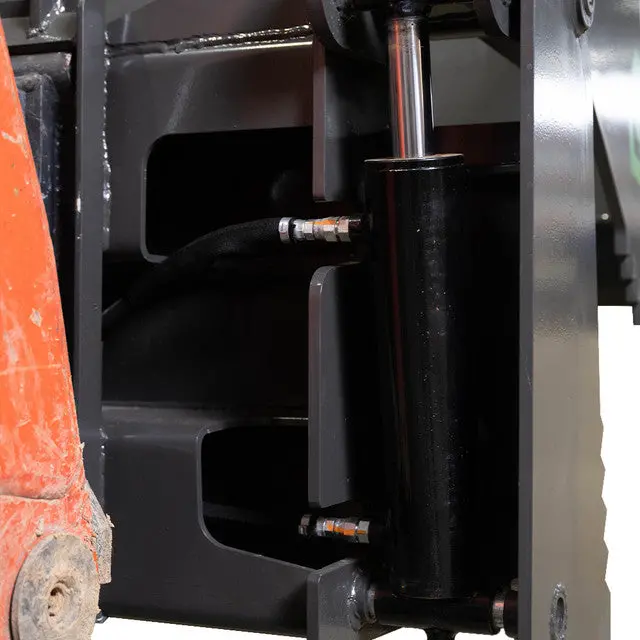

- Cylinder Size: The Standard Duty and Heavy Duty versions feature 2.5″ bore cylinders.
- Optional Bolt-On Edge: You can enhance durability by adding an optional bolt-on edge.
- Powder Coating and Protective Sleeves: All models come powder-coated, and hoses are wrapped in protective sleeves for longevity.
Detailed Specifications
63″ Grapple Rake
| Feature | Details |
|---|---|
| Weight (lbs.) | 725 |
| Width (in.) | 63 |
| Height (in.) | 29 |
| Depth (in.) | 26 |
| Open Width Max (in.) | 33 |
| Cylinder Diameter (in.) | 2.5 |
| Cutting Edge | 1/2″ × 6″ |
| Operating Pressure (PSI) | 3,000 |
| Hydraulic Flow (GPM) | 12–18 (typical range) |
66″ Grapple Rake
| Feature | Details |
|---|---|
| Weight (lbs.) | 810 |
| Width (in.) | 66 |
| Height (in.) | 29 |
| Depth (in.) | 26 |
| Open Width Max (in.) | 33 |
| Cylinder Diameter (in.) | 2.5 |
| Cutting Edge | 1/2″ × 6″ |
| Operating Pressure (PSI) | 3,000 |
| Hydraulic Flow (GPM) | 12–18 (typical range) |
72″ Grapple Rake
| Feature | Details |
|---|---|
| Weight (lbs.) | 840 |
| Width (in.) | 72 |
| Height (in.) | 29 |
| Depth (in.) | 26 |
| Open Width Max (in.) | 33 |
| Cylinder Diameter (in.) | 2.5 |
| Cutting Edge | 1/2″ × 6″ |
| Operating Pressure (PSI) | 3,000 |
| Hydraulic Flow (GPM) | 12–18 (typical range) |
63″ Grapple Rake w/ Teeth
| Feature | Details |
|---|---|
| Weight (lbs.) | 829 |
| Width (in.) | 63 |
| Height (in.) | 29 |
| Depth (in.) | 26 |
| Open Width Max (in.) | 33 |
| Cylinder Diameter (in.) | 2.5 |
| Cutting Edge | 1/2″ × 6″ |
| Operating Pressure (PSI) | 3,000 |
| Hydraulic Flow (GPM) | 12–18 (typical range) |
66″ Grapple Rake w/ Teeth
| Feature | Details |
|---|---|
| Weight (lbs.) | 875 |
| Width (in.) | 66 |
| Height (in.) | 29 |
| Depth (in.) | 26 |
| Open Width Max (in.) | 33 |
| Cylinder Diameter (in.) | 2.5 |
| Cutting Edge | 1/2″ × 6″ |
| Operating Pressure (PSI) | 3,000 |
| Hydraulic Flow (GPM) | 12–18 (typical range) |
72″ Grapple Rake w/ Teeth
| Feature | Details |
|---|---|
| Weight (lbs.) | 895 |
| Width (in.) | 72 |
| Height (in.) | 29 |
| Depth (in.) | 26 |
| Open Width Max (in.) | 33 |
| Cylinder Diameter (in.) | 2.5 |
| Cutting Edge | 1/2″ × 6″ |
| Operating Pressure (PSI) | 3,000 |
| Hydraulic Flow (GPM) | 12–18 (typical range) |
