Product Description

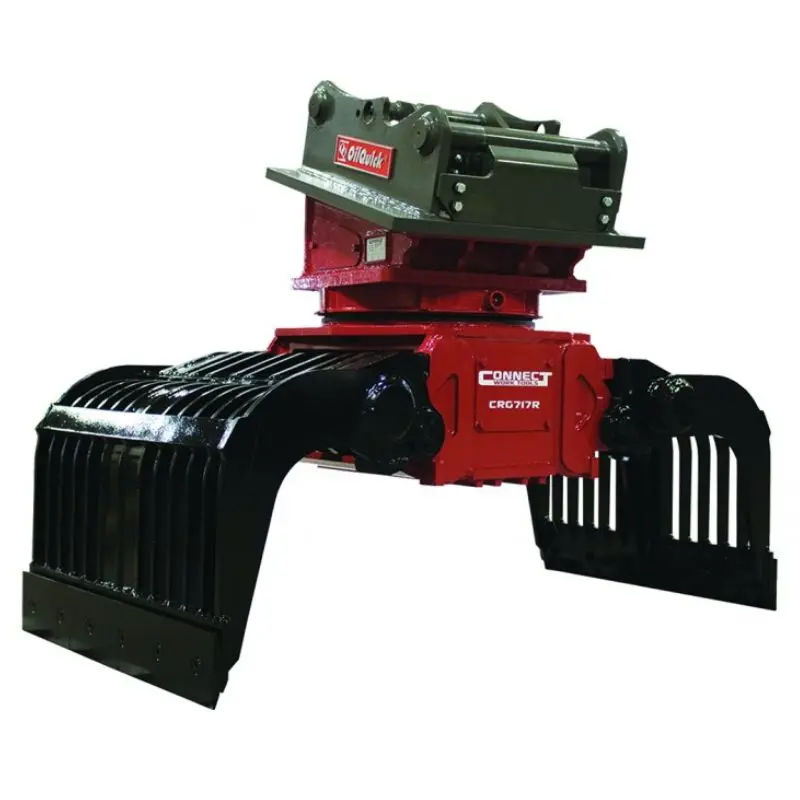

Connect Work Tools Rotating Excavator Grapple | Model CG10 To CG40 | Width 18.8″ To 52.1″ | 16 To 55 GPM | 5 To 50 Ton | For Excavators
DESCRIPTION
The Connect Work Tools Rotating Excavator Grapple is engineered for professionals who demand precision, power, and durability in material handling. Designed with advanced 360-degree hydraulic rotation, this grapple gives operators full control to grab, sort, and place materials from any angle maximizing efficiency in tight or complex job sites.
Built for rugged performance, the grapple features fully protected hydraulic cylinders that reduce downtime and extend equipment life, even in harsh working conditions. Its bolt-on reversible cutting edges ensure long-lasting performance and easy maintenance, allowing you to quickly reverse worn edges and continue working without interruption.
With five models (CG10–CG40) available, this attachment fits excavators ranging from 5 to 50 tons, making it a versatile solution for contractors across industries. Whether you’re tackling demolition debris, storm cleanup, recycling operations, or land clearing, this grapple delivers unmatched reliability and productivity.
Optimized for strength, control, and adaptability, the Connect Work Tools grapple is the ideal attachment for boosting jobsite efficiency while minimizing maintenance costs.
Key Features
- 360° Hydraulic Rotation Control: Experience unmatched precision with full 360-degree rotation for efficient positioning and handling.
- Heavy-Duty Steel Construction Build: High-strength steel frame ensures durability in demanding demolition and land clearing tasks.
- Protected Hydraulic Cylinder Design: Shielded cylinders reduce damage risk and ensure reliable long-term performance.
- Reversible Bolt-On Cutting Edges: Extend lifespan and maintain performance with easily reversible cutting edges.
- Multi-Model Excavator Compatibility: Fits excavators from 5 to 50 tons across CG10–CG40 models.
- Optimized Grapple Jaw Geometry: Provides strong grip and secure handling of logs, scrap, and debris.
- High-Capacity Material Handling: Handles 7.1–40.1 ft³ material volume for increased productivity.
- Wide Jaw Opening Range: Opens 63–84 inches for handling large and irregular materials.
- Efficient Hydraulic Flow Range: Operates within 16–55 GPM for smooth, responsive performance.
- Versatile Application Performance: Ideal for demolition, recycling, landscaping, and road maintenance.
- Enhanced Operator Productivity: Reduces repositioning and increases efficiency on job sites.
- Precision Sorting Capability: Allows accurate sorting of materials for recycling operations.
- Low Maintenance Design Efficiency: Durable components reduce service needs and downtime.
- Secure Mounting System Included: Includes mounting bracket and pins for quick installation.
Detailed Specifications
| Specification | CG10 | CG15 |
|---|---|---|
| Excavator Compatibility (Tons) | 5–9 Tons | 9–19 Tons |
| Working Weight (lbs) | 1,080 lbs | 2,340 lbs |
| Carrier Weight (lbs) | 10,000–18,000 lbs | 18,000–38,000 lbs |
| Capacity (ft³) | 7.1 ft³ | 14.2 ft³ |
| Hydraulic Flow (GPM) | 16 GPM | 21 GPM |
| Jaw Width Closed (in) | 38 in | 42 in |
| Max Jaw Opening (in) | 63 in | 65 in |
| Height Closed (in) | 40 in | 50 in |
| Height Opened (in) | 35 in | 44 in |
| Grapple Width (in) | 18.8 in | 33.5 in |
| Rotation Type | 360° Hydraulic | 360° Hydraulic |
| Cutting Edge Type | Reversible Bolt-On | Reversible Bolt-On |
| Cylinder Protection | Fully Guarded | Fully Guarded |
| Specification | CG22 | CG30 |
|---|---|---|
| Excavator Compatibility (Tons) | 19–30 Tons | 30–42 Tons |
| Working Weight (lbs) | 3,420 lbs | 4,800 lbs |
| Carrier Weight (lbs) | 38,000–60,000 lbs | 60,000–85,000 lbs |
| Capacity (ft³) | 24.7 ft³ | 35.3 ft³ |
| Hydraulic Flow (GPM) | 26 GPM | 40 GPM |
| Jaw Width Closed (in) | 48 in | 58 in |
| Max Jaw Opening (in) | 78 in | 80 in |
| Height Closed (in) | 55 in | 58 in |
| Height Opened (in) | 49 in | 65 in |
| Grapple Width (in) | 41.3 in | 43.9 in |
| Rotation Type | 360° Hydraulic | 360° Hydraulic |
| Cutting Edge Type | Reversible Bolt-On | Reversible Bolt-On |
| Cylinder Protection | Fully Guarded | Fully Guarded |
| Specification | CG40 |
|---|---|
| Excavator Compatibility (Tons) | 42–50 Tons |
| Working Weight (lbs) | 5,200 lbs |
| Carrier Weight (lbs) | 85,000–100,000 lbs |
| Capacity (ft³) | 40.1 ft³ |
| Hydraulic Flow (GPM) | 55 GPM |
| Jaw Width Closed (in) | 62 in |
| Max Jaw Opening (in) | 84 in |
| Height Closed (in) | 66 in |
| Height Opened (in) | 58 in |
| Grapple Width (in) | 52.1 in |
| Rotation Type | 360° Hydraulic |
| Cutting Edge Type | Reversible Bolt-On |
| Cylinder Protection | Fully Guarded |
