Erskine 3-Point PTO Rear Pull Snow-Blower | Model RP-620, RP-725, & RP-825 | Width 60″, 78″ & 90″ inches | Horsepower Range 20-75 HP | For Tractors
DESCRIPTION

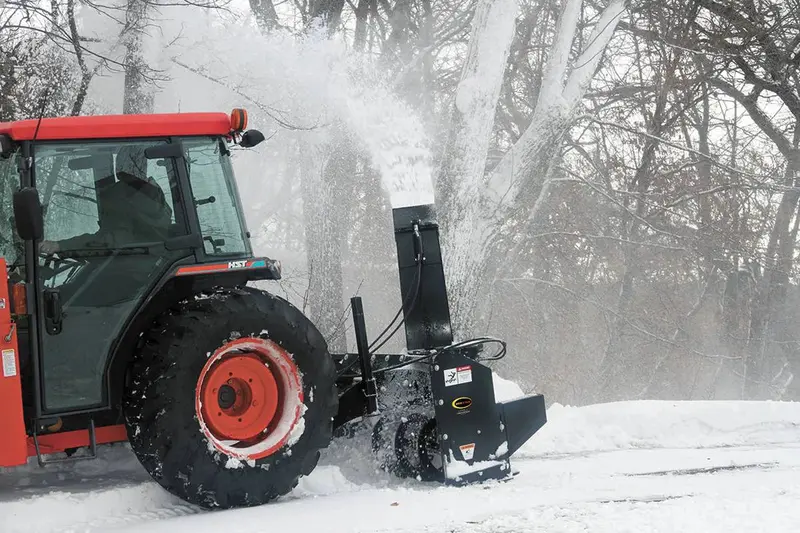

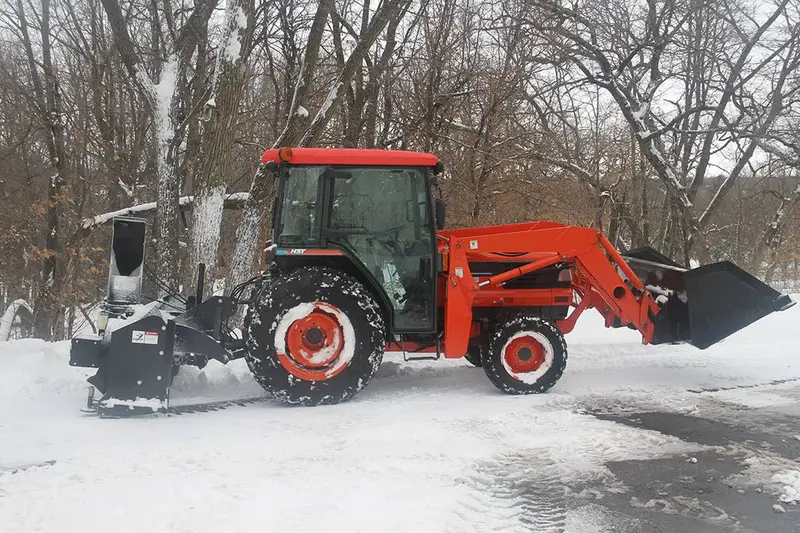

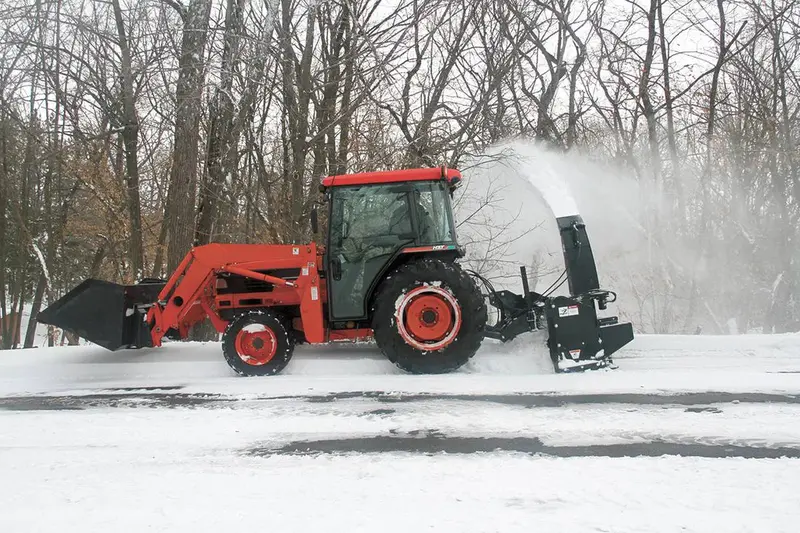

The Rear Pull PTO Snowblower offers the convenience of forward driving while clearing snow, which is especially beneficial for comfort and ease of use. This snowblower also allows you to keep your tractor’s front loader attached, providing added flexibility to handle additional tasks without needing to remove attachments.
Equipped with high lift capability, the 3-point hitch provides excellent maneuverability through deep snow drifts. The 2-stage blower is designed to gather and throw snow efficiently, while optional hydraulic chute rotation and deflector options ensure controlled snow discharge for efficient clearing, even in heavy winter conditions.
Key Features
- Forward Driving: Clear snow while driving forward for convenience.
- 270° Chute Rotation: Offers extensive control over snow discharge direction.

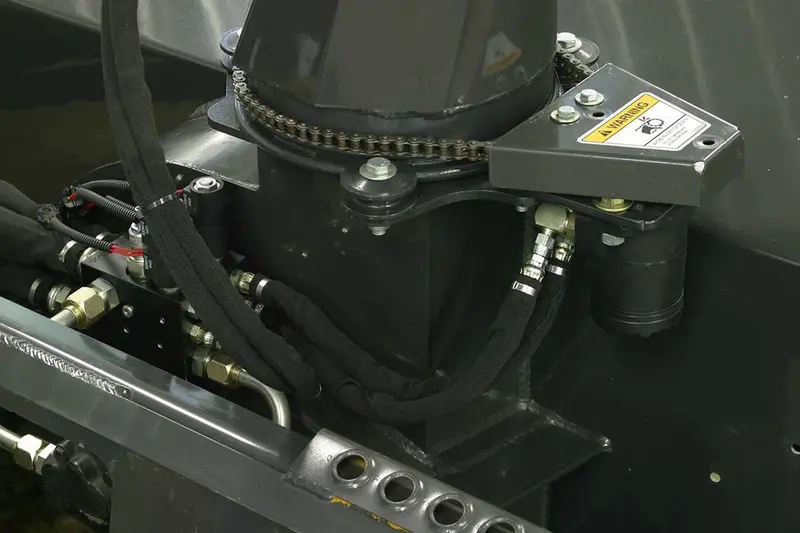

- Hydraulic Chute Rotation: Optional feature; standard is manual hand crank.
- Fan Sizes: Available with 20” or 24” fan diameters for various power needs.
- Hydraulic Deflector: Optional for precise snow discharge control.
- Wide HP Range: Compatible with tractors from 20-75 HP.
- Adjustable Skid Shoes: Replaceable and adjustable skid shoes to adapt to terrain.
- Reversible Cutting Edge: Extends blade life with a durable 5/8” x 6” edge.
- Reverse Operation Capability: Drive forward, but switch to reverse for deep drifts.
- Heavy-Duty Build: Built with a robust moldboard and durable materials.
Detailed Specifications
| Feature | Model 620RP | Model 725RP | Model 825RP |
|---|---|---|---|
| Part Number | 920100 | 920102 | 920104 |
| Operating Weight | 840 lbs | 1,075 lbs | 1,150 lbs |
| Shipping Weight | 920 lbs | 1,175 lbs | 1,250 lbs |
| Width of Cut | 60 inches | 78 inches (with wings) | 90 inches (with wings) |
| Cutting Height | 29 inches | 33 inches | 33 inches |
| Auger Diameter | 16 inches | 16 inches | 16 inches |
| Fan Diameter | 20 inches | 24 inches | 24 inches |
| Discharge Chute | 270° Manual | 270° Manual | 270° Manual |
| PTO Speed | 540 RPM | 540 RPM | 540 RPM |
| Casting Distance | Up to 30 feet | Up to 35 feet | Up to 35 feet |
| PTO HP Range | 20-35 HP | 30-55 HP | 40-75 HP |
| Driveline Series | 14 | 35 | 35 |
| Cutting Edge | 5/8” x 6” Reversible | 5/8” x 6” Reversible | 5/8” x 6” Reversible |
| Skid Shoes | Adjustable/Replaceable | Adjustable/Replaceable | Adjustable/Replaceable |
| Hitch Category | Cat. I | Cat. I | Cat. I |
| Rear Blade (optional) | Aux ports needed | Aux ports needed | Aux ports needed |
| Rear Blade Operating Weight | 165 lbs | 165 lbs | 165 lbs |
| Cylinders | 2″ x 4″ (2) | 2″ x 4″ (2) | 2″ x 4″ (2) |
| Moldboard Steel | .375″ Grade 50 Steel | .375″ Grade 50 Steel | .375″ Grade 50 Steel |
| Marker Rods | Included | Included | Included |
| Hoses and Couplers | Included | Included | Included |
