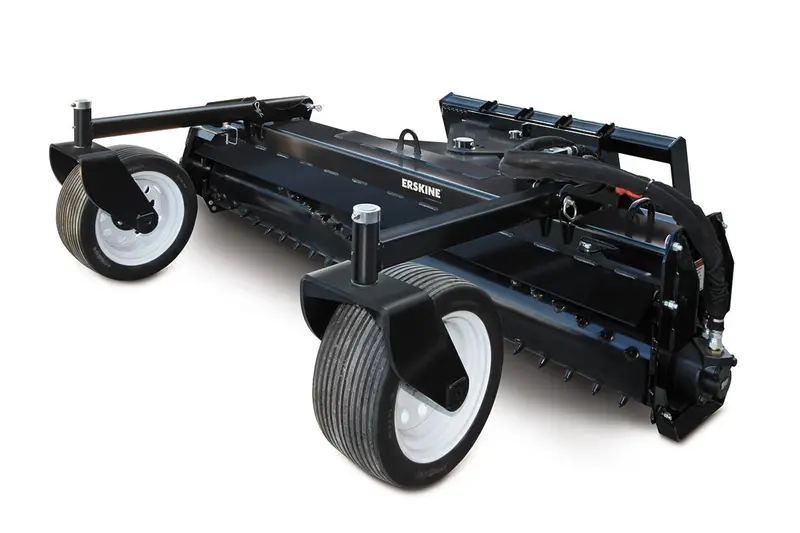

Erskine Industrial Soil Conditioner | FSC Series | Rotor Width 72″, 84″ & 96″ | 15 – 41 GPM | For Skid Steers
DESCRIPTION

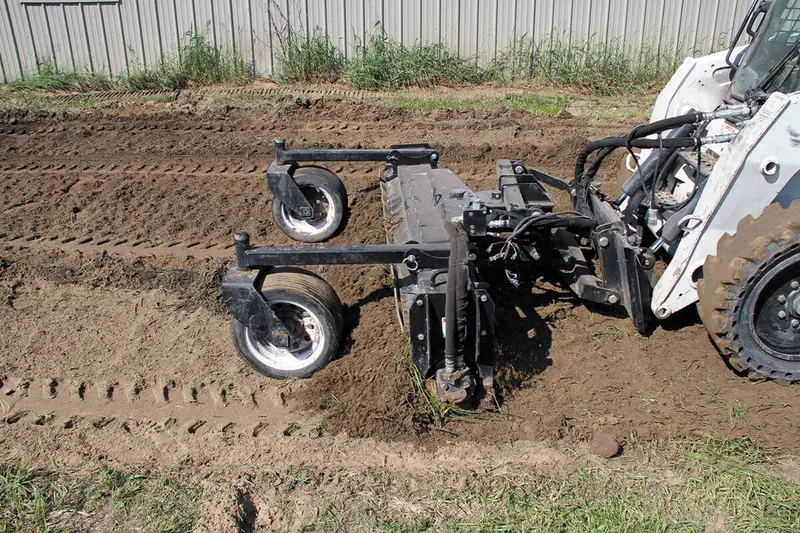

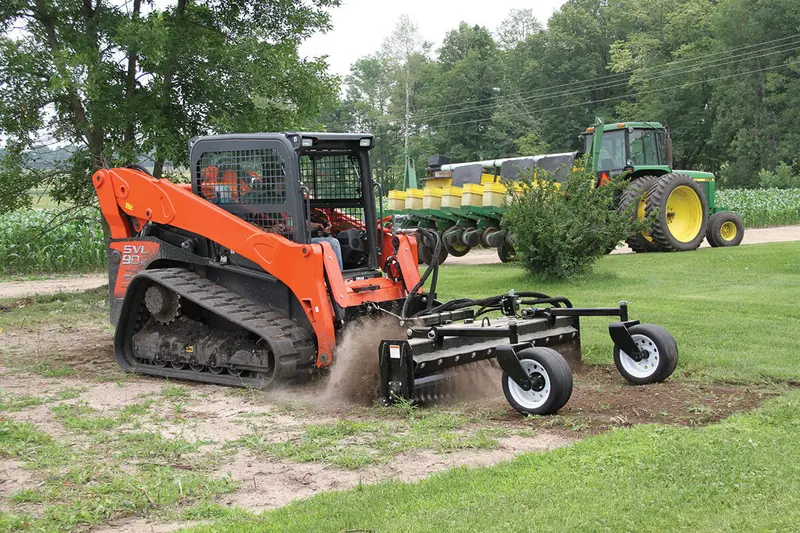

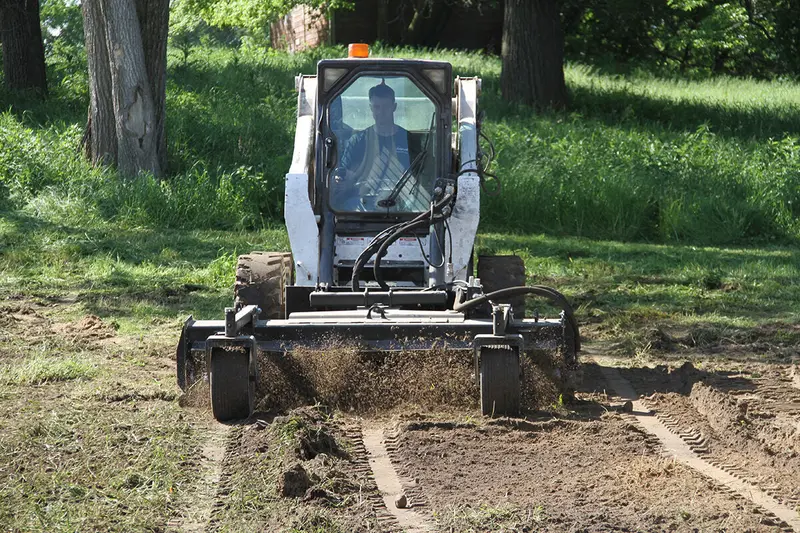

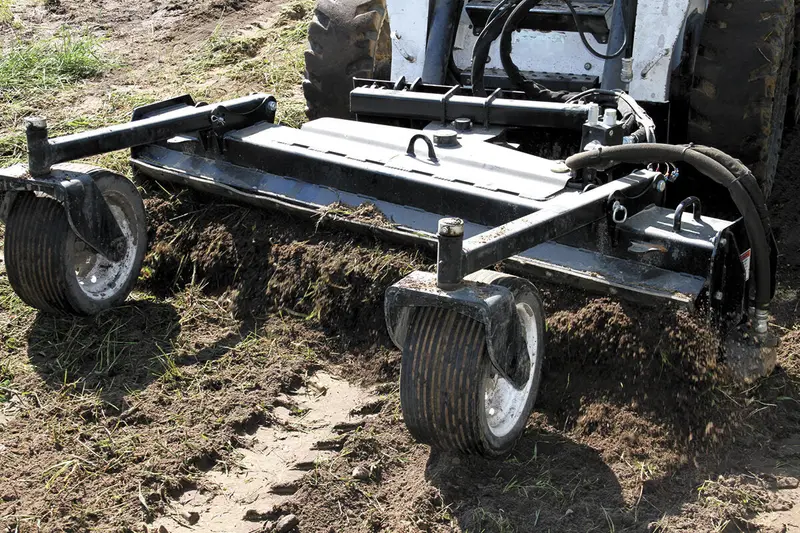

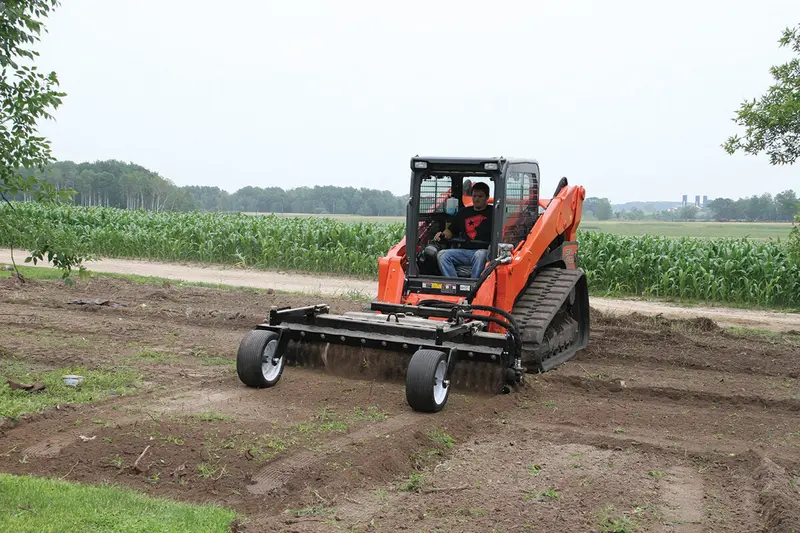

The Industrial Soil Conditioner is designed for professional ground preparation and finishing. It features a floating connection that automatically levels the unit as it follows ground contours, allowing consistent results across uneven surfaces. The attachment rakes stones and debris to either side or straight ahead for efficient collection.
A large-diameter rotor with aggressive teeth pulverizes soil while in motion, enabling higher ground speeds. The counter-rotating rotor moves soil forward during tilling, allowing low spots to be filled and high spots to be reduced in a single pass. The unit rakes and tills up to 4 inches deep, separating rocks, breaking up sod, and eliminating dirt clods to produce a uniform seedbed.
Key Features

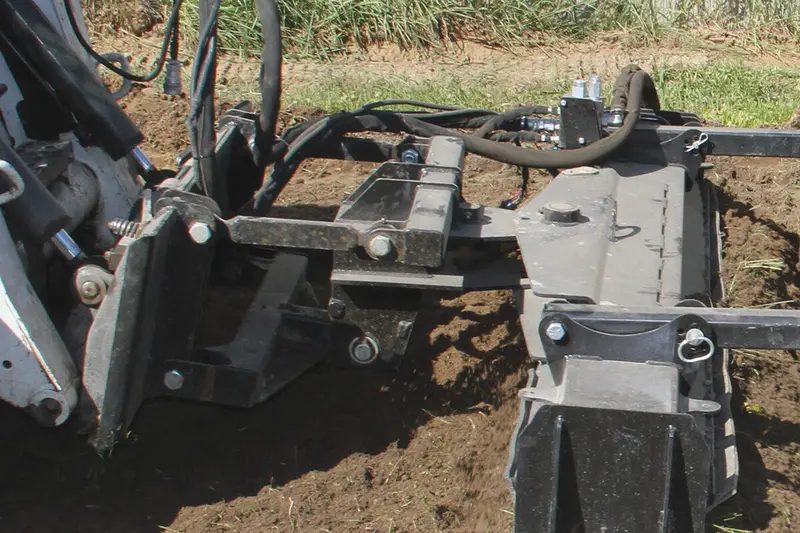

- Floating Leveling Connection; Automatically follows ground contours for consistent surface leveling
- Direct-Drive Rotor System; 10-inch large-diameter rotor for efficient soil pulverization
- Counter-Rotating Rotor Action; Moves soil forward while tilling to fill low spots and cut high spots in one pass
- Aggressive Tilling Depth; Rakes and tills soil up to 4 inches deep

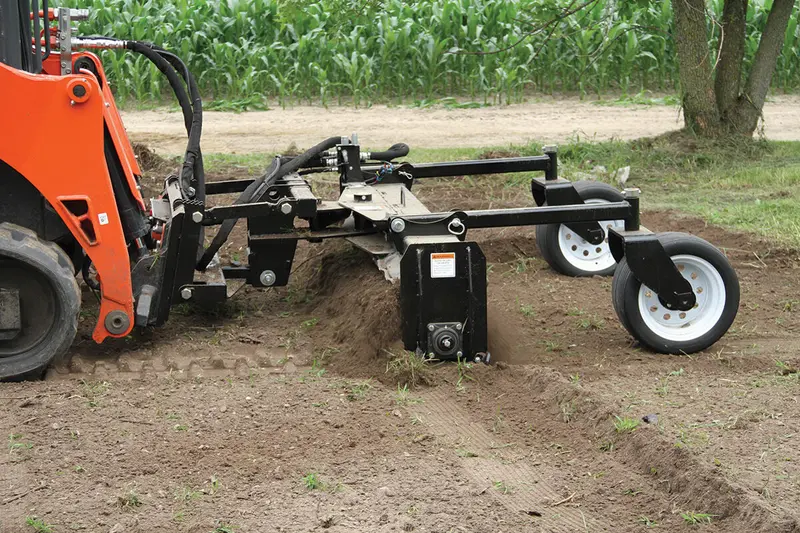

- Debris & Stone Raking; Rakes material left, right, or straight ahead for easy collection

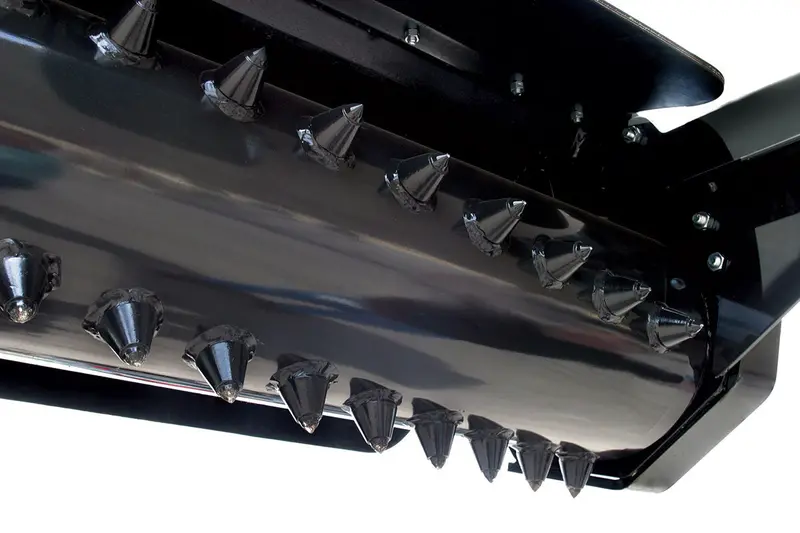

- Tungsten Carbide Teeth; Durable carbide-tipped teeth for sod tearing and clod elimination
- Manual Angling Capability; Up to 25° manual angling for controlled material direction
- Power Angling Option; Hydraulic angling available for in-cab adjustment

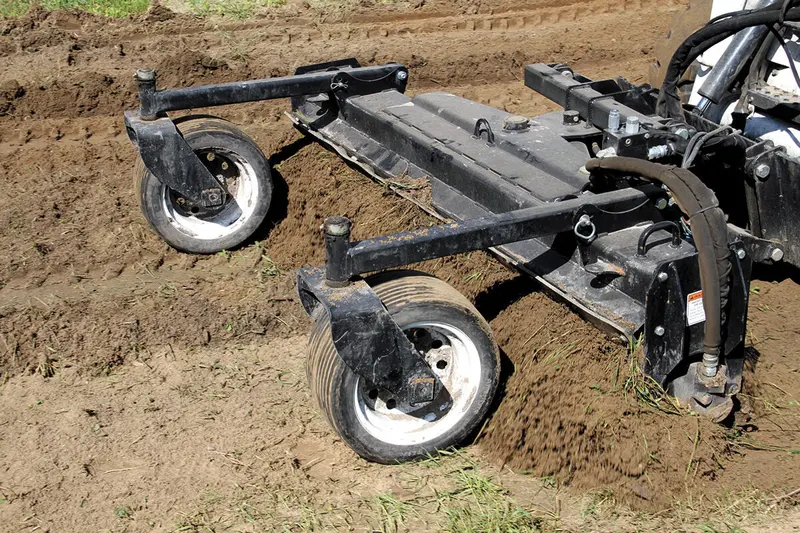

- Heavy-Duty Tire Support; 18″ × 8.5″ solid rubber tires for stability and durability
- Optional Box End Plates; Wing Kit available for improved material containment
Detailed Specifications
FSC72
| Specification | Details |
|---|---|
| Model | FSC72 |
| Part Number | 900534 |
| Rotor Width | 72” |
| Overall Width | 79.5” |
| Angling | Manual 25° |
| Angled Rotor Width | 65.25” |
| Wheels/Tires | 18″ × 8.5″ |
| Material | Solid Rubber |
| Teeth | 88 Carbide Tipped |
| Recommended Hyd. Flow | 15 – 41 GPM |
| Mounting Plate | Universal |
| Operating Weight | 1,150 lb. |
FSC84
| Specification | Details |
|---|---|
| Model | FSC84 |
| Part Number | 900536 |
| Rotor Width | 84” |
| Overall Width | 91.5” |
| Angling | Manual 25° |
| Angled Rotor Width | 76” |
| Wheels/Tires | 18″ × 8.5″ |
| Material | Solid Rubber |
| Teeth | 104 Carbide Tipped |
| Recommended Hyd. Flow | 15 – 41 GPM |
| Mounting Plate | Universal |
| Operating Weight | 1,250 lb. |
FSC96
| Specification | Details |
|---|---|
| Model | FSC96 |
| Part Number | 901382 |
| Rotor Width | 96” |
| Overall Width | 103.5” |
| Angling | Manual 25° |
| Angled Rotor Width | 87” |
| Wheels/Tires | 18″ × 8.5″ |
| Material | Solid Rubber |
| Teeth | 120 Carbide Tipped |
| Recommended Hyd. Flow | 15 – 41 GPM |
| Mounting Plate | Universal |
| Operating Weight | 1,350 lb. |
