Product Description

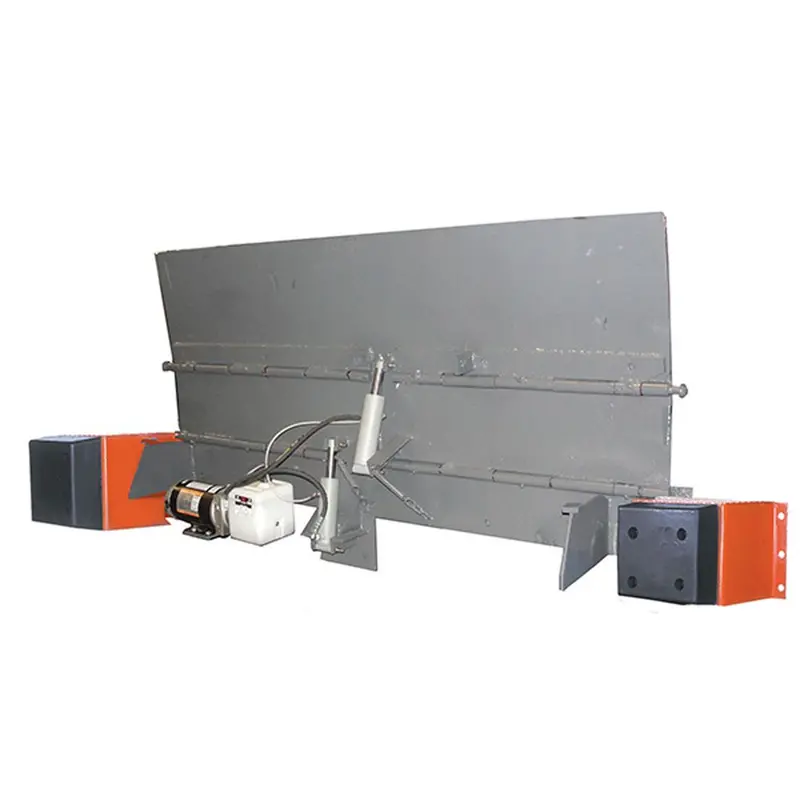

Guardian Industrial Products Hydraulic Edge of Dock Leveler | Model HED7820 | 78″ W | 20,000 lb Capacity | For Conventional Trailer Dock
DESCRIPTION
The Guardian Industrial Products Hydraulic Edge of Dock Leveler is a powerful, permanently mounted dock solution engineered to streamline loading and unloading at high-volume facilities. Built for conventional trailer service, this 78-inch wide hydraulic dock leveler eliminates the lifting, repositioning, and safety concerns of traditional dock boards delivering faster dock cycles and safer material handling.
Manufactured in the USA from heavy-duty structural steel, this leveler boasts an impressive 20,000 lb load capacity, making it ideal for forklifts, pallet jacks, and industrial carts. Its hydraulic operation with automated return ensures smooth deck and lip movement, while solid-state controls allow easy, one-person activation. When the trailer departs, the unit automatically returns to the stored position for immediate dock readiness.
Designed with productivity and protection in mind, the deck and lip are constructed from 55,000 lb minimum yield steel tread plate, reinforced with formed steel gussets for added strength in the stored position. With a 5-inch above and below dock operating range and 12.75-inch minimum lip projection, it bridges gaps reliably across varied trailer heights.
Integrated rubber dock bumpers, a fully enclosed industrial power pack, and compliance with OSHA and ANSI standards make this Guardian edge of dock leveler a dependable, long-term investment for warehouses, distribution centers, and manufacturing facilities seeking efficiency, durability, and operator safety.
Key Features
- Heavy-Duty Hydraulic Design delivers smooth, quiet lifting and lowering under full loads, improving dock efficiency while reducing operator fatigue during frequent trailer changeovers.
- 20,000 lb Load Capacity supports forklifts, pallet jacks, and dense freight with confidence, making it ideal for high-traffic commercial and industrial loading docks.
- 78-Inch Wide Deck provides generous surface coverage for safer transitions between dock and trailer, minimizing gaps and improving vehicle alignment tolerance.
- Automated Return Function instantly lowers the deck to its stored position once the trailer departs, enhancing safety and speeding up dock turnover times.
- 55,000 lb Steel Tread Plate construction ensures exceptional durability, traction, and long service life even in demanding warehouse environments.
- Solid-State Control System allows simple, one-person rotary switch operation, reducing training time and ensuring consistent dock performance.
- 5-Inch Operating Range above and below dock level accommodates varying trailer heights for reliable loading in mixed-fleet operations.
- 12.75-Inch Lip Projection provides strong trailer engagement and stable bridging, improving safety during loading and unloading cycles.
- Enclosed Hydraulic Power Pack features a 4,000 PSI-capable pump, factory wired and tested for dependable industrial performance.
- Formed Steel Gussets add structural reinforcement in the stored position, increasing longevity and resistance to impact stress.
- Dual Dock Bumpers Included protect both the dock face and leveler from trailer impact, reducing facility maintenance costs.
- Forklift-Friendly Installation uses steel rivets at hinge points, allowing efficient installation without specialized lifting equipment.
- OSHA & ANSI Compliant design meets or exceeds MH14.1 performance standards, helping facilities maintain workplace safety compliance.
- Designed for Conventional Trailers ensures optimal performance in standard dock environments without over-engineering or unnecessary complexity.
- Proudly Made in the USA using premium materials and precision manufacturing for dependable quality and long-term reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Guardian Industrial Products |
| Model | HED7820 |
| Product Type | Hydraulic Edge of Dock Leveler |
| Width | 78 inches |
| Maximum Capacity | 20,000 lb |
| Material | Heavy-Duty Structural Steel |
| Deck & Lip Steel Rating | 55,000 lb Minimum Yield |
| Operating Range | 5 inches Above / Below Dock |
| Minimum Lip Projection | 12.75 inches |
| Overall Span | 27.75 inches |
| Hydraulic System | Enclosed Power Pack, 4,000 PSI Pump |
| Control Type | Solid-State Rotary Switch |
| Trailer Compatibility | Conventional Trailers |
| Safety Compliance | OSHA, ANSI MH14.1 |
| Country of Origin | Made in the USA |
