HLA 4-in-1 Skid Steer Bucket – SBFNO66 to SBFNO84, 66″–84″ Widths, 17.7 Cu. Ft. Heaped Capacity (12–18 GPM)

Description

Product Description

HLA Attachments | 4-in-1 Skid Steer Bucket | Models SBFNO66 To SBFNO84 | Widths 66″ To 84″ | Heaped Capacity Up To 17.7 cu.ft. | Hydraulic Flow Range 12-18 GPM |For Skid Steer

DESCRIPTION

Tackle every job with a single bucket. The HLA 4-in-1 Skid Steer Bucket Series is the multi-function tool every contractor, landscaper, and loader operator needs on-site. Designed to dig, doze, load, and clamp, this versatile clamshell bucket lets you handle more tasks without ever swapping attachments.

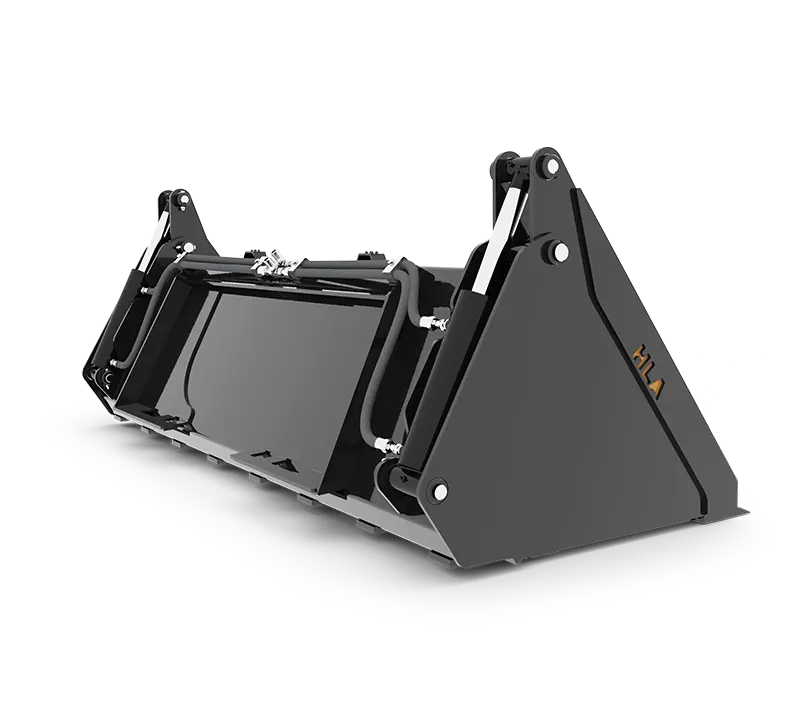

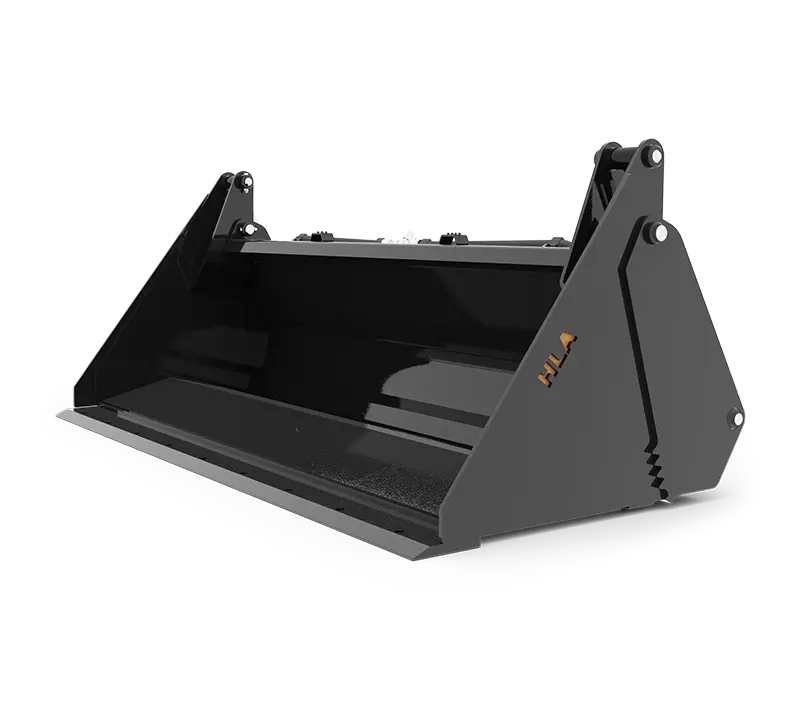

Constructed with 1/4″ high-strength steel, 3/8″ endplates, and a durable clam floor bottom, these buckets are built to endure years of rugged use. Each model includes powerful hydraulic cylinders and a universal skid steer quick attach plate, ensuring a tight, reliable fit on most machines.

From fine grading to material handling and site cleanup, the HLA 4-in-1 bucket simplifies your workflow while saving time and money. Choose from widths 66″ to 84″, and equip your skid steer with a tool that’s as tough and adaptable as you are.

Key Features

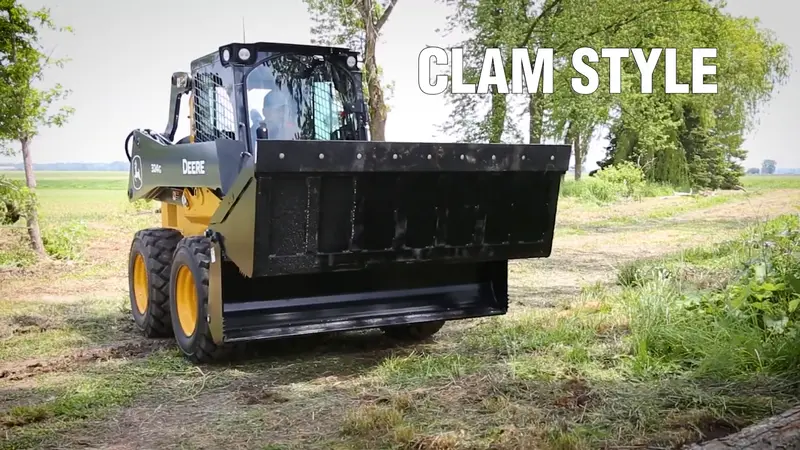

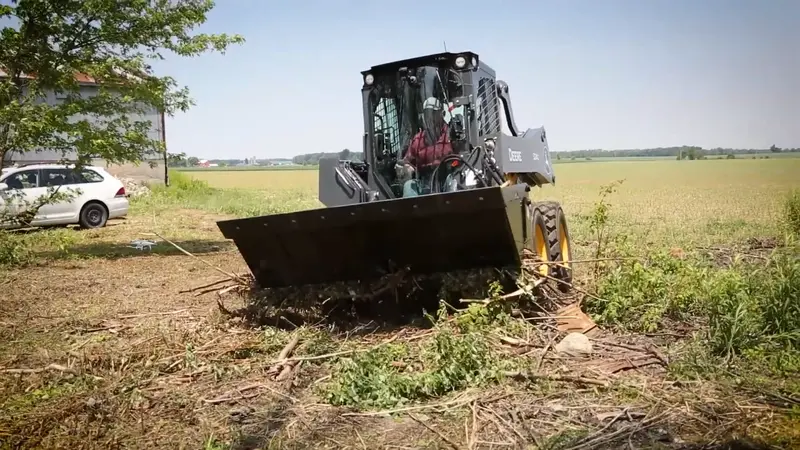

• 4-in-1 Functionality – Use as a standard bucket, dozer blade, grapple, or clamshell for backfilling and loading.
• Heavy-Duty Steel Construction – Built from ¼” steel with 3/8″ thick endplates and clam bottom floor for long-term durability.
• Hydraulic Cylinders Included – Strong clamping and smooth action for gripping logs, rocks, debris, and materials.
• Universal Quick Attach Mount – Compatible with most skid steer loaders for fast connection and seamless operation.
• Optimized Bucket Profile – 20″ tall and 27″ deep design delivers a balance of capacity and visibility for precise handling.
• High Heaped Capacity – Up to 17.7 cu.ft. of material handling power, ideal for dirt, gravel, mulch, and snow.
• Hydraulic Flow Range: 12–18 GPM — calibrated for standard skid steer systems; ensures smooth 4-in-1 clamshell operation with responsive control and minimal strain on hydraulics.

Detailed Specifications

Specification	4-in-1 Skid Steer Bucket SBFNO66	4-in-1 Skid Steer Bucket SBFNO72
Part #	SBFNO66-BO500	SBFNO72-BO500
Width	66″	72″
Struck Capacity	10.6 cu.ft.	11.6 cu.ft.
Heaped Capacity	12.8 cu.ft.	15.1 cu.ft.
Height	20″	20″
Depth	27″	27″
Weight (Approx.)	880 lbs	935 lbs
Construction	¼” shell, 3/8″ endplates, clam bottom	¼” shell, 3/8″ endplates, clam bottom
Mount Type	Universal Skid Steer Quick Attach	Universal Skid Steer Quick Attach

Specification	4-in-1 Skid Steer Bucket SBFNO78	4-in-1 Skid Steer Bucket SBFNO84
Part #	SBFNO78-BO500	SBFNO84-BO500
Width	78″	84″
Struck Capacity	12.5 cu.ft.	13.5 cu.ft.
Heaped Capacity	16.4 cu.ft.	17.7 cu.ft.
Height	20″	20″
Depth	27″	27″
Weight (Approx.)	980 lbs	1,040 lbs
Construction	¼” shell, 3/8″ endplates, clam bottom	¼” shell, 3/8″ endplates, clam bottom
Mount Type	Universal Skid Steer Quick Attach	Universal Skid Steer Quick Attach
