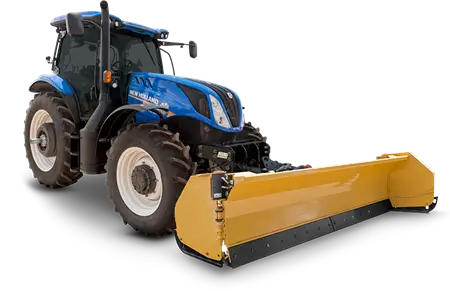

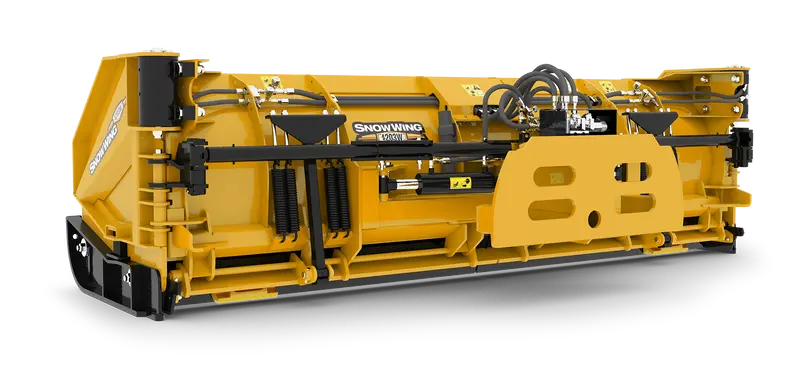

HLA Attachment Snow Wing Less Frame | Model 4203 Series | Width 8′, 9′, 10′, 12′ & 14′ Ft | Horsepower 80-150 HP | For Tractor
DESCRIPTION
Transform your snow removal operations with the HLA 4203 Snow Wing, the ultimate attachment for efficient and versatile snow clearing. Designed to deliver maximum performance and flexibility, this Snow Wing is available in multiple widths ranging from 8 feet to 20 feet, ensuring a solution for small to large-scale snow removal tasks.
The 4203 Snow Wing features independent hydraulic wings that operate from 0° to 180°, giving you the freedom to adjust to any snow removal situation. Whether you’re clearing tight spaces or tackling large snow drifts, the ability to switch between 8′ closed and 14′ to 20′ open widths ensures superior maneuverability and efficiency. The reversible spring trip cutting edge helps prevent damage to the blade while keeping it functioning at peak performance on uneven surfaces.
Perfectly suited for heavy-duty use, the 4203 Snow Wing is rated for machines with 80 – 150 HP, making it ideal for loaders, tractors, and other heavy equipment. Equipped with two hydraulic cylinders for 35° hydraulic angling and lateral float, this snow wing ensures precision control while offering crossover relief protection. Whether you’re clearing snow from roads, parking lots, or large properties, the HLA 4203 Snow Wing is built to deliver outstanding results, season after season.
Key Features
- Model: 4203 Series Mid-size snow wing engineered for tractors in the 80–150 HP range.
- Width Options: 8′, 9′, 10′, 12′, 14′ Multiple blade sizes available—select based on tractor class and clearing width.
- Edge Flex Technology Segmented cutting edge flexes with terrain—enhances surface contact and reduces wear.
- Frame: Not Included (Less Frame) Wing-only configuration—compatible with HLA frames or custom mounting setups.
- Horsepower Range: 80–150 HP Ideal for compact and mid-range tractors used in agricultural or municipal snow removal.
- Mounting Compatibility Supports 3PT hitch or loader mount systems (frame sold separately).
- Durable Build Heavy-gauge steel construction—resists corrosion, impact, and winter abrasion.
- Hydraulic Wing Control (Optional) Allows on-the-fly angle adjustments for efficient snow displacement.
- Use Case Designed for clearing snow from farm lanes, driveways, parking lots, and rural roads.
Detailed Specifications
| Specification | 8′ / 14′ Snow Wing | 9′ / 15′ Snow Wing | 10′ / 16′ Snow Wing |
|---|---|---|---|
| Part Number | SB4203W814LF | SB4203W915LF | SB4203W1016LF |
| Blade Width (Closed) | 8 ft | 9 ft | 10 ft |
| Blade Width (Open) | 14 ft | 15 ft | 16 ft |
| Hydraulic Angling | 35° (Right/Left) | 35° (Right/Left) | 35° (Right/Left) |
| Moldboard Height | 34″ | 34″ | 34″ |
| Wing Height | 36″ | 36″ | 36″ |
| Reversible Spring Trip Cutting Edge | Yes | Yes | Yes |
| Rated HP | 80 – 150 hp | 80 – 150 hp | 80 – 150 hp |
| Maximum Operating Weight | 25,000 lbs | 25,000 lbs | 25,000 lbs |
| Weight (Approx.) | 2,450 lbs | 2,610 lbs | 2,720 lbs |
| Mount Type | Frame/Mount Required | Frame/Mount Required | Frame/Mount Required |
| Specification | 12′ / 18′ Snow Wing | 14′ / 20′ Snow Wing |
|---|---|---|
| Part Number | SB4203W1218LF | SB4203W1420LF |
| Blade Width (Closed) | 12 ft | 14 ft |
| Blade Width (Open) | 18 ft | 20 ft |
| Hydraulic Angling | 35° (Right/Left) | 35° (Right/Left) |
| Moldboard Height | 34″ | 34″ |
| Wing Height | 36″ | 36″ |
| Reversible Spring Trip Cutting Edge | Yes | Yes |
| Rated HP | 80 – 150 hp | 80 – 150 hp |
| Maximum Operating Weight | 25,000 lbs | 25,000 lbs |
| Weight (Approx.) | 2,920 lbs | 3,170 lbs |
| Mount Type | Frame/Mount Required | Frame/Mount Required |
Manuals & Documents
4200 SNOW WING MANUAL
LOADER MOUNTS
HLA EDGE FLEX BROCHURE
HLA SNOW BROCHURE
