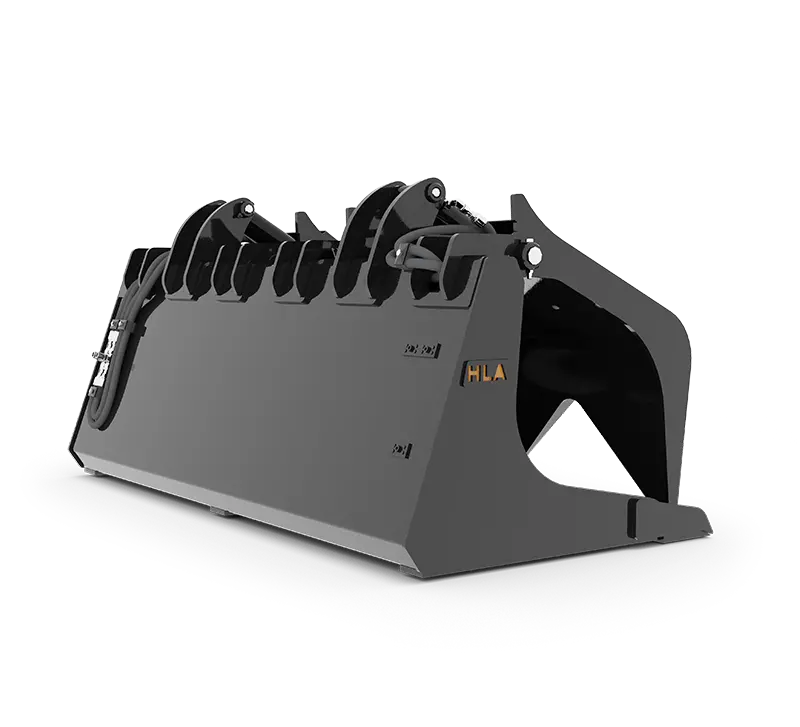

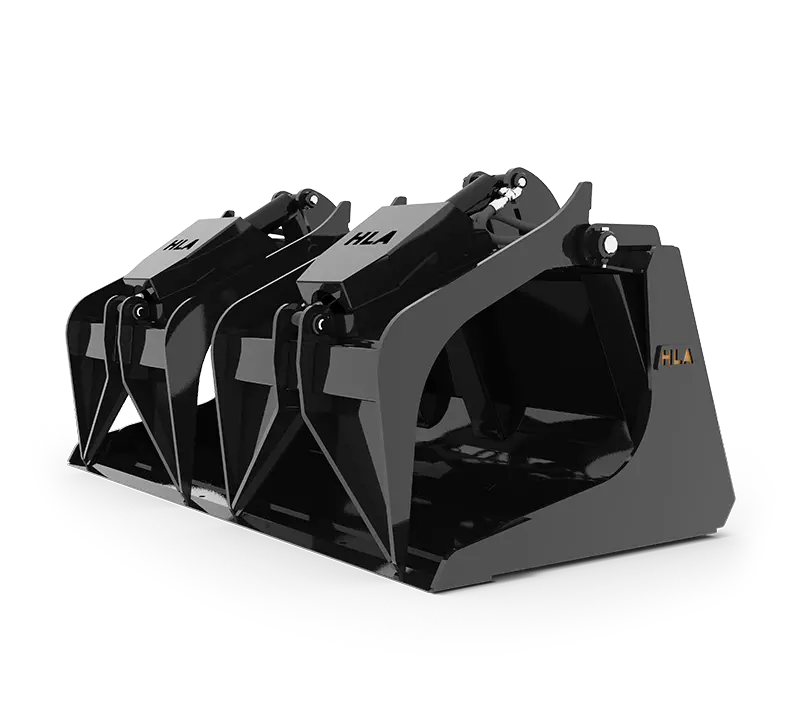

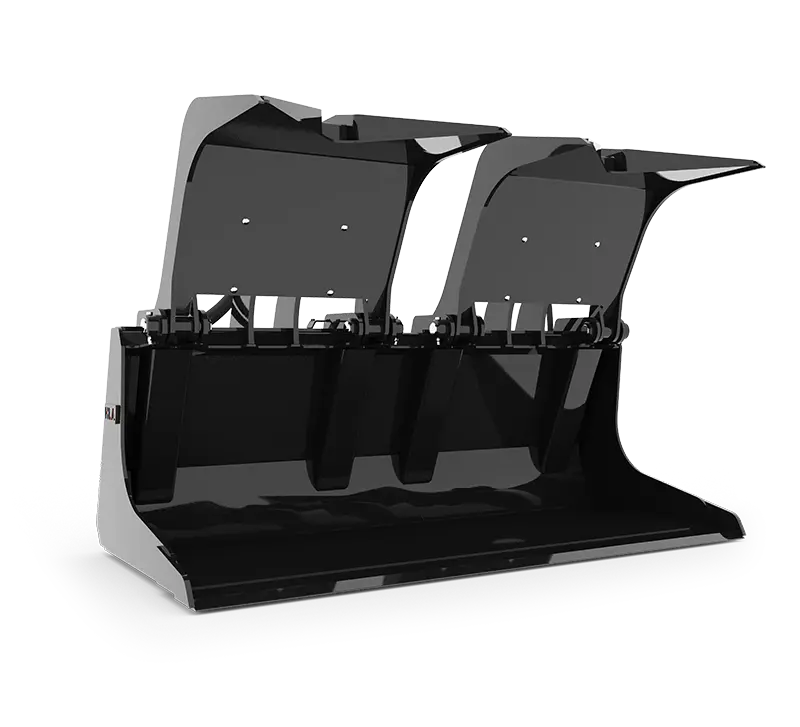

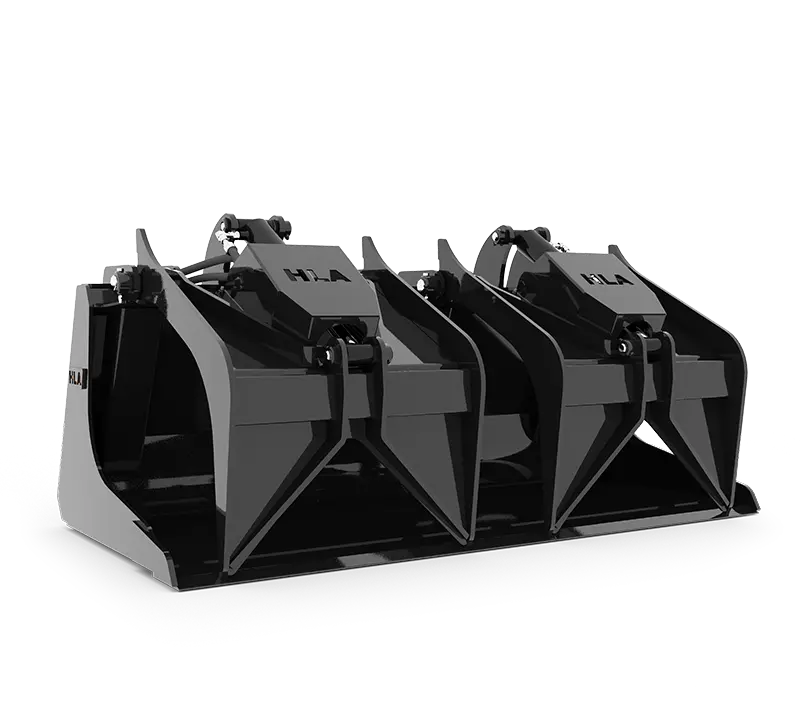

HLA Scrap Grapple Bucket for Skid Steer – 54″ to 78″ Width, No Mount Included

Description

Product Description

HLA Attachments Scrap Grapple Bucket Less Mount | Model 54″ to 78″ Bucket | For Skid Steer



DESCRIPTION

Conquer the toughest cleanup jobs with the HLA Scrap Grapple Bucket. Designed for contractors, landowners, and agricultural professionals, this heavy-duty grapple delivers unmatched versatility and brute strength. Whether you’re moving scrap metal, storm debris, brush, or bulky materials, the dual grapple arms with fully shielded cylinders ensure secure, even clamping across uneven loads.

Each model in the SGB Series is built with rugged, high-capacity construction and engineered to tackle abrasive, awkward, and oversized material with ease. With widths ranging from 54″ to 96″, and compatibility across major loader types, it’s the reliable, workhorse solution your operation needs.

Key Features

• Dual Independent Grapples Tackle uneven and odd-shaped loads securely with two individually controlled grapple arms.
• Heavy-Duty Build for Harsh Environments Built to perform in demolition, forestry, and waste management jobs where durability is critical.
• Protected Hydraulic Cylinders Fully shielded hydraulic cylinders prevent damage from debris and ensure longer service life.
• Versatile Mounting Options Compatible with Euro/Global, Skid Steer, John Deere, Kubota, Westendorf, Bush Hog, and more fits your equipment, not the other way around.
• Large Material Capacity Move more in less time with struck capacities up to 17.2 cu.ft. and heaped up to 22.5 cu.ft.
• Optimal Depth & Height 24″ depth and 31″ height make it easy to scoop, secure, and transport heavy loads.
• Application-Ready Ideal for scrap metal, construction debris, logs, brush, and waste great for contractors, farms, and land clearing.
• No Mount Included (Required Option) Customizable mounting ensures the perfect fit for your loader. Choose from multiple quick attach and pin-on options.

Detailed Specifications

Specification	SGB54	SGB60	SGB66
Model Width	54 inches	60 inches	66 inches
Overall Height	31 inches	31 inches	31 inches
Overall Depth	24 inches	24 inches	24 inches
Struck Capacity	11.9 cu. ft.	13.2 cu. ft.	14.5 cu. ft.
Heaped Capacity	15.3 cu. ft.	17.1 cu. ft.	18.9 cu. ft.
Approx. Weight	970 lbs	1015 lbs	1050 lbs
Grapple Arms	Dual Independent Arms	Dual Independent Arms	Dual Independent Arms
Hydraulic Cylinders	Cylinders Fully Protected	Cylinders Fully Protected	Cylinders Fully Protected
Mount Type Required	Selectable (Options Required)	Selectable (Options Required)	Selectable (Options Required)
Ideal For	Awkward / Abrasive Materials	Awkward / Abrasive Materials	Awkward / Abrasive Materials

Specification	SGB72	SGB78	SGB84
Model Width	72 inches	78 inches	84 inches
Overall Height	31 inches	31 inches	31 inches
Overall Depth	24 inches	24 inches	24 inches
Struck Capacity	15.9 cu. ft.	17.2 cu. ft.	18.6 cu. ft. (approx)
Heaped Capacity	20.7 cu. ft.	22.5 cu. ft.	24.0 cu. ft. (approx)
Approx. Weight	1090 lbs	1135 lbs	1175 lbs
Grapple Arms	Dual Independent Arms	Dual Independent Arms	Dual Independent Arms
Hydraulic Cylinders	Cylinders Fully Protected	Cylinders Fully Protected	Cylinders Fully Protected
Mount Type Required	Selectable (Options Required)	Selectable (Options Required)	Selectable (Options Required)
Ideal For	Awkward / Abrasive Materials	Awkward / Abrasive Materials	Awkward / Abrasive Materials
