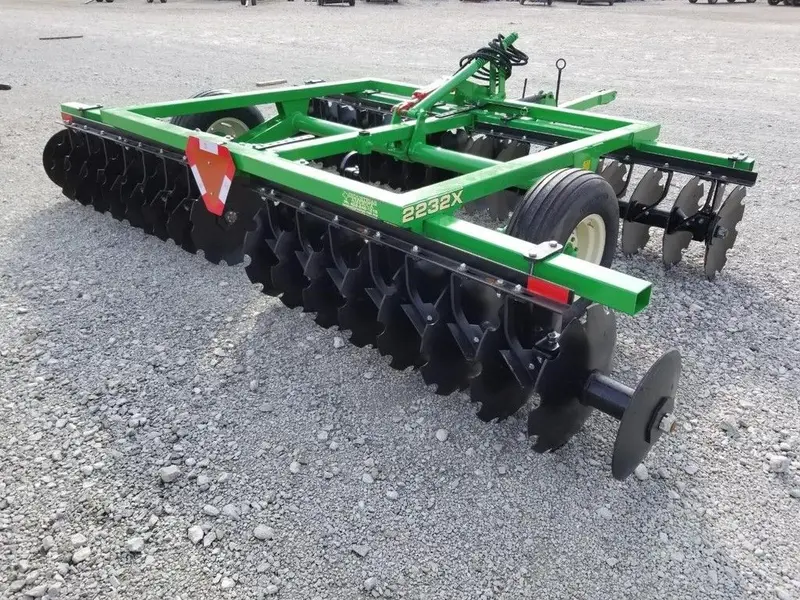

Industrias America Pull-Type Finish Disc | Model 2232X | Cutting Width 12′ | Disc Blade 22″ | Horsepower 80 To 85 HP | For Tractors
DESCRIPTION
The Industrias America 2232X Pull-Type Finish Disc is a heavy-duty agricultural implement designed for efficient soil preparation. With a 12-foot cutting width, this disc harrow is perfect for large fields and offers durability and versatility to handle various soil conditions. Equipped with greaseable bearings, a 1.5″ gang shaft, and 22″ blades, this disc is ready to take on any challenge in the field.
The Industrias America 2232X Pull-Type Finish Disc is engineered to deliver exceptional performance in large-scale soil preparation tasks. With a 12-foot cutting width, this disc harrow is perfect for working large fields and ensuring thorough soil cultivation. Featuring heavy-duty 22″ blades, 9″ disc spacing, and a robust frame construction, the 2232X provides a reliable solution for cutting, mixing, and leveling soil in various conditions.
The greaseable bearings and 1.5″ gang shaft ensure smooth operation and low maintenance, while the heavy-duty frame with 3×4″ tubing is built to withstand the rigors of field use. The 2232X Finish Disc is equipped with everything you need to get started right away, including a hydraulic cylinder and hoses for easy adjustments during operation.
Whether you’re preparing seedbeds or breaking up tough soil, this pull-type disc harrow offers the durability and efficiency needed for optimal soil management.
Key Features
- 12-Foot Cutting Width: Offers extensive coverage, making it ideal for large-scale soil preparation and field cultivation.
- 22″ Blades: Equipped with 22-inch blades to ensure effective soil cutting and mixing.
- Greaseable Bearings: Allows for smooth operation and reduced maintenance needs.
- 1.5″ Gang Shaft: Built for durability and heavy-duty use.
- Heavy-Duty Frame Construction: Features 3×4″ frame tubing with a 1/4″ thickness and 3×4″ gang tubing with a 3/16″ thickness for enhanced strength and longevity.
- 9″ Disc Spacing: Optimized disc spacing for thorough soil processing and even finish.
- Minimum HP Requirement: Requires 80 To 85 HP, suitable for a range of tractors.
- Comes Complete with Cylinder & Hoses: Ready to use in the field, this disk comes with everything needed for immediate operation.
- Weight: Weighs 3,230 lbs, providing stability and performance in various field conditions.
- Color May Vary: Available in different colors based on stock availability.
Detailed Specifications
| Specification | Detail |
|---|---|
| Make | Industrias America |
| Model | Disc, 2232X (Pull Type) |
| Condition | New |
| Cutting Width | 12 ft |
| Disc Blades | 22″ diameter |
| Disc Spacing | 9″ |
| Frame Tubing | 3×4″ (1/4″ thickness) |
| Gang Tubing | 3×4″ (3/16″ thickness) |
| Weight | 3,230 lbs |
| Minimum HP Requirement | 80-85 HP |
| Color | May vary |
