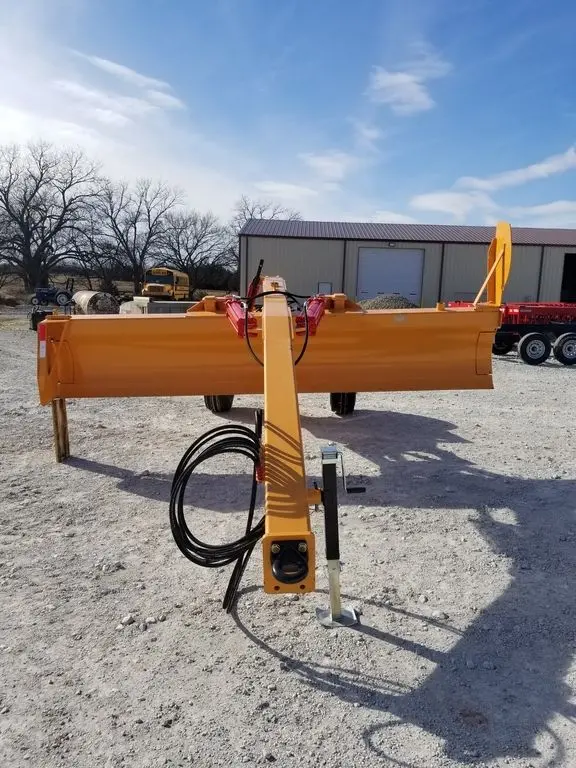

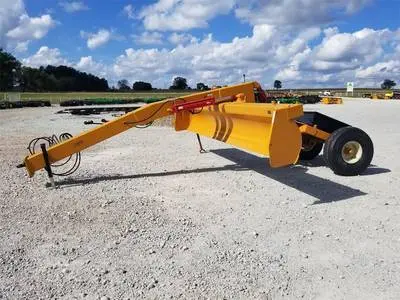

Industrias America Grader Blade | Model 140R | Cutting Width 14′ | Pull Type
DESCRIPTION
The Industrias America 140R Grader Blade is the ultimate solution for heavy-duty grading and earthmoving tasks. With its 14-foot cutting width, this grader blade is designed to tackle large-scale projects and manage challenging terrains efficiently. The angled design ensures effective material distribution, providing precision and versatility for grading roads, driveways, or agricultural fields.
Constructed with an 8×8″ main frame tubing (3/8″ thick) and a reversible 6×1/2″ cutting edge, the 140R Grader Blade delivers exceptional durability and reliability. The inclusion of heavy-duty hydraulic cylinders and 12-ply tires ensures stability and consistent performance in demanding conditions, making it a trusted choice for professionals seeking top-tier grading equipment.
Key Features
- Wide Cutting Width: 14 feet for maximum efficiency on large-scale projects.
- Angled Design: 45-degree angle for effective material spreading and leveling.
- Reversible Cutting Edge: Durable 6×1/2″ blade ensures extended service life.
- Heavy-Duty Frame: 8×8″ main frame tubing (3/8″ thick) for unmatched durability.
- Advanced Cylinders: Includes multiple hydraulic cylinders for angle, tilt, lift, and steer adjustments.
- Robust Tires: Equipped with 14L16-1, 12-ply tires for stability on various terrains.
- Weight Box: 44″ x 31″ box adds stability for efficient grading.
- Precision Control: Hydraulic features offer fine-tuned adjustments for superior results.
- Rugged Construction: Built to withstand heavy-duty use in construction and agriculture.
- Versatile Applications: Suitable for road maintenance, field leveling, and earthmoving tasks.
Detailed Specifications
| Feature | Specification |
|---|---|
| Make | Industrias America |
| Model | 140R Grader Blade |
| Condition | New |
| Cutting Width | 14 feet |
| Main Frame Tubing | 8×8″, 3/8″ thick |
| Moldboard Top Tubing | 8×6″ |
| Cutting Edge | 6×1/2″, reversible |
| Cylinders | 5x24x2″ angle, 4x10x2″ lift, 4×8″ tilt, 3×8″ rear steer |
| Tires | 14L16-1, 12-ply |
| Weight Box Size | 44″ wide x 31″ long |
