Description
Product Description

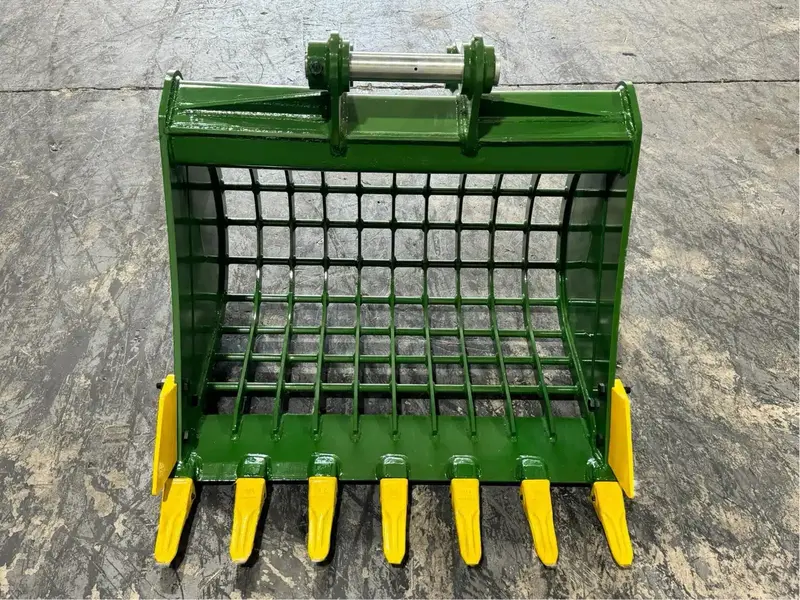

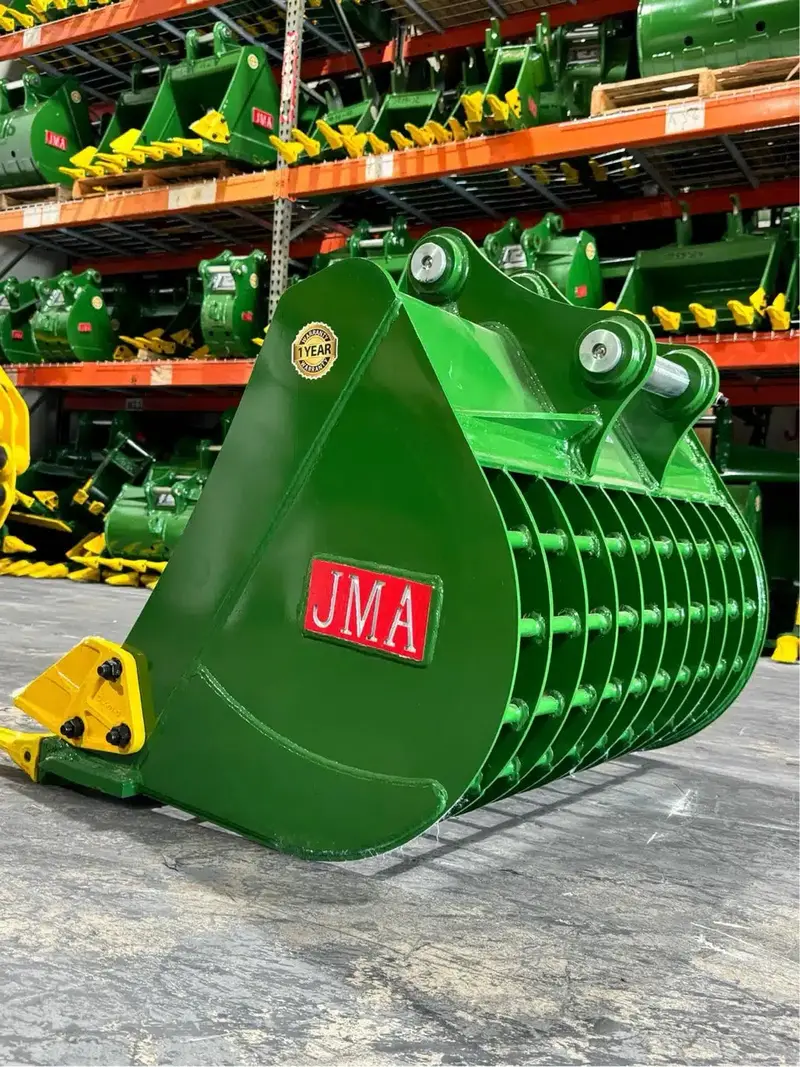

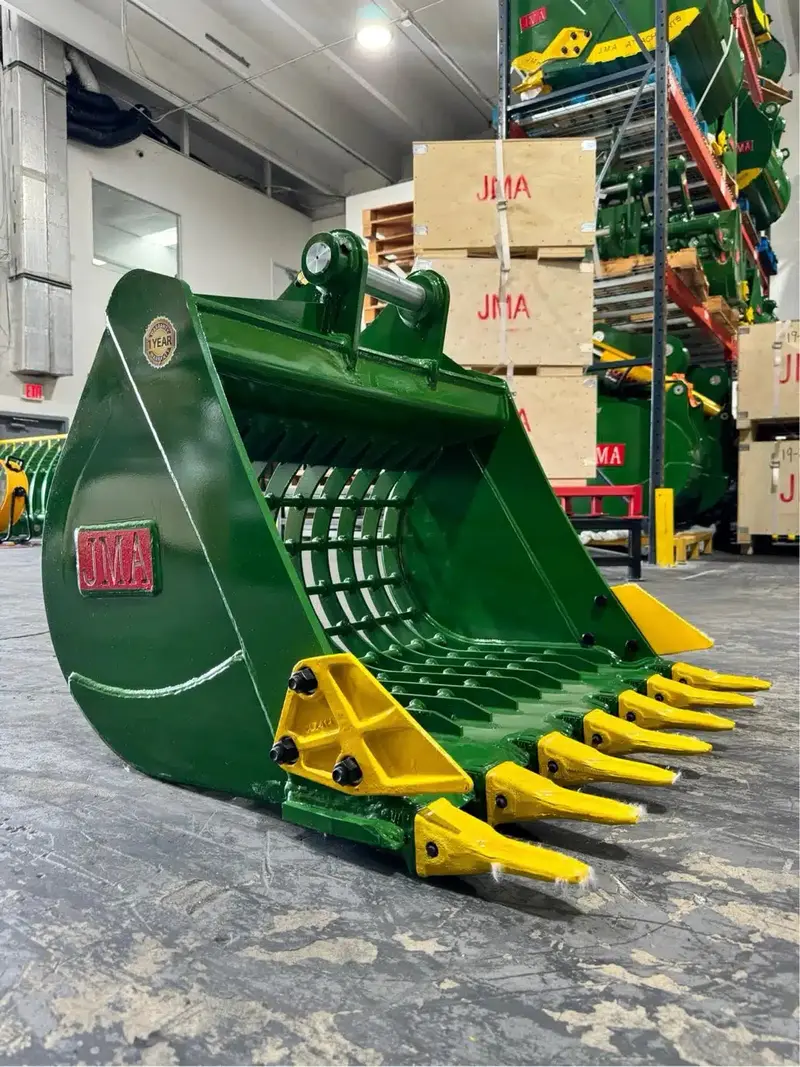

JMA Attachments Skeleton Bucket with Teeth | Bucket Width 36″, 48″, 60″ & 72″ inches | Pin Size 50mm | For 7 – 10 Tons Excavators
Description
Introducing our efficient series of heavy-duty digging buckets, specifically designed for 7 – 10 Ton Excavators. These buckets are engineered to offer superior performance and durability, making them the perfect choice for a variety of excavation tasks. Crafted from premium AR400 steel and equipped with Rock Chisel Bucket Teeth from the J200 series, these buckets ensure efficient material handling and ground penetration, enhancing your excavation productivity.
Key Features
- Superior Capacity: Capacities ranging from 0.29 m³ to 0.68 m³, allowing for efficient handling of substantial material volumes, reducing project timelines.
- Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
- Cutting-Edge Performance: Equipped with Rock Chisel Bucket Teeth (J200 series) for superior ground penetration and material handling capabilities.
- Optimized Design: 3x Reinforced Side Plates optimize material flow and reduce cycle times, maintaining productivity in various soil conditions.
- Robust Tine Design: Equipped with tines of 0.35″ (9 mm) and 0.79″ (20 mm) thickness with 80 mm spacing, enhancing material handling efficiency.
Detailed Specifications
| Attribute | 36″ Bucket | 48″ Bucket | 60″ Bucket | 72″ Bucket |
|---|---|---|---|---|
| Carrier Weight Class (tn) | 7 – 10 Tons | 7 – 10 Tons | 7 – 10 Tons | 7 – 10 Tons |
| Bucket Width (mm) | 914.4 mm | 1,219 mm | 1,524 mm | 1,828 mm |
| Bucket Width (in) | 36″ | 48″ | 60″ | 72″ |
| Inner Bucket Height (mm) | 700 mm | 700 mm | 700 mm | 700 mm |
| Bucket Side Wall Thickness (mm) | 14 mm | 14 mm | 14 mm | 14 mm |
| Bucket Depth (mm) | 504 mm | 504 mm | 504 mm | 504 mm |
| Capacity (yd³) | 0.38 yd³ | 0.55 yd³ | 0.82 yd³ | 0.89 yd³ |
| Capacity (m³) | 0.29 m³ | 0.42 m³ | 0.63 m³ | 0.68 m³ |
| Bucket Tooth Series | J200 | J200 | J200 | J200 |
| Tooth Style | Rock Chisel Bucket Tooth | Rock Chisel Bucket Tooth | Rock Chisel Bucket Tooth | Rock Chisel Bucket Tooth |
| Tooth (ct.) | 6 Teeth | 9 Teeth | 11 Teeth | 13 Teeth |
| Tooth Part Number | 1U3202RC | 1U3202RC | 1U3202RC | 1U3202RC |
| Tooth Pin Part Number | 9W7112 | 9W7112 | 9W7112 | 9W7112 |
| Tooth Retainer Part Number | 8E6209 | 8E6209 | 8E6209 | 8E6209 |
| Tines (ct.) | 9 | 13 | 16 | 20 |
| Tines Thickness (in) | 0.35″ | 0.79″ | 0.79″ | 0.79″ |
| Tines Thickness (mm) | 9 mm | 20 mm | 20 mm | 20 mm |
| Tines Spacing (mm) | 80 mm | 80 mm | 80 mm | 80 mm |
| Material Type | AR400 Steel | AR400 Steel | AR400 Steel | AR400 Steel |
| Finish | Powder-Coated Green | Powder-Coated Green | Powder-Coated Green | Powder-Coated Green |
| Left Side Cutter Part Number | CLZ-01-L | CLZ-01-L | CLZ-01-L | CLZ-01-L |
| Right Side Cutter Part Number | CLZ-01-D | CLZ-01-D | CLZ-01-D | CLZ-01-D |
| Front Pin Length (mm) | 346 mm | 346 mm | 346 mm | 346 mm |
| Rear Pin Length (mm) | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Pin Diameter (mm) | 50 mm | 50 mm | 50 mm | 50 mm |
| Rear Pin Diameter (mm) | 50 mm | 50 mm | 50 mm | 50 mm |
| Front Ear to Ear Distance (mm) | 200 mm | 200 mm | 200 mm | 200 mm |
| Rear Ear to Ear Distance (mm) | 200 mm | 200 mm | 200 mm | 200 mm |
| Center to Center Distance (mm) | 310 mm | 310 mm | 310 mm | 310 mm |
| Carrier Weight Class (lbs) | 14,000 – 20,000 lbs | 14,000 – 20,000 lbs | 14,000 – 20,000 lbs | 14,000 – 20,000 lbs |
| Features | 3x Reinforced Side Plates | 3x Reinforced Side Plates | 3x Reinforced Side Plates | 3x Reinforced Side Plates |
| Product Weight (lbs) | 485.02 lb | 593.04 lb | 692.25 lb | 800.28 lb |
| Product Weight (kg) | 220 kg | 269 kg | 314 kg | 363 kg |
Fits To
36″ Bucket
|
Brand |
Model |
|---|---|
| Airman | AX90 |
| Case | CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80 |
| Caterpillar | 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309 |
| Daewoo | S130W |
| Hanix | H75C |
| Hitachi | ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB |
| Ihi | 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65 |
| John Deere | 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P |
| Kato | HD140SE, 180G |
| Kobelco | SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80 |
| Komatsu | PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95 |
| Linkbelt | 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3 |
| Lonking | CDM6065 |
| Sany | SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9 |
| Sumitomo | SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160 |
| Takeuchi | TB180FR, TB175W, TB070, TB175, TB285, TB68S |
| Volvo | EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70 |
| XCMG | XE80E |
| Yanmar | VIO100, SV100, VIO70, VIO75, VIO80 |
48″ Bucket
|
Brand |
Model |
|---|---|
| Airman | AX90 |
| Case | CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80 |
| Caterpillar | 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309 |
| Daewoo | S130W |
| Hanix | H75C |
| Hitachi | ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB |
| Ihi | 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65 |
| John Deere | 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P |
| Kato | HD140SE, 180G |
| Kobelco | SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80 |
| Komatsu | PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95 |
| Linkbelt | 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3 |
| Lonking | CDM6065 |
| Sany | SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9 |
| Sumitomo | SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160 |
| Takeuchi | TB180FR, TB175W, TB070, TB175, TB285, TB68S |
| Volvo | EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70 |
| XCMG | XE80E |
| Yanmar | VIO100, SV100, VIO70, VIO75, VIO80 |
60″ Bucket
|
Brand |
Model |
|---|---|
| Airman | AX90 |
| Case | CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80 |
| Caterpillar | 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309 |
| Daewoo | S130W |
| Hanix | H75C |
| Hitachi | ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB |
| Ihi | 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65 |
| John Deere | 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P |
| Kato | HD140SE, 180G |
| Kobelco | SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80 |
| Komatsu | PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95 |
| Linkbelt | 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3 |
| Lonking | CDM6065 |
| Sany | SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9 |
| Sumitomo | SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160 |
| Takeuchi | TB180FR, TB175W, TB070, TB175, TB285, TB68S |
| Volvo | EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70 |
| XCMG | XE80E |
| Yanmar | VIO100, SV100, VIO70, VIO75, VIO80 |
72″ Bucket
|
Brand |
Model |
|---|---|
| Airman | AX90 |
| Case | CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80 |
| Caterpillar | 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309 |
| Daewoo | S130W |
| Hanix | H75C |
| Hitachi | ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB |
| Ihi | 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65 |
| John Deere | 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P |
| Kato | HD140SE, 180G |
| Kobelco | SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80 |
| Komatsu | PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95 |
| Linkbelt | 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3 |
| Lonking | CDM6065 |
| Sany | SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9 |
| Sumitomo | SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160 |
| Takeuchi | TB180FR, TB175W, TB070, TB175, TB285, TB68S |
| Volvo | EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70 |
| XCMG | XE80E |
| Yanmar | VIO100, SV100, VIO70, VIO75, VIO80 |
