Landy Attachments Crane Jibs (Fixed & Tilt) | Capacity 5500–9900 lb | Short & Long Reach | 8-30 GPM | 2-5 Tons | For Forklifts, Skid Steers & Excavators
DESCRIPTION

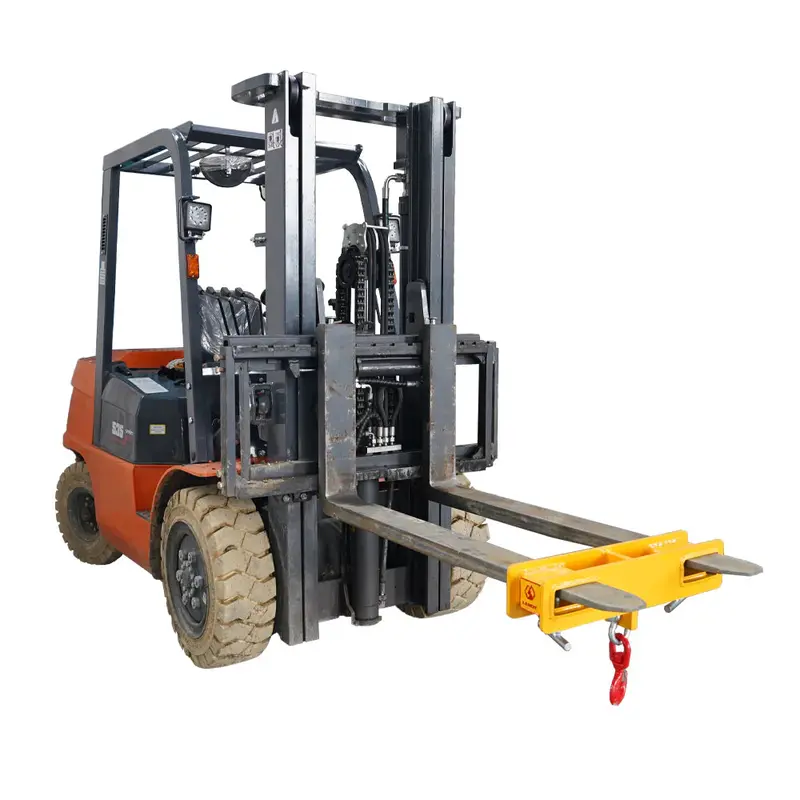

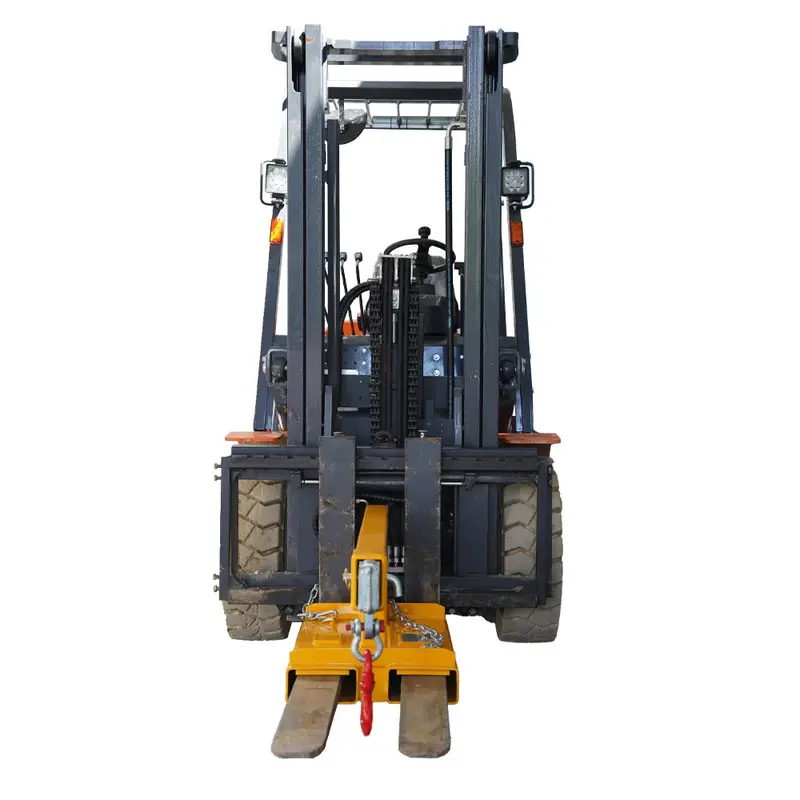

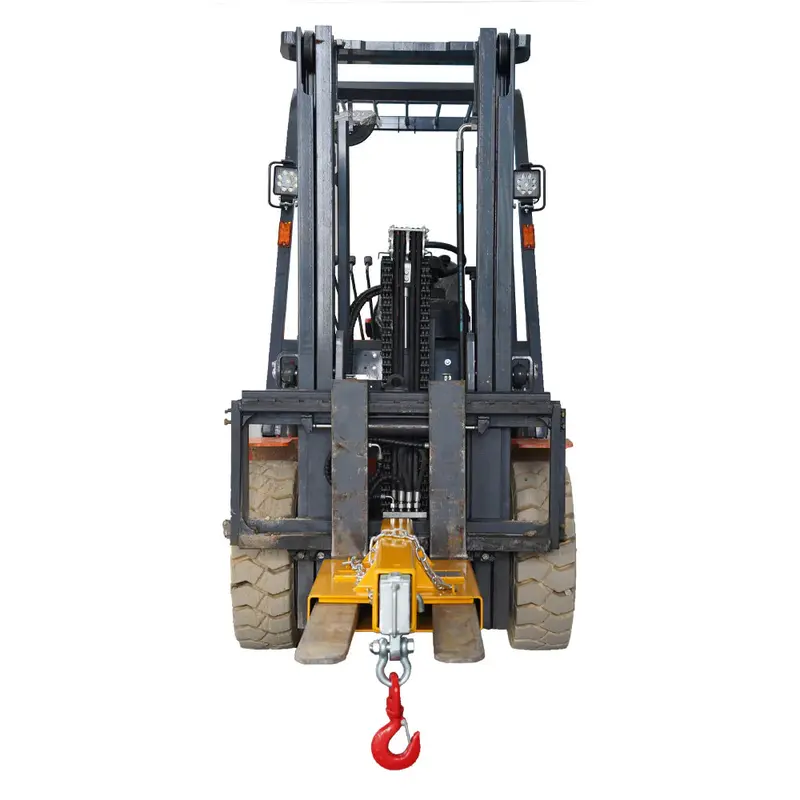

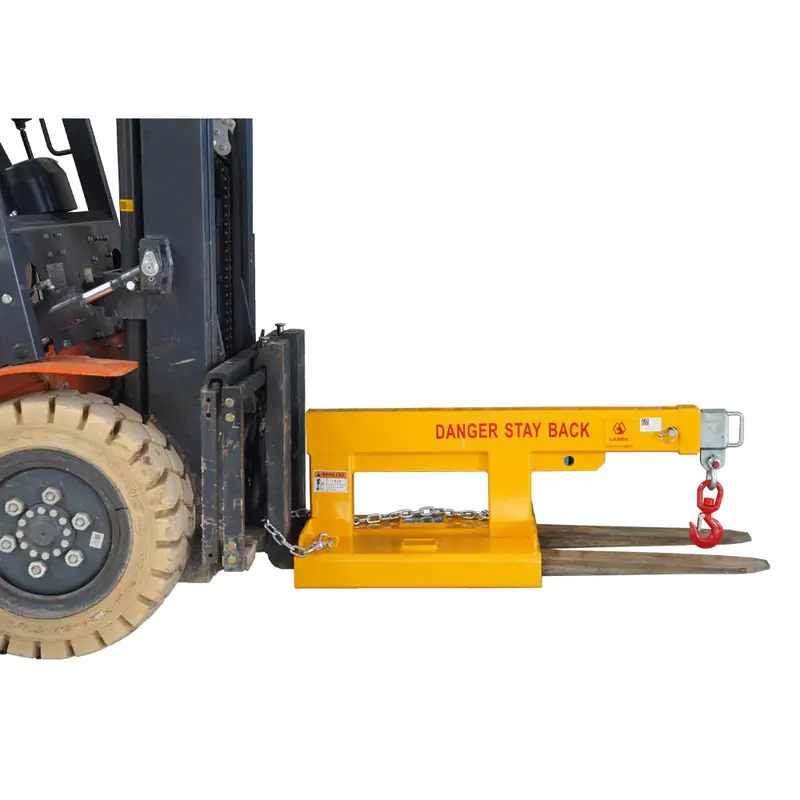

Transform your forklift, skid steer, or excavator into a versatile mobile crane with Landy Attachments Crane Jibs and Lifting Hoists. Whether you need a fixed or tilt jib for handling heavy loads in tight spaces or long-reach applications, Landy offers 5500lb to 9900lb capacity jibs with short and long reach options to accommodate every lifting challenge. These jibs provide powerful solutions for industrial, construction, and warehousing environments.
Operating with 8-30 GPM hydraulic flow, 20-50 HP horsepower, and 2-7 tons of lifting capacity, these attachments are built to maximize the potential of your existing equipment. The Landy Tilt Models allow for precise adjustment of the jib angle, making them ideal for lifting at various angles or navigating around obstacles. The Fixed Models provide stability and efficiency for straightforward lifting tasks.
In addition, the F-FH25-LANDY Lifting Hoist features a 4400lb capacity with a swivel hook, adding more flexibility for handling lighter loads. Designed for easy installation, all these jibs easily mount onto standard pallet forks, transforming your machine into a mobile crane for even the most demanding tasks.
Maximize your equipment’s potential with Landy Attachments your go-to solution for heavy-duty lifting and material handling.
Key Features
- High Load Capacity (5500-9900lbs): Landy Crane Jibs handle significant lifting tasks with ease. Available in capacities ranging from 5500lbs for smaller loads to 9900lbs for larger industrial projects.

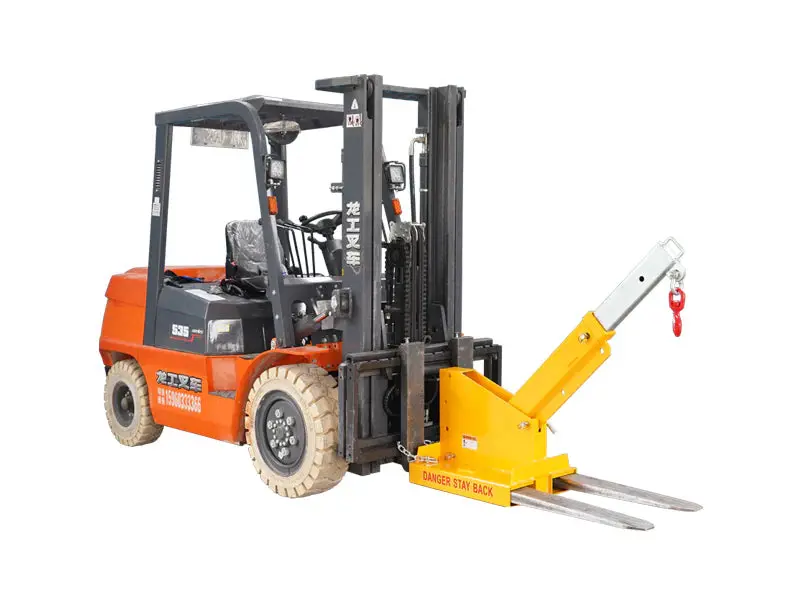

- Fixed and Tilt Models: Choose between fixed jibs for consistent lifting stability and tilt jibs for adjustable angles, offering enhanced flexibility to lift from various positions.

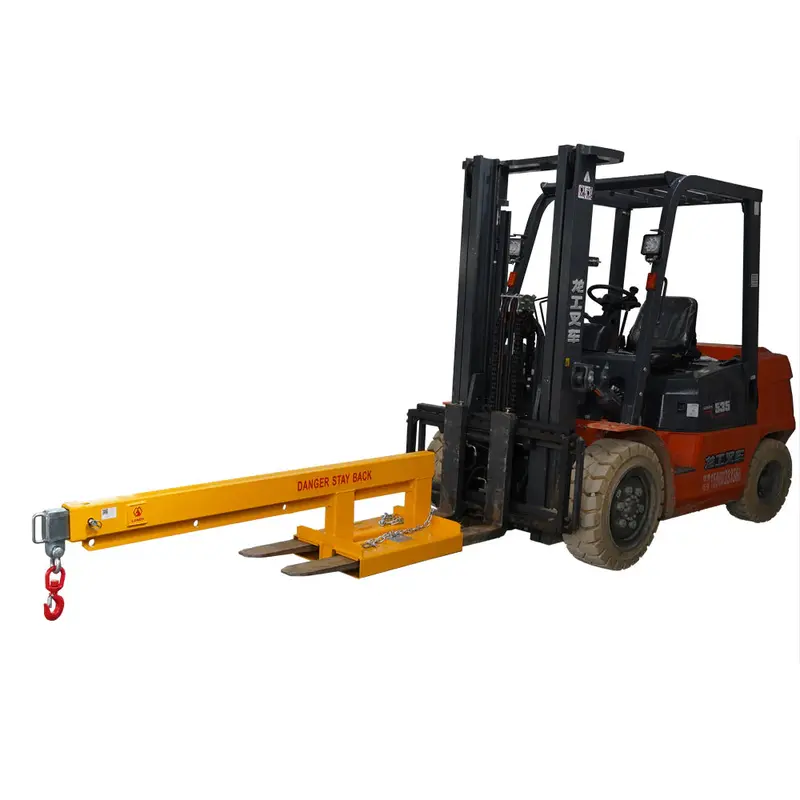

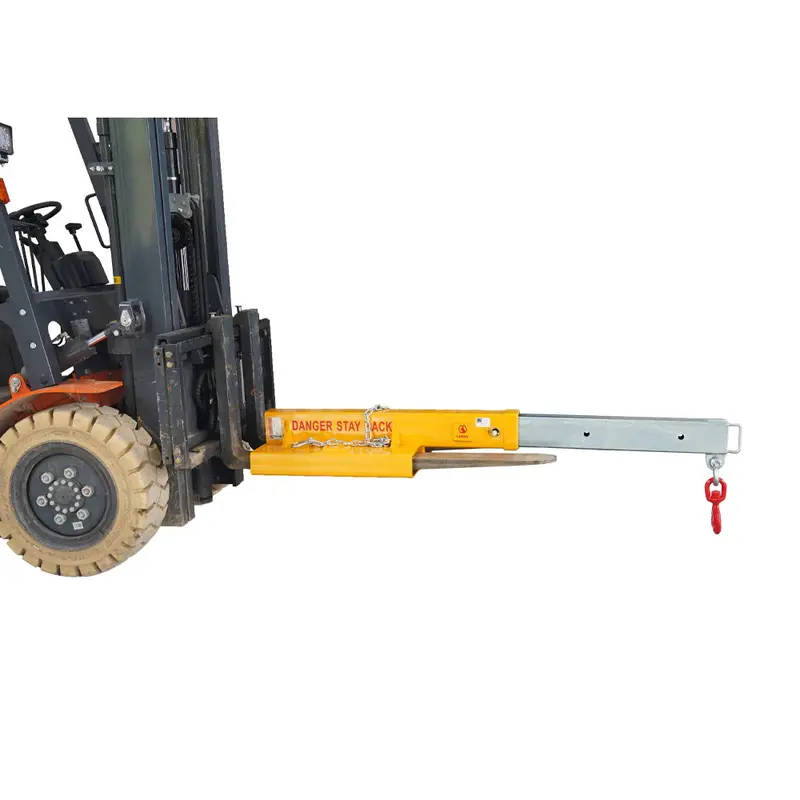

- Short and Long Reach Options: Available in short (51-78in) and long (82-138in) reach versions, these jibs are ideal for both confined spaces and large-scale applications.
- Hydraulic Compatibility (8-30 GPM): Designed to work with a wide range of machines, these jibs operate efficiently with 8-30 GPM hydraulic flow, ensuring smooth, responsive lifting power.
- Horsepower Requirement (20-50 HP): These crane jibs require only 20-50 horsepower to operate, making them compatible with a variety of forklifts, skid steers, and excavators.
- Versatile Application: Perfect for construction sites, industrial facilities, warehouses, docks, and more. These crane jibs are capable of handling various materials and loads in diverse environments.
- Easy Installation: Attach the jib to your machine’s pallet forks with ease. The installation process is quick and requires no specialized equipment, letting you get started with minimal downtime.
- Durable Heavy-Duty Steel: Built to last, these crane jibs are crafted from high-strength steel for superior durability and reliability, even in the toughest work environments.
- Lifting Flexibility: The tilt jibs allow for varied lifting angles, which is ideal for navigating tight spaces or lifting from unconventional positions.
- Safety and Stability: These jibs are designed with safety in mind, offering stable and secure attachments to prevent accidental detachment during operation.
- Additional Lifting Hoist (F-FH25-LANDY): For lighter loads, the F-FH25-LANDY Lifting Hoist features a 4400lb capacity, making it a perfect addition for picking up smaller materials.
- Cost-Effective Solution: Convert your existing equipment into a versatile crane without the need for expensive, specialized machinery.
- Compact and Space-Saving Design: These jibs are designed to be compact for easy storage when not in use, saving valuable space on the job site.
- Widely Compatible: These jibs fit most pallet forks, making them a flexible option for forklifts, skid steers, and excavators, adding versatility to your equipment fleet.
- Trusted Landy Brand: Landy Attachments are known for quality and performance, offering reliable lifting solutions that stand the test of time.
Detailed Specifications
| Specification | F-FJS2.5-LANDY (5500lb Fixed Short Jib) | F-FJL2.5-LANDY (5500lb Fixed Long Jib) |
|---|---|---|
| Safe Working Load | 5500lbs | 5500lbs |
| Weight | 231lb | 302lb |
| Load Centre | 31in | 37in |
| Fork Slots | 7.2×2.5in | 7.2×2.5in |
| Pocket Centres | 10.8in | 10.8in |
| Horizontal Centre of Gravity | 24.8in | 45.6in |
| Vertical Centre of Gravity | 5.3in | 7.2in |
| Package Size (LxWxH) | 53.2×22.8×23.8in | 83.1×22.8×24.1in |
| Package Weight | 265lb | 353lb |
| Extension Reach | 51in-78in | 82in-138in |
| Hydraulic Flow (GPM) | 8-30 GPM | 8-30 GPM |
| Horsepower (HP) | 20-50 HP | 20-50 HP |
| Tons (Lifting Capacity) | 2 Tons | 2 Tons |
| Specification | F-FJCS45-LANDY (9900lb Fixed Short Jib) | F-FJCL45-LANDY (9900lb Fixed Long Jib) |
|---|---|---|
| Safe Working Load | 9900lbs | 9900lbs |
| Weight | 227lb | 320lb |
| Load Centre | 26.4in | 34.2in |
| Fork Slots | 7.2×2.5in | 7.2×2.5in |
| Pocket Centres | 11.4in | 11.4in |
| Horizontal Centre of Gravity | 28.9in | 50in |
| Vertical Centre of Gravity | 4.7in | 5in |
| Package Size (LxWxH) | 53.6×22.8x15in | 81×22.8x15in |
| Package Weight | 260lb | 366lb |
| Extension Reach | 75in-138in | 137.8in |
| Hydraulic Flow (GPM) | 8-30 GPM | 8-30 GPM |
| Horsepower (HP) | 20-50 HP | 20-50 HP |
| Tons (Lifting Capacity) | 4.5 Tons | 5 Tons |
| Specification | F-TJS2.5-LANDY (5500lb Tilt Short Jib) | F-TJL2.5-LANDY (5500lb Tilt Long Jib) |
|---|---|---|
| Safe Working Load | 5500lbs | 5500lbs |
| Weight | 279.75lb | 352.64lb |
| Load Centre | 53.53in | 80.34in |
| Fork Slots | 7.2×2.5in | 7.2×2.6in |
| Pocket Centres | 23.6in | 23.6in |
| Horizontal Centre of Gravity | 45.6in | 60in |
| Vertical Centre of Gravity | 7.2in | 7.2in |
| Package Size (LxWxH) | 58.73×23.6×28.1in | 86.03×23.63×28.08in |
| Package Weight | 377.39lb | 420.49lb |
| Extension Reach | 53.53in | 86.03in |
| Hydraulic Flow (GPM) | 8-30 GPM | 8-30 GPM |
| Horsepower (HP) | 20-50 HP | 20-50 HP |
| Tons (Lifting Capacity) | 2 Tons | 2.5 Tons |
| Specification | F-TJCL45-LANDY (9900lb Tilt Long Jib) | F-FH25-LANDY (4400lb Lifting Hoist) |
|---|---|---|
| Safe Working Load | 9900lbs | 4400lbs |
| Weight | 320lb | 68.86lb |
| Load Centre | 79.37in | N/A |
| Fork Slots | 7.2×2.6in | 7.2×2.5in |
| Pocket Centres | 11.3in | 7.8in |
| Horizontal Centre of Gravity | 50in | N/A |
| Vertical Centre of Gravity | 5in | N/A |
| Package Size (LxWxH) | 86.03×23.63×31.4in | 25.74x6x7.8in |
| Package Weight | 481.43lb | 68.86lb |
| Extension Reach | 137.8in | N/A |
| Hydraulic Flow (GPM) | 8-30 GPM | N/A |
| Horsepower (HP) | 20-50 HP | N/A |
| Tons (Lifting Capacity) | 5 Tons | 2 Tons |
