Landy Attachments Rotary Rock Picker | Diameter Drums 30″ & 36″ | 21-26 GPM | For Skid Steers
DESCRIPTION

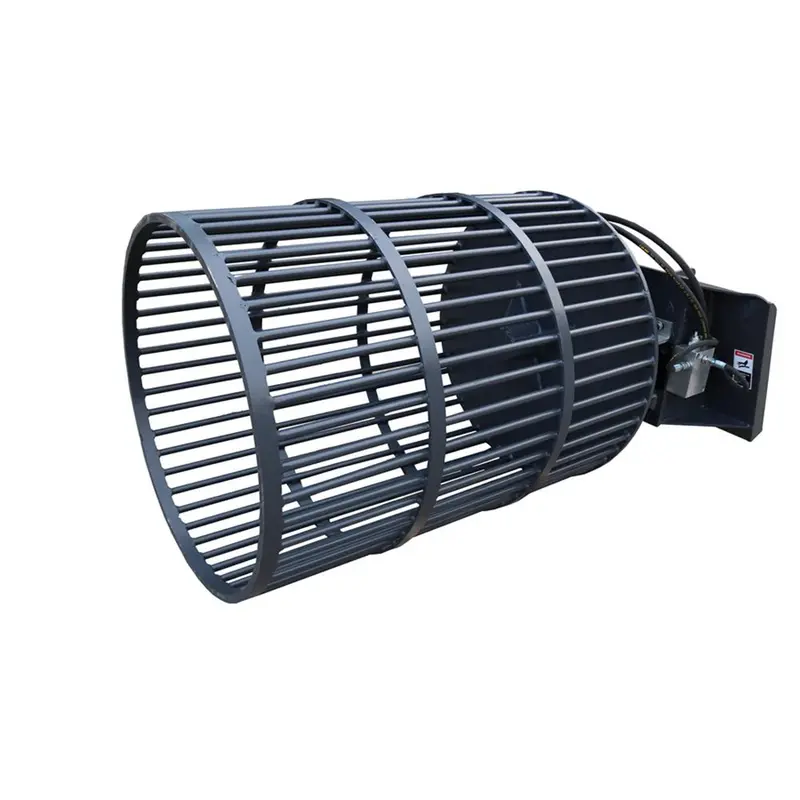

The Landy Skid Steer Rotary Rock Picker is an essential tool for debris management, designed to efficiently clear rocks and soil while maintaining minimal ground disturbance. Available in two models 30″ diameter (S-RP200-MP1140) and 36″ diameter (S-RP300-MP1140) this attachment offers exceptional versatility for a wide range of applications, including agriculture, landscaping, mining, forestry, and more.
Both models feature heavy-duty direct drive motors and a one-way spinning action, making them highly effective at removing rocks, stones, and other debris while leaving smaller materials behind. The 30″ model handles up to 900 lbs of material per scoop, while the 36″ model is built for larger tasks, with a 2000 lb capacity. These attachments are equipped with spindles rated for up to 20,000 lbs of capacity, ensuring they can withstand even the toughest conditions.
With 21.13 GPM hydraulic flow and 14 MPa pressure requirements, the Landy Rock Picker is designed for optimal performance, whether you’re using skid steers or loaders. Its universal skid steer quick attach system ensures easy and secure mounting, making it compatible with a variety of machines. Whether you need a compact solution or a larger machine for bigger debris, these Landy Rotary Rock Pickers are the perfect solution to enhance your productivity and get the job done efficiently.
Key Features
- Two Size Options: Available in 30″ diameter (S-RP200-MP1140) and 36″ diameter (S-RP300-MP1140) to suit different debris clearing needs.
- Heavy-Duty Direct Drive Motors: Ensures reliable performance under heavy loads, delivering consistent results in demanding environments.
- 30″ Model Capacity: The S-RP200-MP1140 can handle 900 lbs of material per scoop, making it ideal for smaller to medium-sized debris removal.
- 36″ Model Capacity: The S-RP300-MP1140 increases your productivity with a 2000 lb capacity, perfect for large-scale clearing operations.
- One-Way Spin Direction: Efficiently separates rocks from soil, allowing only debris larger than 2.5” to remain in the drum.
- Universal Skid Steer Quick Attach: Both models are compatible with most skid steers, ensuring easy installation and secure attachment.
- Robust Spindle Construction: With 4.5″ diameter spindles and up to 20,000 lbs capacity, these units are built to handle the toughest tasks.
- Hydraulic Flow Rate: Designed for 21.13 GPM, the hydraulic flow provides the necessary power to operate efficiently, reducing operational downtime.
- High Pressure Requirement: Requires a 14 MPa pressure for optimal performance, making it suitable for industrial-grade machinery.
- Versatile Rock Size Handling: Capable of handling rocks ranging from 2.5” to 28” for the 30″ model, and larger debris in the 36″ model.
- Minimal Soil Disturbance: Picks up debris while leaving the soil undisturbed, ideal for use in agricultural and landscaping applications.
- Compact and Lightweight: The 30″ model weighs just 767 lbs, while the 36″ model weighs 946 lbs, ensuring ease of use and transportation.
- Durable Design: Constructed with 18mm thick rods and high-capacity hubs, these rock pickers are built to last, requiring minimal maintenance.
- Ideal for Multiple Industries: Perfect for agriculture, landscaping, mining, forestry, and general debris removal.
- Efficient Material Separation: Quickly and efficiently sifts through debris, leaving behind only the materials you need.
Detailed Specifications
| Feature | S-RP200-MP1140 (30″ Model) | S-RP300-MP1140 (36″ Model) |
|---|---|---|
| Model | S-RP200-MP1140 | S-RP300-MP1140 |
| Length | 35.65 in | 47.58 in |
| Diameter | 30 in | 36 in |
| Capacity | 900 lb (200 lt) | 2000 lb (300 lt) |
| Drive | Direct | Direct |
| Spin Direction | One-way | One-way |
| Spindle Size | 0.3 in (8000 lb) | 4.5 in (20,000 lb) |
| Rock Size | 2.5 in – 28 in | 2.5 in – 36 in |
| Required Flow Rate | 21.13 GPM | 26.42 GPM |
| Required Pressure | 14 MPa | 14 MPa |
| Skid Steer Size | Refer to Load Calculator | Refer to Load Calculator |
| Weight | 767 lb | 946 lb |
| Rod Diameter | 0.7 in (18 mm) | 0.7 in (18 mm) |
| Mount Type | Universal Skid Steer Quick Attach | Universal Skid Steer Quick Attach |
| Package Size (LxWxH) | 61.3 x 49.1 x 36.6 in | 61.3 x 49.1 x 36.6 in |
| Package Weight | 880 lb | 1020 lb |
