Lane Shark Root Rake Brush Grapple 3 | Width 48″, 56″ & 64″ | Up To 40 HP | 8 To 25 GPM | For Skid Steers & Tractor
DESCRIPTION

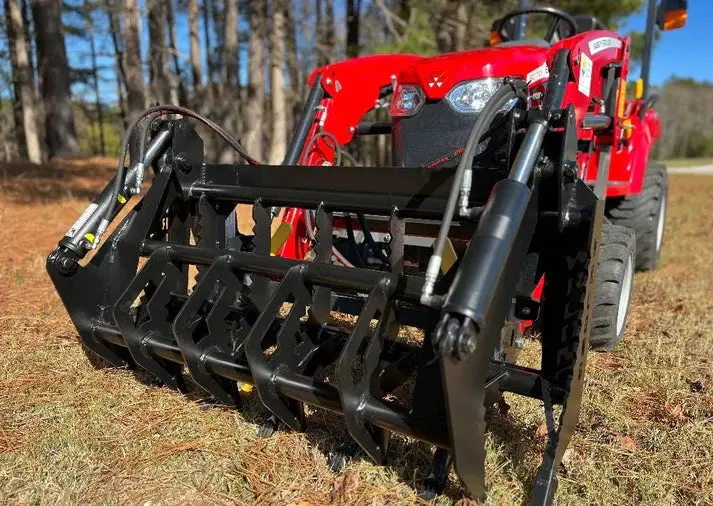

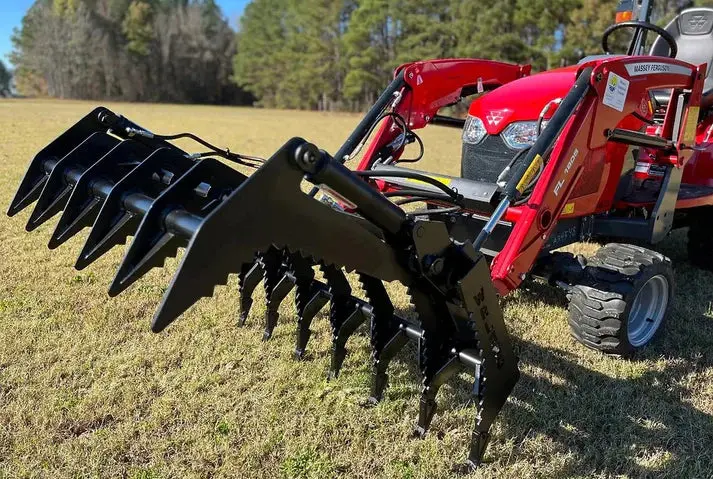

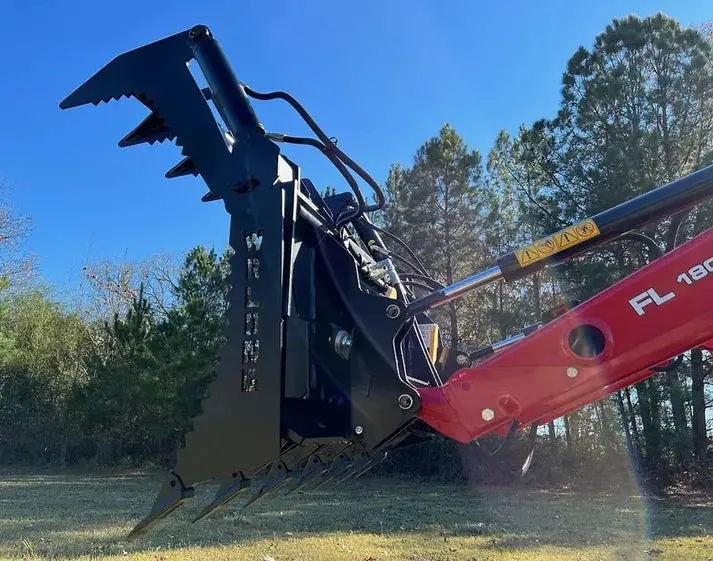

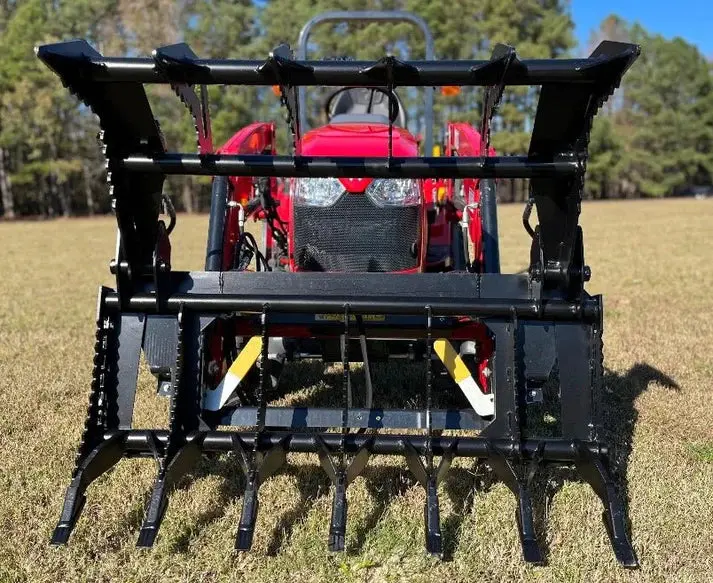

Maximize your machine’s productivity with the Lane Shark Root Rake Brush Grapple RRG3, engineered for skid steers and compact tractors up to 40 horsepower. Available in 48″, 56″, and 64″ widths, this heavy-duty grapple is designed to handle demanding applications such as land clearing, brush removal, storm cleanup, and light demolition with precision and efficiency.
Its advanced root rake design keeps the load closer to the loader, improving balance, lifting capability, and operator control. Constructed from rugged AR400 steel and equipped with replaceable high-carbon serrated tines, this grapple delivers exceptional durability in harsh working conditions. The wide 39-inch grapple opening allows for easy handling of bulky materials like logs, roots, and debris, while dual hydraulic cylinders provide powerful, consistent clamping force.
Compatible with a variety of quick attach systems, the RRG3 is a versatile solution for operators seeking reliable performance across multiple machines. Whether on a farm, jobsite, or property maintenance project, this attachment enhances efficiency while reducing manual labor.
Key Features
- Heavy-Duty AR400 Steel Frame Built for rugged environments, the AR400 steel construction ensures superior resistance to wear, bending, and impact. This makes the grapple ideal for continuous use in land clearing, construction cleanup, and agricultural operations where durability is critical for long-term performance.
- Replaceable High-Carbon Steel Tines Designed with longevity in mind, the high-carbon tines can be easily replaced when worn. This reduces maintenance costs and extends the overall lifespan of the attachment, ensuring consistent performance without requiring full unit replacement.
- Available in 48″, 56″, 64″ Widths Choose from three optimized width options to match your machine size and workload. Whether you need maneuverability in tight spaces or wider coverage for large-scale clearing, this grapple provides flexibility for different applications.
- Wide 39-Inch Grapple Opening The large opening capacity allows operators to grab and transport bulky loads efficiently. This feature significantly improves productivity by reducing the number of cycles required for material handling tasks.
- Optimized Load Center Geometry The design keeps materials closer to the machine, enhancing stability and lifting efficiency. This reduces strain on the loader arms and improves safety during operation, especially when handling uneven or heavy loads.
- Dual 2″ x 6″ Hydraulic Cylinders Provides powerful and even clamping force across the grapple. This ensures a secure grip on irregular materials like logs, brush, and rocks, preventing slippage during transport.

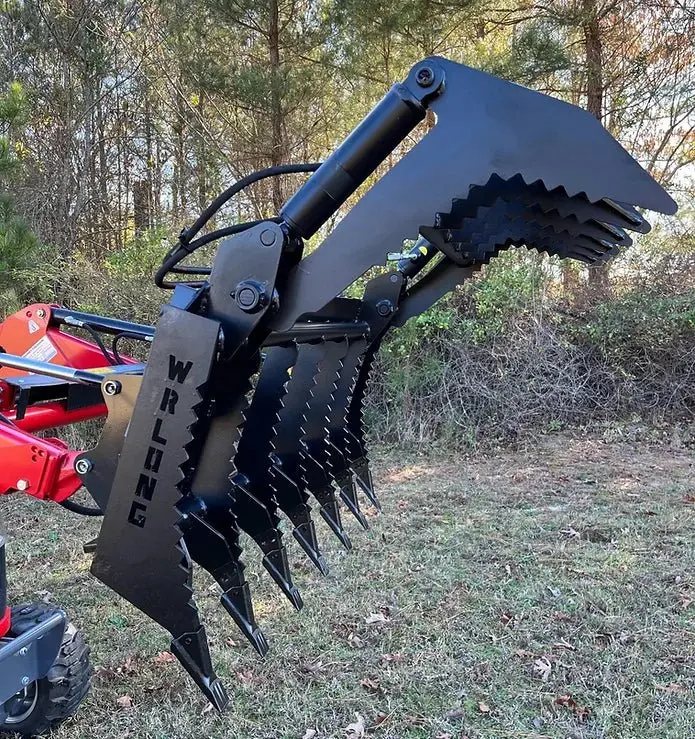

- Serrated Upper and Lower Tines The aggressive serrated edges improve grip on loose or slippery materials, allowing for better control and precision when handling debris, roots, and timber.
- Compatible with Multiple Attach Systems Works with SSQA, John Deere Hook & Pin, and Yanmar YL210 QA systems. This broad compatibility makes it suitable for a wide range of skid steers and compact tractors.
- Ideal for Up to 40 HP Machines Specifically engineered for compact tractors and small loaders, ensuring efficient performance without overloading the machine’s hydraulic system.
- Efficient Low-Flow Hydraulic Design Operates effectively on standard hydraulic systems, requiring no high-flow setup. This makes it accessible for most equipment without additional modifications.
- Versatile Multi-Application Tool Perfect for land clearing, forestry work, storm debris removal, construction cleanup, and farm maintenance, reducing the need for multiple attachments.
- Compact Yet Powerful Performance Designed for loaders with lift capacities between 450 and 1,300 lbs, balancing strength and maneuverability for optimal efficiency.

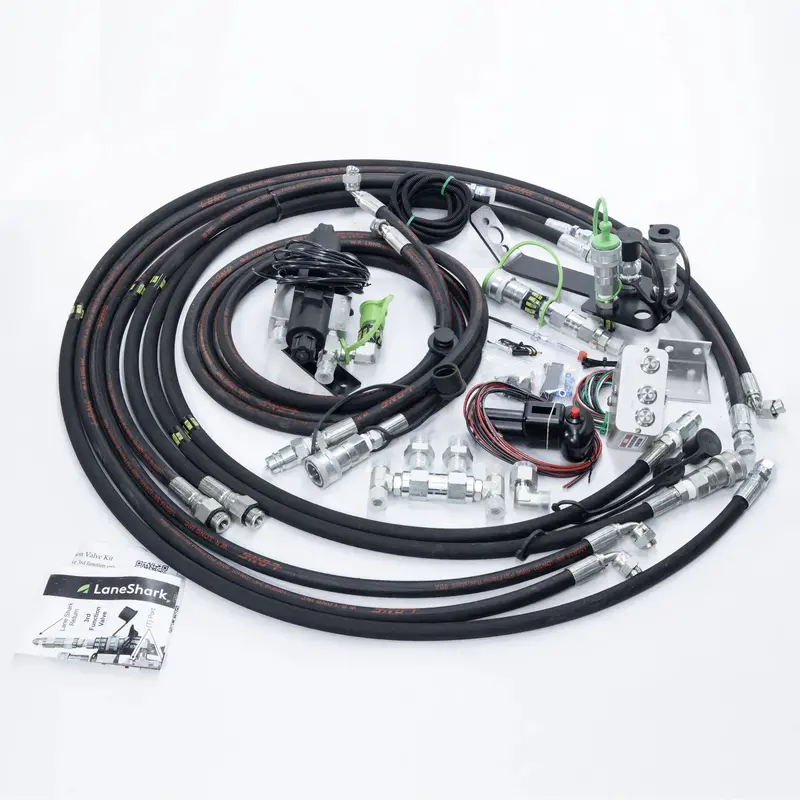

- Custom Hydraulic Coupler Options Available with 1/2″ AG or optional flat face couplers, allowing seamless integration with your existing hydraulic system.
Detailed Specifications
| Specification | 48″ Model | 56″ Model |
|---|---|---|
| Brand | Lane Shark | Lane Shark |
| Model | RRG3 48 | RRG3 56 |
| Attachment Type | Root Rake Brush Grapple | Root Rake Brush Grapple |
| Width | 48 inches | 56 inches |
| Compatible Equipment | Skid Steers & Compact Tractors | Skid Steers & Compact Tractors |
| Recommended Horsepower | Up to 40 HP | Up to 40 HP |
| Lift Capacity Range | 450 1,300 lbs | 450 1,300 lbs |
| Grapple Opening | 39 inches | 39 inches |
| Hydraulic Flow Requirement | 8–25 GPM | 8–25 GPM |
| Hydraulic Cylinders | Dual 2″ x 6″ | Dual 2″ x 6″ |
| Tine Material | High-Carbon Steel (Replaceable) | High-Carbon Steel (Replaceable) |
| Frame Material | AR400 Steel | AR400 Steel |
| Tine Design | Serrated Upper & Lower | Serrated Upper & Lower |
| Quick Attach Options | SSQA, JD Hook & Pin, Yanmar QA | SSQA, JD Hook & Pin, Yanmar QA |
| Hydraulic Couplers | 1/2″ AG / Flat Face | 1/2″ AG / Flat Face |
| Primary Applications | Clearing, Brush, Debris | Clearing, Brush, Debris |
| Specification | 64″ Model |
|---|---|
| Brand | Lane Shark |
| Model | RRG3 64 |
| Attachment Type | Root Rake Brush Grapple |
| Width | 64 inches |
| Compatible Equipment | Skid Steers & Compact Tractors |
| Recommended Horsepower | Up to 40 HP |
| Lift Capacity Range | 450 1,300 lbs |
| Grapple Opening | 39 inches |
| Hydraulic Flow Requirement | 8–25 GPM |
| Hydraulic Cylinders | Dual 2″ x 6″ |
| Tine Material | High-Carbon Steel (Replaceable) |
| Frame Material | AR400 Steel |
| Tine Design | Serrated Upper & Lower |
| Quick Attach Options | SSQA, JD Hook & Pin, Yanmar QA |
| Hydraulic Couplers | 1/2″ AG / Flat Face |
| Primary Applications | Clearing, Brush, Debris |
