Larson Electronics 77-Foot Hydraulic MegaTower Light Plant — 33-Foot Trailer, Twenty LED Fixtures, 20kW Generator, Auto-Retract Function

Description

Products Description

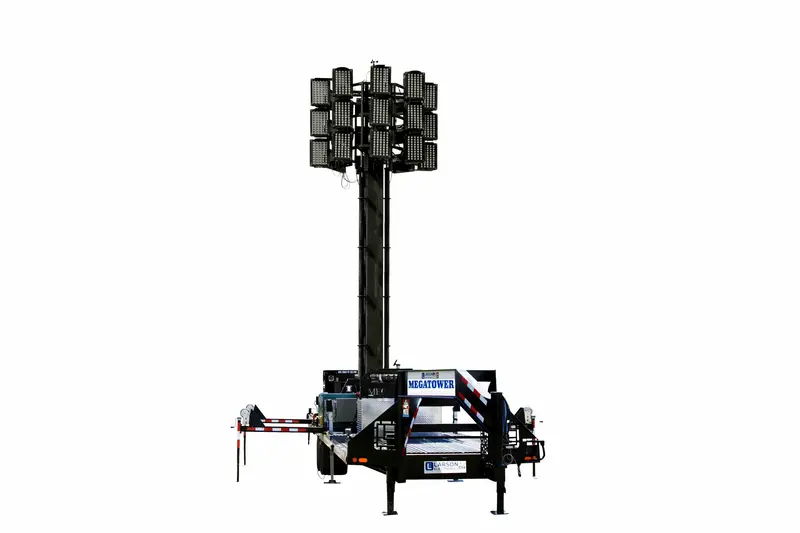

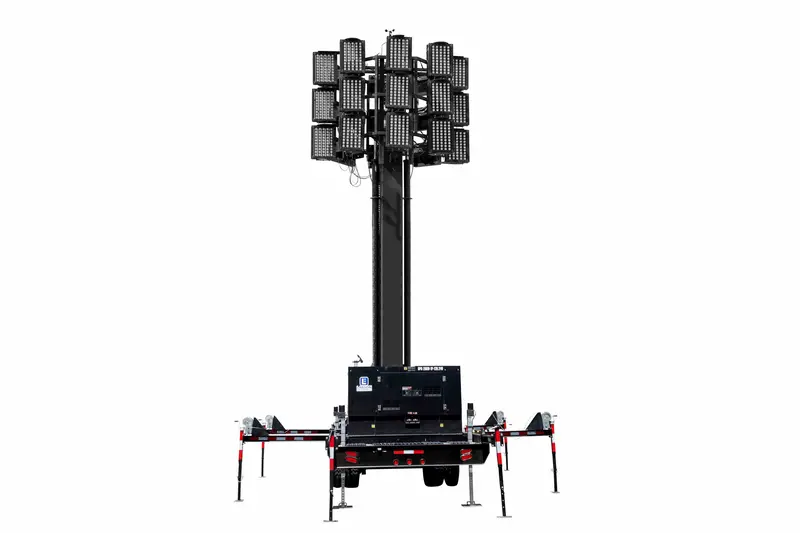

Larson Electronics 77′ Hydraulic Megatower™ Light Plant – 33′ Trailer – (20) LED Lamps – 20KW Genset – Auto Retract

Description

The Larson Electronics WCDE-20-HLM65-20X500LTL-LED-WSM LED Megatower™ is a powerful, towable light tower designed for large-scale, industrial-grade lighting needs. This mobile unit is equipped with a robust 20KW diesel generator by Kubota and 20 high-output 500W LED floodlights, providing a total of 1,350,000 lumens. The hydraulic telescoping mast can elevate these lights to a height of 77 feet, making it ideal for large event illumination, construction sites, and mining operations. Engineered for rough terrains, this Megatower™ is mounted on a dual tandem axle trailer with six stabilizing jacks, ensuring stability during operation even in windy conditions.

This model features a cold weather package to ensure reliable performance in sub-zero temperatures, along with an advanced auto-retract system for safe operation in high winds. Each LED light head is adjustable, allowing operators to achieve customized illumination. Built with Larson Electronics’ durable, IP67-rated LED fixtures and a resilient steel frame, this lighting system is an ideal choice for demanding work environments where high performance and durability are paramount.

Key Features

• Superior Illumination: Generates a total of 1,350,000 lumens with high-efficiency LED lights.
• Extended Height: Hydraulic mast reaches up to 77 feet, providing broad coverage from an elevated vantage.
• Durability and Reliability: IP67-rated LED lights, carbon steel mast, and 6-point stabilizing system for stability on rugged terrain.
• Cold Weather Ready: Comes with a full cold weather package for operation in extreme temperatures.
• Energy-Efficient LED Technology: High lumens-per-watt output with lower heat emission than traditional lighting.

Detailed Specifications

Genset Specs

Specification	Details
Genset	20KW
Engine	Perkins, 28.9 HP, liquid-cooled
Voltage	120/240V Single Phase
Fuel Tank Capacity	110 gallons with anti-splash baffles
Noise Level	68 dB at 23 feet
Cold Weather Package	Included (battery blanket, fuel heater, coolant heater)

Light Mast Specs

Specification	Details
Tower Length	30′ (collapsed) to 77′ (fully extended)
Materials	Galvanized Carbon Steel
Operation	Hydraulic (upright and extension)
Safety	Wind speed monitoring with auto-retract feature

Light Head Specs

Specification	Details
Lamp Type	LED
Total Wattage	10,000W (500W per lamp)
Total Lumens	1,350,000 lumens (67,500 per lamp)
Beam Pattern	Flood Beam
Color Temperature	5000K
Efficiency	135 lumens per watt
Waterproof Rating	IP67

Trailer Specs

Specification	Details
Dimensions	33’L x 8’W Trailer Bed
Height (Transport)	8’6″
Hitch Type	Gooseneck with 12″ I-beam construction
Axles	(2) 10,000 lbs dual tandem with electric brakes
Outriggers	(6) 7,000 lbs jacks with 12′ x 12″ x 12″ I-beams
Wheels and Tires	(8) P235/80R16 tires with steel rims
