Product Description
Mazio Cold Planer Grinder | CP Series | Milling Width 9.8″-39.4″ | Teeth 27 to 102 | Hydraulic Flow Range 8-53 GPM | For Skid Steers
Description

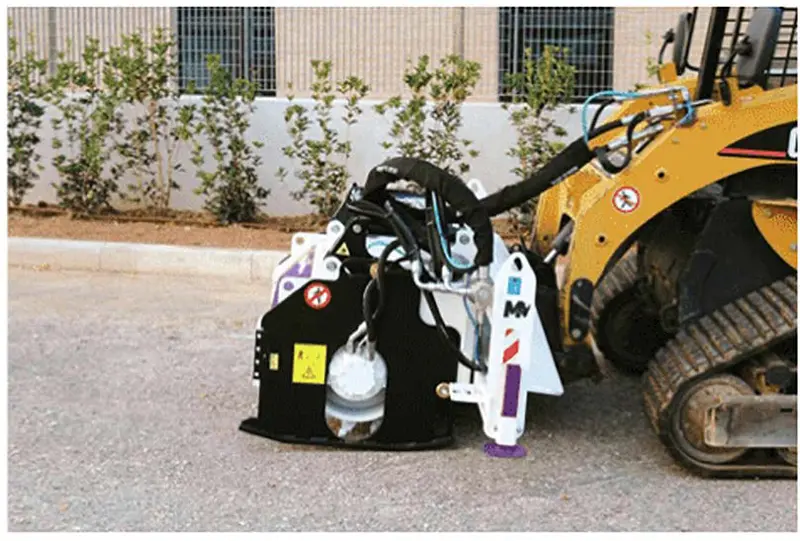

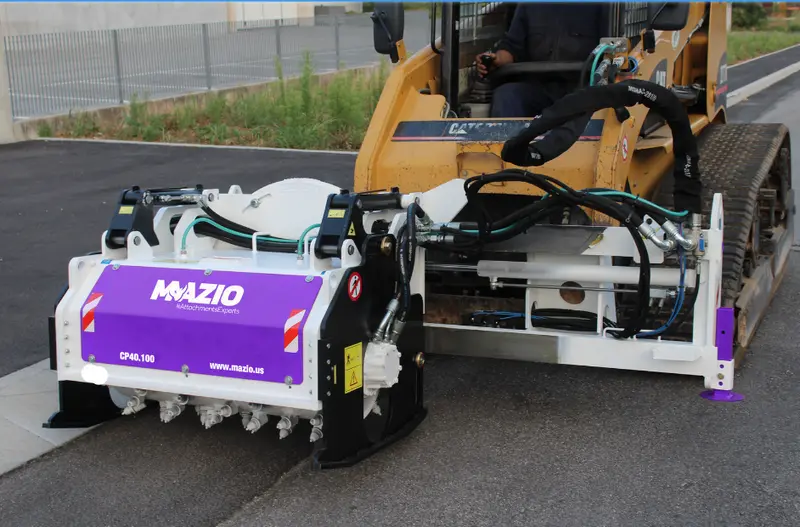

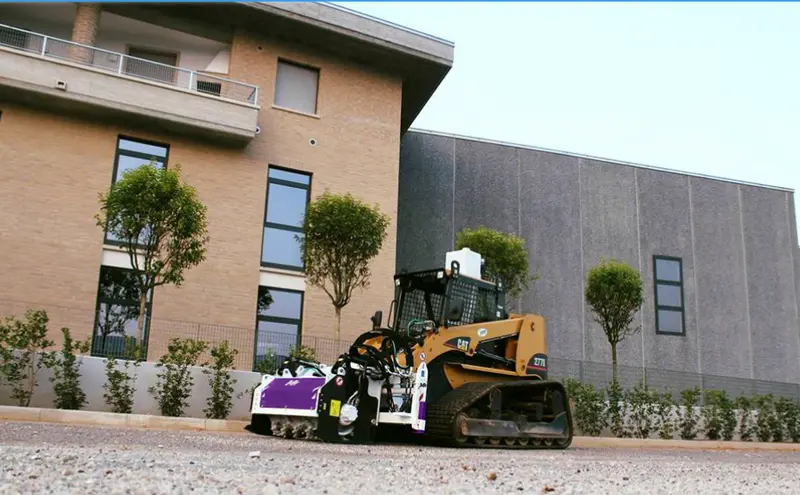

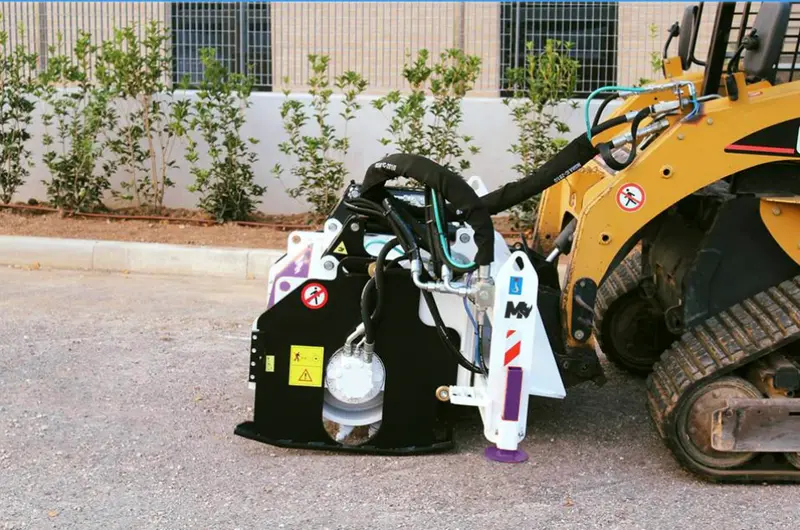

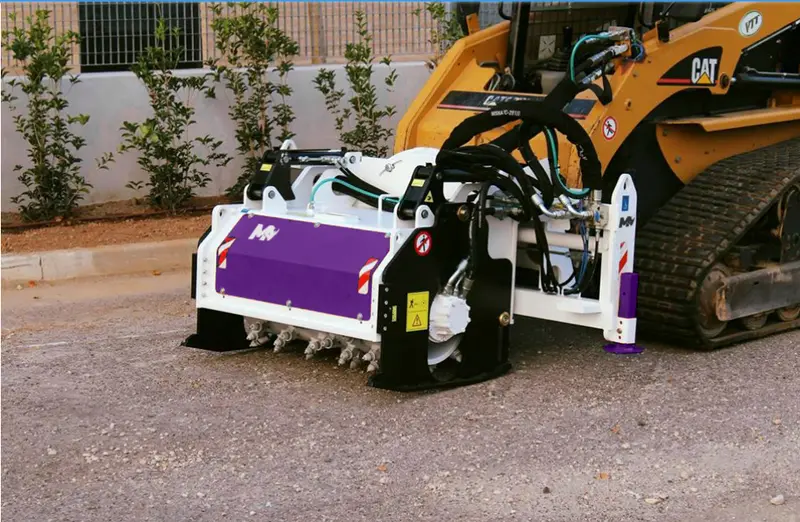

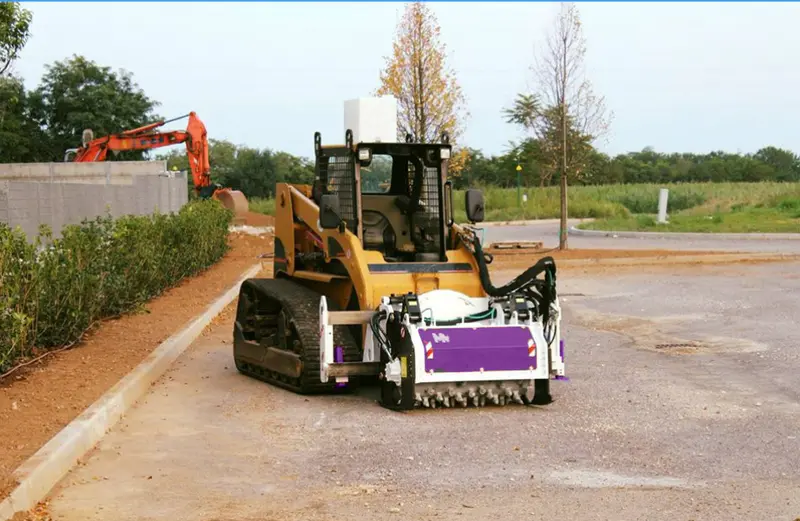

The Mazio Cold Planer Grinder is a versatile attachment designed for Skid Steer loaders. It is ideal for dismantling asphalt road surfaces, concrete, and creating crossings or tracks on paved surfaces. Available in 9 models with working widths ranging from 25 to 100 cm, this planer offers a wide range of capabilities to meet diverse job requirements.
Cold Planer SSL
The Cold Planer SSL is designed for installation on ISO 24410 mini loaders. It is suitable for both asphalt and concrete surfaces and features a high-pressure piston motor for efficient operation. Available in Standard and High Flow configurations, it offers depth control and left-to-right movement for precise milling.
Key Features
- Wide Range of Milling Widths – From 250 mm (9.8 in) up to 1000 mm (39.4 in), covering compact patching jobs through full‑lane resurfacing
- Adjustable Milling Depth – Cuts up to 200 mm deep, enabling both surface removal and full‑depth rehabilitation
- Hydraulic Flow Compatibility – Operates across 8–53 GPM (depending on model), suitable for both standard‑flow and high‑flow skid steers and loaders
- High Working Pressure – Rated up to 300 bar, ensuring strong cutting performance in asphalt and concrete
- Optimized Cross Angle – 16° on standard‑flow models and 20° on high‑flow models for efficient material conveyance and smoother milling
- Precision Close‑Wall Milling – Minimum wall clearance of 50–60 mm allows accurate work near curbs and structures
- Heavy‑Duty Cutting Drums – Equipped with 27–102 replaceable teeth, engineered for aggressive cutting and long service life
- Robust Build – Reinforced frame and wear‑resistant components withstand demanding roadwork and construction environments
- Operator Efficiency – Wide drum coverage reduces passes, saving time and fuel on large projects
- Versatile Applications – Ideal for road maintenance, asphalt repair, utility trenching, pavement texturing, and full‑depth milling
Cold Planer SSL
- Mini Loader Compatibility: Designed for ISO 24410 mini loaders.
- High-Pressure Piston Motor: Delivers powerful and efficient milling performance.
- Depth Control: Precise adjustment of milling depth.
- Left-to-Right Movement: Versatile operation for various milling tasks.
- Standard and High Flow Options: Choose the right flow rate for your specific needs.
Detailed Specifications
CP 10.25
| Feature |
Details |
| Flow |
Standard |
| Milling Width |
250 mm / 9.8 in |
| Maximum Depth |
130 mm |
| Weight |
400 kg |
| Teeth |
27 |
| Wall Minimum Distance |
50 mm |
| Oil Flow Range |
30–60 L/min / 8–16 GPM |
| Pressure (Max/Min) |
250 / 150 bar |
| Cross Angle |
16° |
CP 14.35
| Feature |
Details |
| Flow |
Standard |
| Milling Width |
350 mm / 13.8 in |
| Maximum Depth |
130 mm |
| Weight |
485 kg |
| Teeth |
37 |
| Wall Minimum Distance |
50 mm |
| Oil Flow Range |
40–60 L/min / 11–16 GPM |
| Pressure (Max/Min) |
250 / 150 bar |
| Cross Angle |
16° |
CP 15.40
| Feature |
Details |
| Flow |
Standard |
| Milling Width |
400 mm / 15.7 in |
| Maximum Depth |
130 mm |
| Weight |
570 kg |
| Teeth |
42 or 45 |
| Wall Minimum Distance |
50 mm |
| Oil Flow Range |
40–80 L/min / 11–21 GPM |
| Pressure (Max/Min) |
300 / 150 bar |
| Cross Angle |
16° |
CP 17.45
| Feature |
Details |
| Flow |
High |
| Milling Width |
450 mm / 17.7 in |
| Maximum Depth |
170 mm |
| Weight |
760 kg |
| Teeth |
47 |
| Wall Minimum Distance |
60 mm |
| Oil Flow Range |
70–140 L/min / 18–37 GPM |
| Pressure (Max/Min) |
300 / 150 bar |
| Cross Angle |
20° |
CP 20.50
| Feature |
Details |
| Flow |
High |
| Milling Width |
500 mm / 19.7 in |
| Maximum Depth |
170 mm |
| Weight |
800 kg |
| Teeth |
52 |
| Wall Minimum Distance |
60 mm |
| Oil Flow Range |
80–140 L/min / 21–37 GPM |
| Pressure (Max/Min) |
300 / 150 bar |
| Cross Angle |
20° |
CP 23.60
| Feature |
Details |
| Flow |
High |
| Milling Width |
600 mm / 23.6 in |
| Maximum Depth |
200 mm |
| Weight |
890 kg |
| Teeth |
62 |
| Wall Minimum Distance |
60 mm |
| Oil Flow Range |
100–160 L/min / 26–42 GPM |
| Pressure (Max/Min) |
300 / 150 bar |
| Cross Angle |
20° |
CP 30.75
| Feature |
Details |
| Flow |
High |
| Milling Width |
750 mm / 29.5 in |
| Maximum Depth |
200 mm |
| Weight |
1000 kg |
| Teeth |
77 |
| Wall Minimum Distance |
60 mm |
| Oil Flow Range |
100–180 L/min / 26–47 GPM |
| Pressure (Max/Min) |
300 / 150 bar |
| Cross Angle |
20° |
CP 40.100
| Feature |
Details |
| Flow |
High |
| Milling Width |
1000 mm / 39.4 in |
| Maximum Depth |
170 mm |
| Weight |
1120 kg |
| Teeth |
102 |
| Wall Minimum Distance |
60 mm |
| Oil Flow Range |
100–200 L/min / 26–53 GPM |
| Pressure (Max/Min) |
300 / 150 bar |
| Cross Angle |
20° |
