Product Description

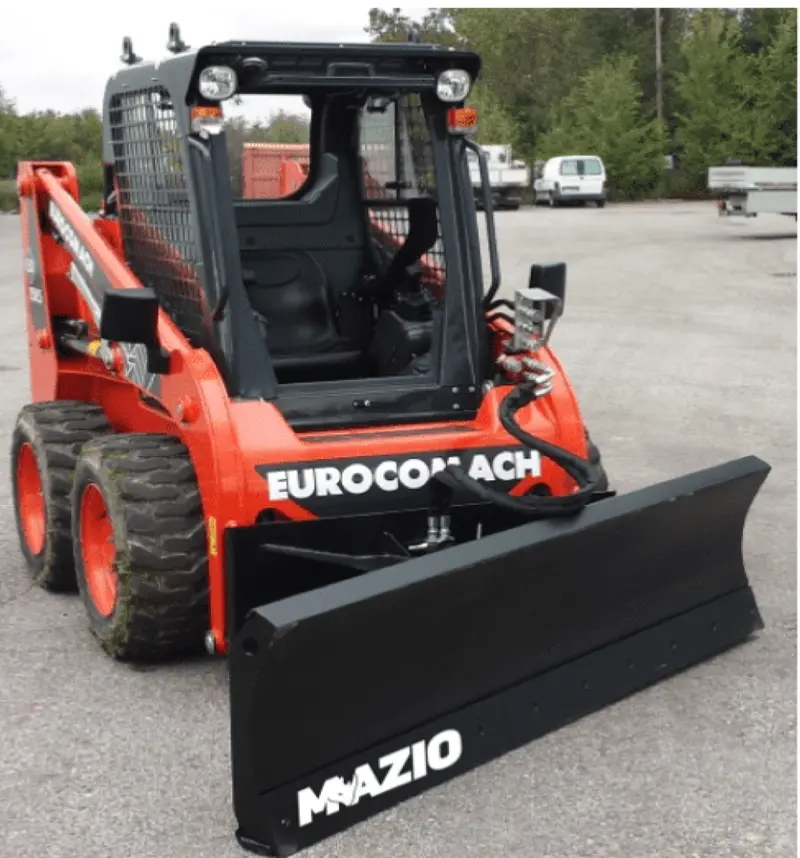

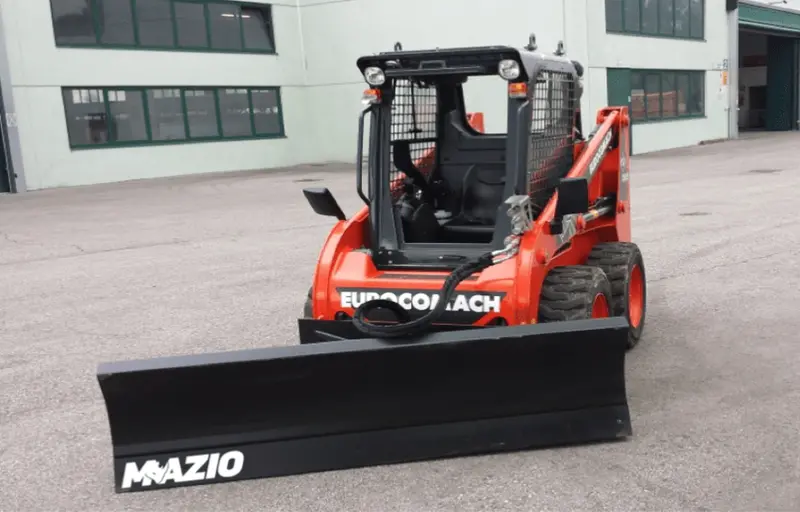

Mazio Dozer Blade | Working Width 51″-92″ | Hydraulic Flow Range 26 GPM | For Skid Steer Loaders

Description

The Mazio Dozer Blade for skid steer loaders is a versatile and durable attachment designed for various construction and industrial applications. It can be installed on any ISO 24410 mini loader, providing compatibility with a wide range of equipment. The blade offers both reversible and bolt-on blade options, enhancing its flexibility and usability. With hydraulic angling up to ± 30°, the dozer blade allows for precise adjustments and efficient operation. Additionally, it is equipped with a counter-balance hydraulic valve to ensure optimal control and stability during use.

Key Features

• Wide Working Width Range – Available in models from 51″ to 92″, covering compact to full‑size skid steers
• Hydraulic Flow Requirement – Optimized for 26 GPM, ensuring smooth and responsive blade operation

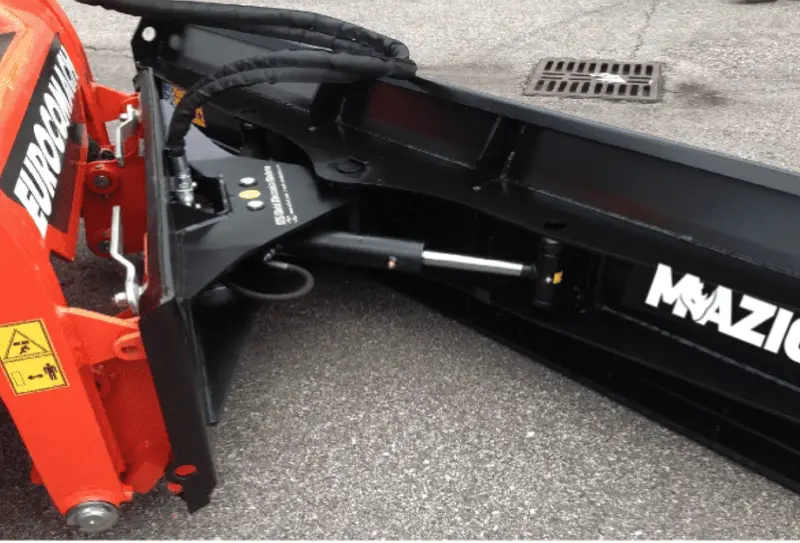

• Hydraulic Angling – ±30° left/right angling for efficient grading, backfilling, and material control
• Blade Tilting – ±8° tilt for contouring, slope work, and precision grading
• Heavy‑Duty Construction – Reinforced moldboard and end plates for durability in demanding applications
• Reversible & Bolt‑On Cutting Edge – Extends blade life and reduces maintenance costs
• Universal Skid Steer Quick Attach (SSQA) – Fast, secure mounting on most skid steer loaders
• Counter‑Balance Hydraulic Valve – Provides stability and prevents unintended blade movement
• Operator Versatility – Ideal for road maintenance, site prep, landscaping, snow clearing, and backfilling
• Compact & Efficient Design – Balances strength with maneuverability, making it suitable for tight job sites

Detailed Specifications

Dozer Blade 150

Attribute	Specification
Model	Dozer Blade 150
Width	1500 mm / 59 in
Working Width	1299 mm / 51 in
Weight	340 kg / 750 lbs
Hydraulic Angling	±30°
Hydraulic Flow Range	~26 GPM (100 L/min)

Dozer Blade 180

Attribute	Specification
Model	Dozer Blade 180
Width	1800 mm / 71 in
Working Width	1560 mm / 61 in
Weight	370 kg / 815 lbs
Hydraulic Angling	±30°
Hydraulic Flow Range	~26 GPM (100 L/min)

Dozer Blade 210

Attribute	Specification
Model	Dozer Blade 210
Width	2100 mm / 83 in
Working Width	1820 mm / 72 in
Weight	400 kg / 880 lbs
Hydraulic Angling	±30°
Hydraulic Flow Range	~26 GPM (100 L/min)

Dozer Blade 240

Attribute	Specification
Model	Dozer Blade 240
Width	2400 mm / 94 in
Working Width	2075 mm / 82 in
Weight	420 kg / 925 lbs
Hydraulic Angling	±30°
Hydraulic Flow Range	~26 GPM (100 L/min)

Dozer Blade 270

Attribute	Specification
Model	Dozer Blade 270
Width	2700 mm / 106 in
Working Width	2330 mm / 92 in
Weight	450 kg / 990 lbs
Hydraulic Angling	±30°
Hydraulic Flow Range	~26 GPM (100 L/min)
