MK Martin Axis Tool Arm – AXIS4/AXIS5-6 Models, 60–84 in Offset, Hydraulic Lift & Rotation

Description

Product Description

MK Martin Axis Tool Arm | Model AXIS4 & AXIS5-6 | 60″ to 84″ Offset Reach | Hydraulic Tool Lift & Rotation | Horsepower 30-80+ HP | For Tractors

DESCRIPTION

Safely mow slopes, ditches, ponds, and hard-to-reach areas without risking your tractor or your safety.

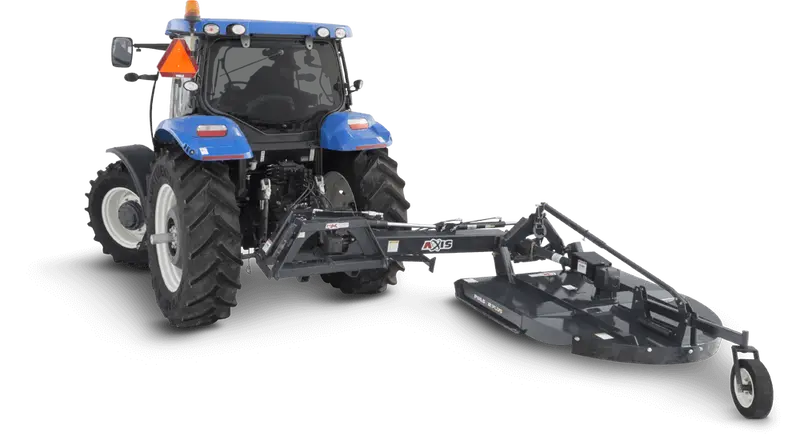

The Axis Tool Arm is the smart solution for operators who need precision, reach, and safety when tackling challenging terrain. Engineered with a wide offset (60″–84″ depending on model), this hydraulic-powered mowing arm keeps your tractor stable on flat ground while the cutting tool reaches over steep edges, embankments, and fence lines.

Whether you’re maintaining roadside ditches, clearing around ponds, or managing vegetation under fence lines, the Axis gives you full control. With hydraulic tool lift, tool rotation, and shear bolt protection, it’s built for long-lasting performance in the most rugged mowing environments.

Compatible with a variety of rotary cutters (sold separately), the Axis Tool Arm transforms your compact or utility tractor into a high-reach mowing system without sacrificing maneuverability or transport safety.

Key Features

• Wide Offset Reach (60″–84″) – Safely mow along steep slopes, ponds, or ditches without positioning your tractor on unstable terrain.
• Hydraulic Tool Lift – Easily raise or lower the mower for transport or cutting height using your tractor’s hydraulics.
• Hydraulic Tool Rotation – Adjust mower angle to perfectly match the terrain ideal for mowing uneven ground or ditch banks.
• Shear Bolt Protection – Prevents damage to the arm and tractor if the cutter encounters a heavy obstruction.
• Heavy-Duty Stabilizer Bar System – Comes with 4 mounting bracket styles to fit most rotary cutters, including Pulsar, Kodiak, and fork-style wheel assemblies.
• Transport Lock System – Keeps the arm secure during road transport to meet safety standards and extend component life.
• Retractable Weight Bar – Enhances front-end balance when extended tools are attached.
• High Horsepower Range Compatibility – Works with 30–80+ HP tractors depending on cutter size.

Detailed Specifications

Specification	AXIS4	AXIS5-6
Offset Reach	60″	84″
Weight (lbs.)	751 lbs	900 lbs
3-Point Hitch Mount	Category 1	Category 1 & 2
Minimum Tractor Weight	2,900 lbs	5,800 lbs
Maximum Tool Weight Capacity	480 lbs	800 lbs
Compatible Rotary Cutter Size	4′ (min. 30 HP required)	5′ (min. 60 HP), 6′ (min. 80 HP)
Cutting Angle – Cyl. Extended	55°	55°
Cutting Angle – Cyl. Retracted	90°	90°
Tractor Hydraulic Remotes	2 Required	2 Required
Safety/Protection System	Shear Bolt	Shear Bolt
Transport Lock	Included	Included
Stabilizer Arm Mounts Included	Yes – 4 Adapter Styles	Yes – 4 Adapter Styles
