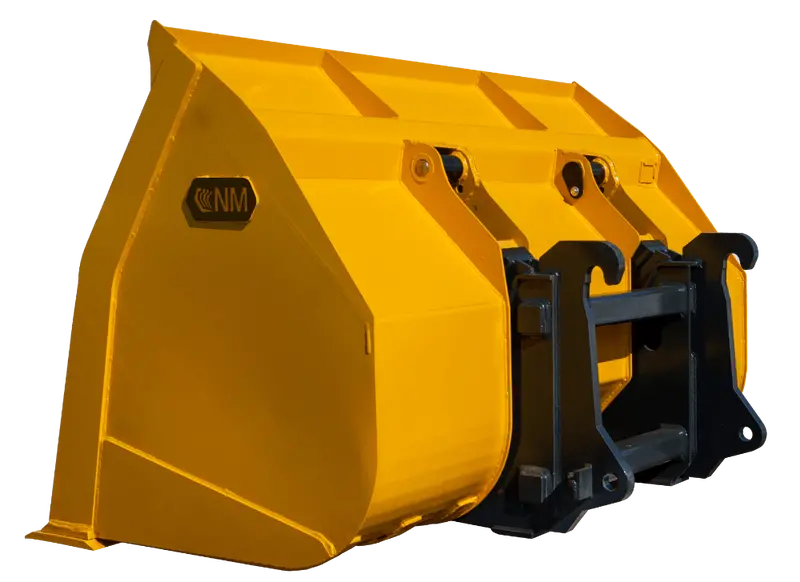

NM Attachment High Dump Bucket | Model HD Series | Widths 84″–102″ | Machine Class 100–150 | Machine Size 12,000–30,000 lbs | For Wheel Loaders
DESCRIPTION
The NM Attachments HD Series High Dump Buckets are expertly engineered for wheel loaders that demand increased discharge height and efficiency in heavy-duty material handling. These buckets excel at clearing tall hoppers, trucks, and containers thanks to their specialized high-lift geometry, which facilitates precise and elevated dumping operations. Built with rugged, high-strength materials, the HD Series offers outstanding durability in the most challenging environments. Available in widths of 84″ to 102″ and capacities ranging from 2 to 5 cubic yards, these buckets are tailored for Class 100 to Class 150 wheel loaders with operating weights between 12,000 and 30,000 lbs. Each bucket features a bolt-on cutting edge designed to extend wear life and simplify maintenance cycles, minimizing downtime. To guarantee seamless operation and safety, accurate mount specifications are required to ensure compatibility with OEM couplers. This attention to detail makes the HD Series an optimal choice for professionals requiring reliable, high-performance buckets that meet exacting standards in construction, recycling, and industrial material handling applications.
Key Features
- Model Identification: HD Series Model codes like 100HD-200 or 150HD-500 indicate loader class and bucket capacity in cubic yards.
- Bucket Capacities: 2 to 5 Yards Suitable for medium to heavy-duty material handling, including aggregates, waste, and bulk loads.
- Bucket Widths: Approx. 84″ to 102″ Varies by capacity: 2–3 yd buckets: ~84″–96″, 3.5–5 yd buckets: ~96″–102″
- High Dump: Geometry Extended dump height for loading into elevated containers and trailers.
- Machine Class Compatibility: Class 100–150 Designed for wheel loaders with operating weights between 12,000–30,000 lbs.
- Bolt-On Cutting Edge: Replaceable edge protects the bucket lip and simplifies servicing.
- Mount Compatibility: Must specify mount type (e.g., CAT Fusion, ISO, JRB, Volvo, Deere) for proper fit.
- Rugged Steel Construction: Reinforced side plates and welds for durability in high-cycle environments.
- Application: Versatility Ideal for construction, recycling, agriculture, and bulk material handling.
Detailed Specifications
100HD-200
| Attribute | Details |
|---|---|
| Model | 100HD-200 |
| Part Number | 100HD-200 |
| Bucket Type | High Dump |
| Class | Class 100 |
| Machine Size | ~12,000–16,000 lbs |
| Capacity (Volume) | 2 Yard |
| Bucket Width | ~84″ |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
100HD-250
| Attribute | Details |
|---|---|
| Model | 100HD-250 |
| Part Number | 100HD-250 |
| Bucket Type | High Dump |
| Class | Class 100 |
| Machine Size | ~12,000–16,000 lbs |
| Capacity (Volume) | 2.5 Yard |
| Bucket Width | ~90″ |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
100HD-300
| Attribute | Details |
|---|---|
| Model | 100HD-300 |
| Part Number | 100HD-300 |
| Bucket Type | High Dump |
| Class | Class 100 |
| Machine Size | ~12,000–16,000 lbs |
| Capacity (Volume) | 3 Yard |
| Bucket Width | ~96″ |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
125HD-300
| Attribute | Details |
|---|---|
| Model | 125HD-300 |
| Part Number | 125HD-300 |
| Bucket Type | High Dump |
| Class | Class 125 |
| Machine Size | ~16,000–20,000 lbs |
| Capacity (Volume) | 3 Yard |
| Bucket Width | ~96″ |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
125HD-350
| Attribute | Details |
|---|---|
| Model | 125HD-350 |
| Part Number | 125HD-350 |
| Bucket Type | High Dump |
| Class | Class 125 |
| Machine Size | ~16,000–20,000 lbs |
| Capacity (Volume) | 3.5 Yard |
| Bucket Width | ~98″ |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
125HD-400
| Attribute | Details |
|---|---|
| Model | 125HD-400 |
| Part Number | 125HD-400 |
| Bucket Type | High Dump |
| Class | Class 125 |
| Machine Size | ~16,000–20,000 lbs |
| Capacity (Volume) | 4 Yard |
| Bucket Width | ~100″ |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
150HD-400
| Attribute | Details |
|---|---|
| Model | 150HD-400 |
| Part Number | 150HD-400 |
| Bucket Type | High Dump |
| Class | Class 150 |
| Machine Size | ~20,000–30,000 lbs |
| Capacity (Volume) | 4 Yard |
| Bucket Width | ~100″ |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
150HD-500
| Attribute | Details |
|---|---|
| Model | 150HD-500 |
| Part Number | 150HD-500 |
| Bucket Type | High Dump |
| Class | Class 150 |
| Machine Size | ~20,000–30,000 lbs |
| Capacity (Volume) | 5 Yard |
| Bucket Width | ~102″ |
| Cutting Edge | Bolt-On |
| Mount Required | Yes – Must specify OEM coupler (CAT Fusion, ISO, JRB, Volvo, Deere, etc.) |
Host Machines Compatibility:
- Caterpillar, Deere, Hyundai, JCB, Komatsu, New Holland, Terex, Volvo, and more (Specific models listed in product details)
- CATERPILLAR 926M,
- CATERPILLER 930M.
Note: Mounting type must be specified when placing an order to ensure proper attachment compatibility with your wheel loader model.
