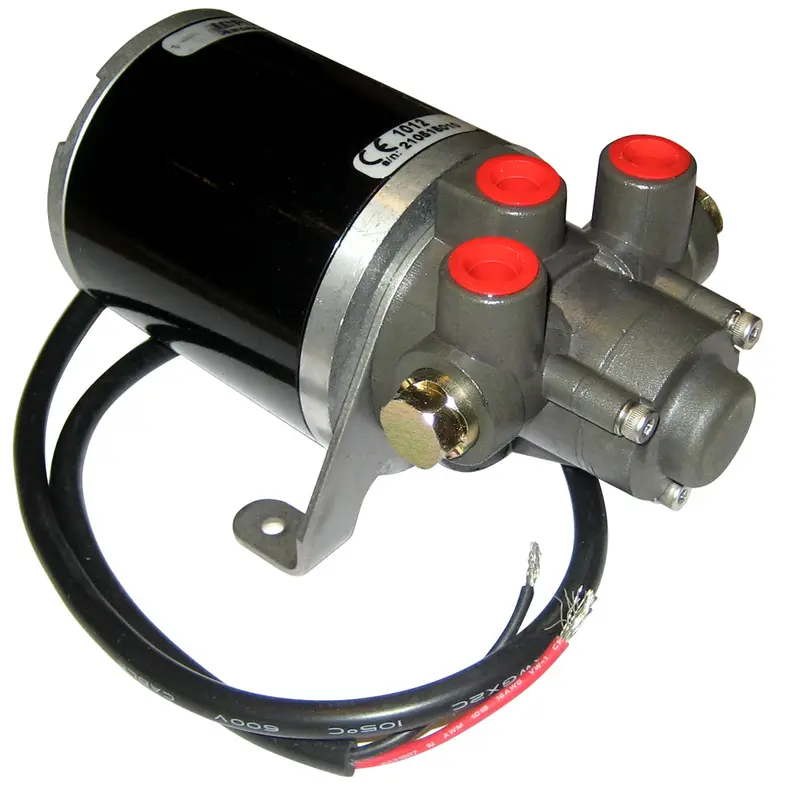

Octopus 12V Hydraulic Gear Pump – 6–9 ci/rev Displacement

Description

Hydraulic Gear Pump 12V 6-9CI Cylinder
From the design team that brought you the legendary Octopus hydraulic drives, our new gear pump offers industry leading reliability and performance in a smaller, lighter, quieter package.
Features:

• Industry leading efficiency – lower power consumption, particularly under demanding conditions requiring higher flow rates equates to a major advantage over competing units.
• Cost saving – the increased efficiency and performance means the pumps can be used with smaller autopilot course computers than equivalent drive units.
• The smaller footprint of the compact gear pump increases installation flexibility.
• Lower noise and vibration make the gear pump particularly suitable for sailboat installations.
• Suitable for balanced or unbalanced cylinders.
• All models available for both 12v and 24v systems.

Specifications:

• Flow Rate: 600CC/min
• Voltage: 12 Volt
• Cylinder Range: 6-9ci CYLINDER
• Average Current Draw: 3.8A
• Operating Temperature: -15 to +75’C (5 – 167’F)
• Waterproofing: IP55
• Ignition Protection: ISO 8846 & SAEJ1171
• EMC Compliance: EN60945-9-2002

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5″H x 5″W x 9″L WT: 4.2 lbs

Quick Guide (pdf)
