Product Description

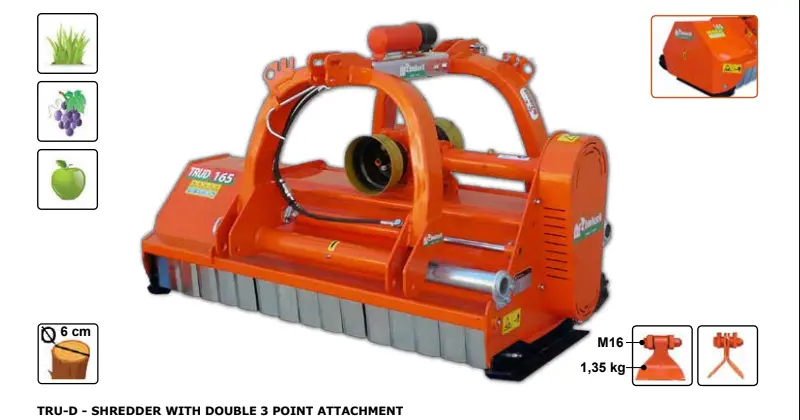

Rinieri Reversible Shredder TRU-D 100 – 240 Modal | 39″-92″ Working Width | 30 – 110HP For Tractor
DESCRIPTION
The TRU-D Reversible Shredder is designed for high-efficiency shredding of grass and wood up to 6 cm (2.36″) in diameter. Suitable for reversible-drive tractors, it is equipped with either knives or hammers, providing versatility based on your operational needs. The shredder features a double 3-point hitch CAT.1-2 with hydraulic side shift, allowing easy adjustments to match various field conditions.
The double body with shear teeth ensures durability, while the smooth right side and brush rakes optimize the shredding process. The rear roller and Cardan joint contribute to effective cutting performance and smooth power transfer. Safety is a priority with front steel aprons, adjustable side skids, and a free-wheel gearbox.
Key Features
- Shredding Capacity: Handles grass and wood up to 6 cm (2.36″) in diameter
- Hydraulic Side Shift: Double 3-point hitch CAT.1-2 with hydraulic side shift for precise control
- Durable Construction: Double body with shear teeth and smooth right side for enhanced performance
- Safety Features: Includes front steel aprons, adjustable side skids, and a free-wheel gearbox for secure operation
- Versatility: Available with knives or hammers depending on operational needs
Detailed Specifications
TRR1 100 and TRR1 125
| Attribute | TRR1 100 | TRR1 125 |
|---|---|---|
| Model | TRR1 100 | TRR1 125 |
| Knives | 8 | 10 |
| Required HP | 60 – 70 | 70 – 80 |
| Working Width (cm) | 102 | 127 |
| Machine Width (cm) | 123 | 148 |
| Machine Weight (kg) | 645 | 685 |
| Belt No. | 4 | 4 |
| Cutting Power (cm) | 10 | 10 |
TRR1 150 and TRR1 175
| Attribute | TRR1 150 | TRR1 175 |
|---|---|---|
| Model | TRR1 150 | TRR1 175 |
| Knives | 12 | 14 |
| Required HP | 80 – 90 | 90 – 100 |
| Working Width (cm) | 152 | 176 |
| Machine Width (cm) | 172 | 197 |
| Machine Weight (kg) | 765 | 875 |
| Belt No. | 4 | 4 |
| Cutting Power (cm) | 10 | 10 |
Standard Equipment
| Feature | Details |
|---|---|
| Double 3-Point Hitch | CAT.1-2 with hydraulic side shift |
| Double Body | With shear teeth |
| Smooth Right Side | Yes |
| Brush Rakes | Included |
| Gearbox | 540 rpm with shaft and double freewheel |
| Rear Roller | Yes |
| Cardan Joint | Included |
Safety Features
| Feature | Details |
|---|---|
| Front Steel Aprons | Yes |
| Adjustable Side Skids | Yes |
| Free Wheel Gearbox | Included |
In Package:
- TRU-D Reversible Shredder: Complete with knives or hammers, double 3-point hitch, hydraulic side shift, shear teeth, and safety features including front steel aprons and adjustable side skids.
Manuals & Documents
Product Manual
Machine Configuration Guide
