Product Description
Rinieri Vental Twin Trubo With Blades | Row Width 57″-87″ inches | Horsepower 60-80 HP | For Tractor
DESCRIPTION

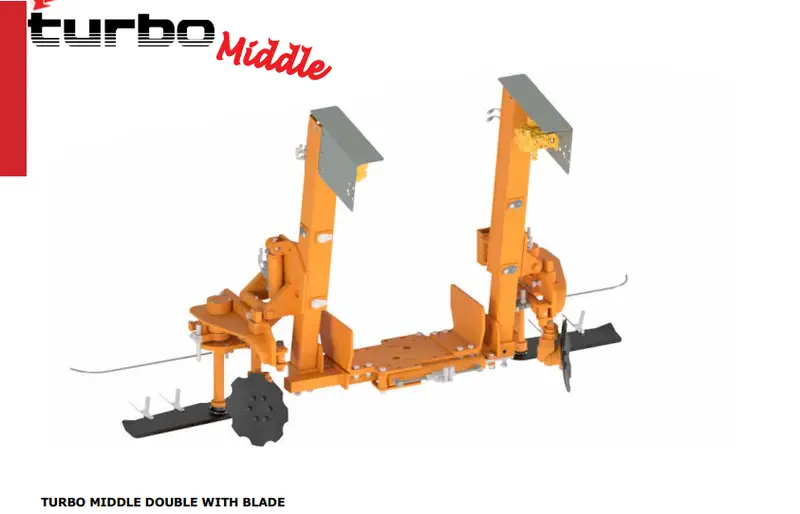

The Ventral Twin Turbo with Blades is a highly compact and efficient weeding solution, designed for mounting between the tractor’s wheels for maximum visibility. Equipped with dual hoeing blades and discs, the tool rotates 90º to avoid plants, enabling precise weeding at speeds up to 8 km/h. This versatile tool is available in double or single versions and can be assembled with trimmers, shredders, cultivators, and disc harrows. It ensures ecological weed control, even in tightly spaced plantings.
The frame features hydraulic height adjustment and tilting for smooth operation. While the standard model includes manual side shift, a hydraulic jack can be added for further convenience. An electro-valve with a joystick can also be integrated for tractors without the necessary hydraulic connections.
Key Features
- Compact Double Middle Mount Design: The dual mounting system provides excellent visibility by placing the blades between the tractor’s wheels, allowing operators to work efficiently in confined spaces.
- 90º Blade Rotation for Precision Weeding: Equipped with hoeing blades and discs, the tool’s 90º rotation ensures accurate weeding without damaging plants, delivering ecological weed control at speeds up to 8 km/h.
- Hydraulic Height and Tilt Adjustments: The hydraulic lifting and tilting mechanisms enable easy adaptation to varying field conditions and terrains, enhancing precision during operation.
- Manual Side Shift with Hydraulic Option: The standard manual side shift can be upgraded to hydraulic, providing smoother control and greater flexibility.

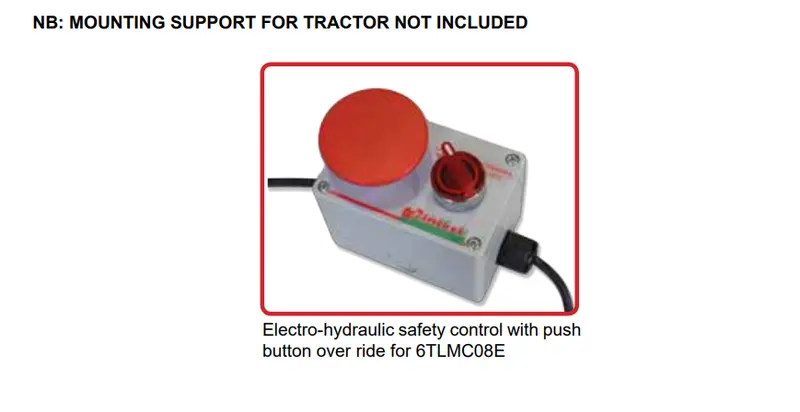

- Electro-Hydraulic Safety System: Features electro-hydraulic safety controls with a push-button override and maximum pressure valve for safe operation during fieldwork.
Detailed Specifications
| Property | Value |
|---|---|
| Model | Twin Turbo Middle with Blades |
| A (Row Width in inches) | 57 – 87 |
| B (Frame Extension in inches) | 83 – 112 |
| C (Displacement in inches) | 24 |
| Oil Demand (L/min) | 30 |
| Machine Weight (kg) | 550 |
| Required Horsepower (HP) | 60-80 |
Manuals & Documents
Machine Configuration Guide
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and “wear parts” including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
