Products Description

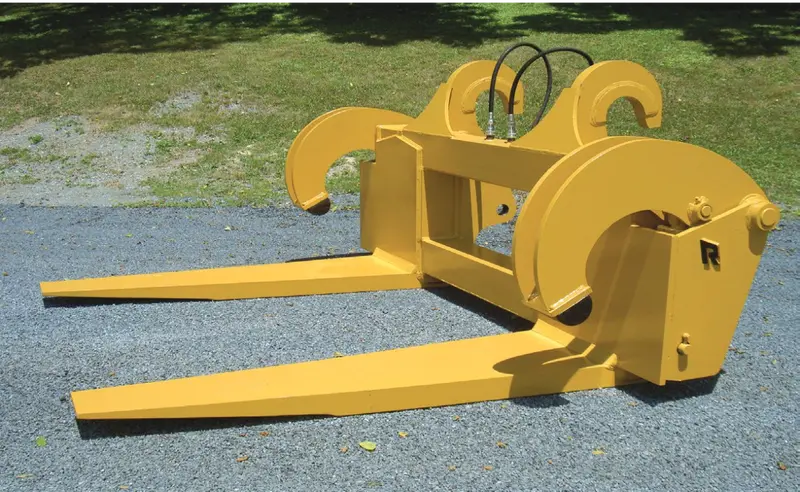

Rockland 102″ & 116″ Width Highwall Push Beam Grapple for Loaders
DESCRIPTION
The Rockland Highwall Push Beam Grapple is specifically engineered for the safe and efficient transport of highwall mining beams. Its tapered forks and rubber-tipped clamps allow for precise and secure handling, minimizing the risk of slipping or damage during operations.
Constructed from high-strength, lightweight steel, this grapple is built to endure demanding conditions while maintaining maneuverability. Available for various machine categories, it is versatile enough to handle one or two beams, improving productivity on mining sites. With a 1-year or 2,000-hour warranty and free product color matching, this attachment is a reliable and customizable solution for your mining needs.
Key Features
- Enhanced Safety: Rubber-tipped clamps provide a secure grip, reducing accidents.
- Efficient Loading: Tapered forks streamline the loading and unloading process.
- Robust Build: Constructed from high-strength, lightweight steel for durability.
- Customizable Design: Choose between QC (quick coupler) or pin-on configurations.
- Flexible Capacity: Handles one or two beams, depending on machine size.
- Warranty Coverage: Backed by a 1-year/2,000-hour warranty for peace of mind.
Detailed Specifications
| Attribute |
Value |
| Tine Size (In.) |
3.5 x 9 x 76 |
| Width Over Tines (In.) |
80 |
| Overall Width (In.) |
102 |
| Overall Height (In.) |
38 |
| Push Beam Quantity |
1 |
| Weight (Lbs.) – QC |
2,965 |
| Weight (Lbs.) – Pin-On |
2,965 |
| Attribute |
Value |
| Tine Size (In.) |
3.5 x 9 x 76 |
| Width Over Tines (In.) |
80 |
| Overall Width (In.) |
102 |
| Overall Height (In.) |
38 |
| Push Beam Quantity |
1 |
| Weight (Lbs.) – QC |
3,775 |
| Weight (Lbs.) – Pin-On |
3,775 |
| Attribute |
Value |
| Tine Size (In.) |
3.5 x 9 x 76 |
| Width Over Tines (In.) |
80 |
| Overall Width (In.) |
102 |
| Overall Height (In.) |
38 |
| Push Beam Quantity |
1 |
| Weight (Lbs.) – QC |
4,015 |
| Weight (Lbs.) – Pin-On |
4,630 |
| Attribute |
Value |
| Tine Size (In.) |
3.5 x 9 x 76 |
| Width Over Tines (In.) |
80 |
| Overall Width (In.) |
102 |
| Overall Height (In.) |
38 |
| Push Beam Quantity |
1 |
| Weight (Lbs.) – QC |
4,550 |
| Weight (Lbs.) – Pin-On |
5,035 |
| Attribute |
Value |
| Tine Size (In.) |
4 x 9 x 76 |
| Width Over Tines (In.) |
80 |
| Overall Width (In.) |
102 |
| Overall Height (In.) |
54 |
| Push Beam Quantity |
1 or 2 |
| Weight (Lbs.) – QC |
5,790 |
| Weight (Lbs.) – Pin-On |
6,680 |
| Attribute |
Value |
| Tine Size (In.) |
4 x 9 x 76 |
| Width Over Tines (In.) |
80 |
| Overall Width (In.) |
102 |
| Overall Height (In.) |
54 |
| Push Beam Quantity |
1 or 2 |
| Weight (Lbs.) – QC |
7,110 |
| Weight (Lbs.) – Pin-On |
8,040 |
| Attribute |
Value |
| Tine Size (In.) |
4 x 9 x 76 |
| Width Over Tines (In.) |
93 |
| Overall Width (In.) |
116 |
| Overall Height (In.) |
54 |
| Push Beam Quantity |
1 or 2 |
| Weight (Lbs.) – QC |
8,340 |
| Weight (Lbs.) – Pin-On |
8,435 |
In Package
- Rockland Highwall Push Beam Grapple: Fully assembled for your selected machine category (30″ to 90″).
- Mounting Hardware: Includes components for QC or pin-on installation.
- Operational Guide: A detailed manual for safe installation, operation, and maintenance.
- Customization Options: Free product color matching for seamless integration with your fleet.
