Description
Product Description
RockZone Rock and Concrete Grinder Attachment | Model Rockwheel C2 | Width 12″ | 12.7HP Grinder | Up to 3 Tons | For Mini & Micro Excavators
DESCRIPTION

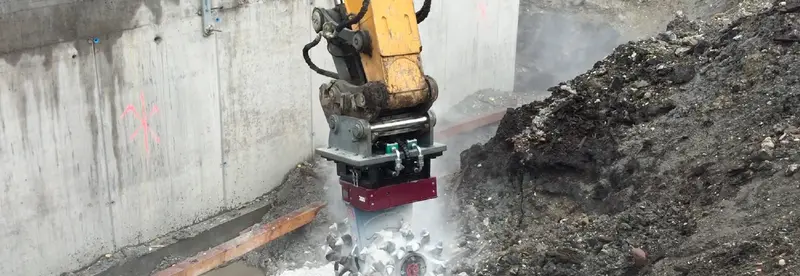

The RockZone Rock and Concrete Grinder Attachment Rockwheel C2 is a compact, powerful, and versatile hydraulic grinder attachment designed to make rock excavation, concrete milling, and trenching easier and more efficient. Powered by a 12.7hp hydraulic motor, this drum cutter is ideal for mini-excavators and small carriers, offering incredible precision and performance in tough environments. The C2’s robust design ensures longevity, and with its optimized power-to-weight ratio, it allows for smoother, more efficient cutting, while reducing vibration and noise. Whether you’re handling asphalt, rock, or concrete, the Rockwheel C2 is your go-to tool for efficient grinding and material reuse. This attachment can be used in various industries, including mining, demolition, and construction. Built with high durability and easy maintenance, the Rockwheel C2 is perfect for smaller projects that require heavy-duty performance without the bulk of larger units.
Key Features
- 12.7hp Hydraulic Power The Rockwheel C2 delivers a powerful 12.7hp (9.5kW) motor, providing consistent and reliable performance for small excavators up to 3 tons.
- Compact and Lightweight Design At only 145 lbs (66 kg), this lightweight drum cutter is designed to work efficiently with mini excavators and demolition robots, ensuring excellent maneuverability.
- High Precision Cutting With a 12″ drum width and 32 picks, the Rockwheel C2 provides high precision and smooth cuts in challenging materials such as rock, concrete, and asphalt.
- Reduced Vibration and Noise Advanced engineering minimizes vibration and noise, creating a more comfortable working environment for operators and increasing the longevity of your equipment.
- Max Torque of 420 ft/lbs (570 Nm) With 420 ft/lbs of torque, the Rockwheel C2 can handle tough surfaces, delivering maximum power for effective cutting and grinding.
- Hydraulic Efficiency Designed to work with hydraulic systems that require flow rates between 7.8-15 GPM (30-60 L/min), this attachment offers flexible compatibility with various excavators.
- Protected Motor Technology Equipped with a motor protection valve, the Rockwheel C2 protects the hydraulic motor from pressure spikes, ensuring long-term reliability.
- Versatile Applications Perfect for rock excavation, trenching, mine scaling, concrete milling, and demolition, the Rockwheel C2 excels in both soft and hard ground conditions.
- Optimized Pick Lacing The Rockwheel C2 features an optimized pick arrangement that ensures smooth cutting and reduces wear on the drum and bits.
- Enhanced Durability Built with high-strength materials, this drum cutter is engineered to endure demanding working conditions while maintaining high performance.
- Low Maintenance Chain Drive The maintenance-free chain drive system provides continuous operation without frequent service interruptions, lowering downtime.
- Ideal for Small Excavators The C2 model is perfect for excavators in the 1-3 ton range, making it a versatile and essential tool for compact jobs.
- Maximum Operating Pressure: 3,265 psi (225 bar) The Rockwheel C2 handles operating pressures up to 3,265 psi (225 bar), allowing it to deliver consistent performance in the toughest conditions.
- Increased Productivity With a drum speed of 80-155 RPM and max cutting force of 949 lbs (4.2 kN), the C2 ensures fast and efficient material processing, enhancing job site productivity.
- Reusability of Crushed Materials The crushed material can often be reused directly, helping to reduce waste and save on disposal costs.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | Rockwheel C2 |
| Excavator Class | Up to 3 Tons |
| Hydraulic Power | 12.7 hp (9.5 kW) |
| Required Flow Rate | 7.8-15 GPM (30-60 L/min) |
| Operating Pressure (Max) | 3,265 psi (225 bar) |
| Drum Speed | 80-155 RPM |
| Max Torque | 420 ft/lbs (570 Nm) |
| Max Cutting Force | 949 lbs (4.2 kN) |
| Drum Width | 12 inches (300 mm) |
| Drum Diameter | 10 inches (270 mm) |
| Picks/Bits | 32 |
| Weight (without bracket) | 145 lbs (66 kg) |
| Pick Speed | 354 ft/min (1.4 m/s) at 6.6 UK GPM |
| Max Pressure | 3,265 psi (225 bar) |
| Compatible Excavators | Cat 301, Deere 35G, Komatsu PC35 (for reference) |
| Maintenance | Chain drive, maintenance-free |
