Sidney Root Grapple | Model G3 | Width 44″ | 10-20 GPM | Machine Size 1 Ton | For Skid Steers, Loaders & Excavators
DESCRIPTION

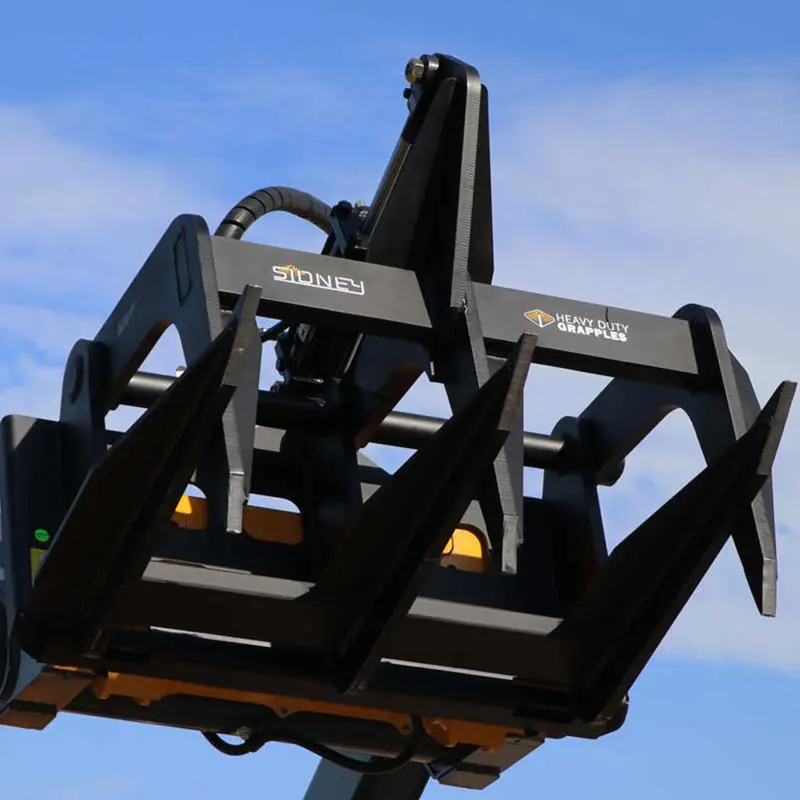

The Sidney G3 Root Grapple is the ultimate tool for heavy-duty lifting and demolition. Built with A572 Grade 50 steel, this high-performance attachment excels in tough environments like concrete removal, rock lifting, logging, and root clearing. Featuring a 44″ width and 10 durable tines, it provides superior gripping power for picking up logs, rocks, and other heavy materials, making it ideal for demanding work in confined spaces.
The G3 Root Grapple is a direct evolution of the popular G2 Grapple, now offering enhanced versatility with 5 tines on both the top and bottom jaws. The tines are designed to ensure maximum grip and control, even when handling smaller debris. With a robust weight of 1,250 lbs, it requires a machine with at least 1750 lbs lift capacity to handle the payload, ensuring reliable performance with your skid steer, loader, or excavator.
Perfect for demolition, construction, and cleanup, the Sidney G3 grapple combines commercial-grade materials with innovative design to deliver outstanding durability and functionality. Whether you’re tackling rugged terrain or fine-tuning your landscaping project, this grapple is built to last and perform.
Key Features
- Durable A572 Grade 50 Steel Manufactured from high-quality US steel, ensuring a rugged, long-lasting performance.
- Heavy-Duty 10 Tines Design The 10 tines provide superior grip, ideal for picking up smaller debris and tough materials.
- Increased Grip Power Tines open to 31.5″, offering excellent material capacity for logs, roots, and more.
- Greasable Pivot Surfaces The machined pivot points are greasable, ensuring smooth operation and extending the lifespan of the attachment.
- Commercial-Grade Construction Grade 8 hardware and high-pressure components deliver exceptional strength and dependability.
- 31.5″ Grapple Opening The opening allows for easy gripping of a variety of materials, with overlap and scissor action when closed.
- Hydraulic Flow of 10-20 GPM This root grapple is engineered for use with machines requiring 10-20 GPM hydraulic flow.
- Heavy-Duty Cylinder Equipped with a 4″ x 8″ cylinder, capable of delivering the mechanical force needed to handle heavy loads.
- Optimal for Tight Spaces Perfect for demolition and cleanup tasks where precision and maneuverability are key.
- 400 Burnell Hardened Tips Featuring hardened tips for enhanced durability and wear resistance.
- High Mechanical Pressure Generates 39,000 lbs of pressure at the tips, providing maximum holding power.
- Easy to Maintain All hardware is Grade 8 and the components are designed for easy maintenance, making long-term use hassle-free.
- Robust 1250 lb Weight Ideal for machines with 50–60 HP and a lift capacity of at least 1750 lbs.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | 23010TGUN |
| Number of Tines | 10 |
| Width | 44″ |
| Weight | 1250 lb |
| Grapple Opening | 31.5″ |
| Cylinder | 4″ x 8″ |
| Hydraulic Flow (GPM) | 10–20 GPM |
| Horsepower Requirements | 50–60 HP |
| Machine Size | 1 Ton |
| Material | A572 Grade 50 Steel |
| Pivot Shaft Diameter | 2.5″ |
| Max Pressure at Tips | 39,000 lbs |
| Hardware | Grade 8 |
| Tine Design | 5 tines top & bottom |
| Machined Pivot Surfaces | Yes, greasable |
| Burnell Hardened Tips | Yes |
