Description
Product Description
Silver Spring Clearway L-Shaped Modular Wheelchair Ramp | Model SSS11L44TT | 36″ W x 11′ L | 1,000 lb Capacity | For Wheelchair & Scooter Access
DESCRIPTION

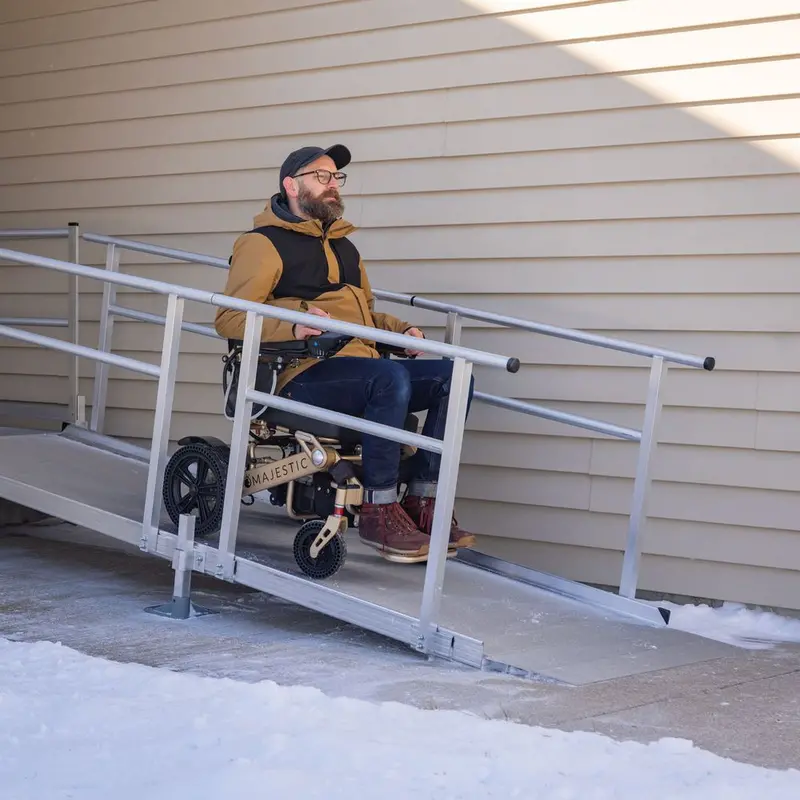

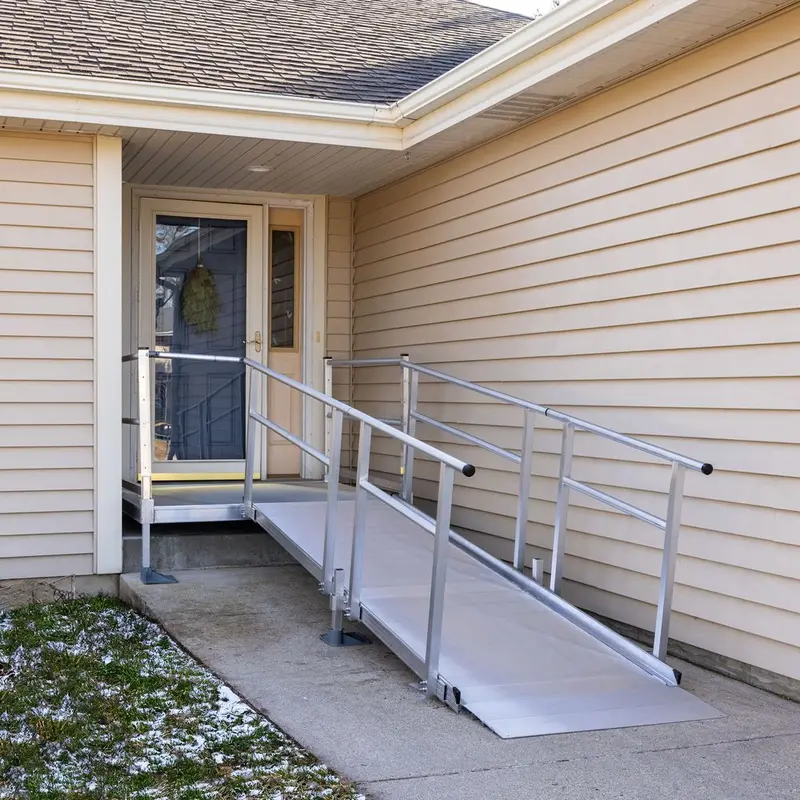

The Silver Spring Clearway L-Shaped Modular Wheelchair Ramp is a thoughtfully engineered accessibility solution designed to restore freedom, safety, and independence at home. Built in the USA from high-strength, rust-proof aluminum, this modular ramp system features an 11′ total ramp length with a 4′ x 4′ top platform and 4′ x 4′ turn platform, making it ideal for tight entryways that require a directional change.
With a 36″ usable width and a robust 1,000 lb weight capacity, it confidently supports wheelchairs, scooters, walkers, rollators, and bariatric mobility devices. The non-slip extruded aluminum surface delivers reliable traction in wet or dry conditions, while height-adjustable legs allow slope configurations from 1:6 to 1:14. Designed for fast assembly with minimal tools, this ramp arrives complete no missing parts, no extra ordering just dependable access where it matters most.
Key Features
- Modular L-Shaped Design allows flexible left, right, or straight configurations to fit residential doorways and challenging exterior layouts
- 1,000 lb Heavy-Duty Capacity supports power wheelchairs, mobility scooters, and bariatric users with rock-solid stability and confidence
- 36″ Wide Accessible Pathway provides comfortable clearance for wheelchairs, walkers, and caregivers assisting from either side
- Non-Slip Aluminum Surface uses raised extruded ribs to enhance traction and reduce slip risk in rain, snow, or damp conditions
- Height-Adjustable Support Legs easily fine-tune ramp slope from 1:6 to 1:14 to match your available space and rise needs
- Complete Ramp Kit Included ships with ramps, platforms, handrails, and hardware so installation can begin right out of the box
- 4′ x 4′ Top Platform creates a safe, level resting area at door thresholds for smooth transitions in and out of the home
- 4′ x 4′ Turn Platform enables safe directional changes for mobility devices where straight ramp runs aren’t possible
- Tongue-and-Groove Connections ensure exceptional structural stability while reducing hardware complexity during assembly
- Two-Line Aluminum Handrails provide continuous support and balance for users and caregivers during ascent and descent
- Rust-Free Aluminum Construction eliminates painting, corrosion, and long-term maintenance concerns for outdoor use
- Smooth Ground Transition Plate minimizes bumps at the ramp base, protecting wheels and reducing jarring movement
- Minimal Tool Assembly saves time and effort, making it ideal for homeowners, caregivers, and contractors alike
- Residential Accessibility Solution perfect for home entrances, patios, garages, and temporary or permanent installations
- Made in the USA Quality delivers trusted craftsmanship, precision engineering, and dependable long-term performance
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Silver Spring |
| Model Number | SSS11L44TT |
| Ramp Style | L-Shaped Modular Wheelchair Ramp |
| Total Ramp Length | 11′ |
| Usable Width | 36″ |
| Top Platform Size | 4′ x 4′ |
| Turn Platform Size | 4′ x 4′ |
| Overall Width | 178-19/50″ |
| Total Length (Assembled) | 10′ 10-3/4″ |
| Maximum Weight Capacity | 1,000 lbs |
| Material | High-Strength Aluminum |
| Surface Type | Non-Slip Extruded Aluminum |
| Slope Range | Adjustable from 1:6 to 1:14 |
| Product Weight | 379 lbs |
| Compatibility | Wheelchairs, Scooters, Walkers, Rollators |
| Country of Manufacture | Made in the USA |
