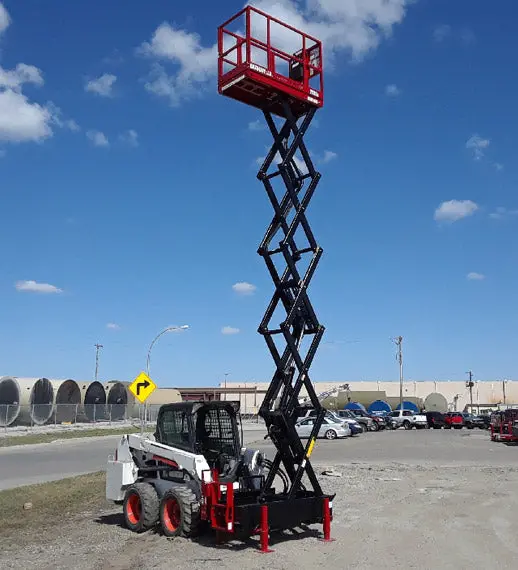

Skid‑Lift Hydraulic Scissor Lift Attachments | Model 2306S | Working Height 29′ | 15-20 GPM | For Skid Steers
DESCRIPTION
Teach your skid steer loader or tractor new tricks with Skid‑Lift. Designed to pair the advantages of a scissor lift with the flexibility of skid steers and tractors, Skid‑Lift provides a safe working platform, tremendous reach, and the ability to work on uneven terrain. Powered by your machine’s auxiliary hydraulics, it eliminates costly components like pumps, batteries, and drive motors, resulting in low maintenance and low ownership cost. Compact, rugged, and versatile, Skid‑Lift is ideal for construction, maintenance, and overhead applications in all weather conditions.
Advantages of Skid‑Lift vs. Standard Scissor Lifts
- Cost Savings – Uses your existing skid steer hydraulics, eliminating the need for separate motors, pumps, or batteries.
- Uneven Terrain Capability – Works safely on slopes and rough ground where traditional scissor lifts struggle.
- All-Surface Operation – Performs reliably on dirt, gravel, concrete, or grass.
- Low Maintenance – Fewer components mean less upkeep and reduced downtime.
- Flexible Attachment Options – Quick attach plate for skid steers or optional 3‑point mount for tractors.
- Simplified Design – Eliminates expensive drive motors, wheels, and electronics found in other lifts.
- Easy Storage – No batteries or pumps to worry about during off-season storage.
- Lower Ownership Cost – More affordable to buy, operate, and maintain compared to conventional lifts.
Key Features
- 29′ Working Height / 23′ Platform Height – Maximum reach among Standard models for tall structures and overhead projects.
- 6′ × 30″ Deck Size – Larger platform provides extra workspace and stability.
- 2,050 lbs Weight – Heavy‑duty build designed for rugged applications.
- 700 lbs Lift Capacity – Higher load rating for multiple workers and heavier tools.
- One Side Attach Plate (End Optional) – Optional end plate improves positioning along buildings and reduces repositioning.
- Hydraulic Flow Requirement: 15–20 GPM – Requires higher hydraulic flow for extended lift performance.
- All‑Terrain Stability – Adjustable legs expand footprint and compensate for uneven or sloping ground.
- Compact Transport Design – Fits on standard skid steer trailers; forklift pockets for easy loading/unloading.
- Low Maintenance Ownership – Powered by skid steer hydraulics, eliminating pumps, batteries, and electronics.
- Durable Steel Construction – Rugged frame built for long service life in demanding environments.
Detailed Specifications
Skid‑Lift 1505S Model
| Specification |
Details |
| Working Height |
21′ |
| Platform Height |
15′ |
| Deck Size |
5′ × 30″ |
| Weight |
1,500 lbs |
| Lift Capacity |
550 lbs |
| Attach Plates |
One side attach plate (end optional) |
| Hydraulic Flow (GPM) |
10–15 GPM |
Skid‑Lift 1805S Model
| Specification |
Details |
| Working Height |
24′ |
| Platform Height |
18′ |
| Deck Size |
5′ × 30″ |
| Weight |
1,820 lbs |
| Lift Capacity |
550 lbs |
| Attach Plates |
One side attach plate (end optional) |
| Hydraulic Flow (GPM) |
10–15 GPM |
Skid‑Lift 2306S Model
| Specification |
Details |
| Working Height |
29′ |
| Platform Height |
23′ |
| Deck Size |
6′ × 30″ |
| Weight |
2,050 lbs |
| Lift Capacity |
700 lbs |
| Attach Plates |
One side attach plate (end optional) |
| Hydraulic Flow (GPM) |
15–20 GPM |
Skid‑Lift 1908E HD Model
| Specification |
Details |
| Working Height |
25′ |
| Platform Height |
18.8′ |
| Deck Size |
6′2″ × 34″ + 22″ extension (8′ total) |
| Weight |
2,400 lbs |
| Lift Capacity |
1,000 lbs (main deck) / 500 lbs (extension) |
| Attach Plates |
End and side attach plates included |
| Special Feature |
±4° side tilt capability |
| Hydraulic Flow (GPM) |
15–20 GPM |
