Description
Product Description
TAG Paddle Style Top Clamp Log & Lumber Forks Class 600 | Tine Lengths 60″–84″ | Machine Size 25–32.5 Tons | For Wheel Loaders
DESCRIPTION
The TAG’s Log & Lumber Forks with Paddle Clamp are engineered to dominate tough timber yard tasks by offering maximum clamping surface area and durable build quality for mid-sized wheel loaders. Designed for Class 600 machines in the 25–32.5 ton range, this fork system incorporates TAG’s robust boxed-tine carriage with a wide-profile paddle clamp—delivering unmatched grip for lumber stacks, logs, and bundled materials.
Each model is constructed with high-strength steel components, including oversized clamp plates, welded gussets, and optional tall back stops. Adjustable rod-mounted tines and split lock collars enable flexible tine spacing while protecting internal rods. Fixed and oscillating rod options are available to tackle varied terrain. Requires a third-function hydraulic circuit to power the clamp mechanism.
Key Feature
- Paddle Style Clamp Largest top clamp surface available—designed to grip tall and wide lumber stacks securely.
- Heavy-Duty Carriage Structure Full-length gussets and reinforced clamp towers maximize durability and load stability.
- Rod-Mounted Tines with Split Lock Collars Allow adjustable tine spacing while protecting structural rods from wear.

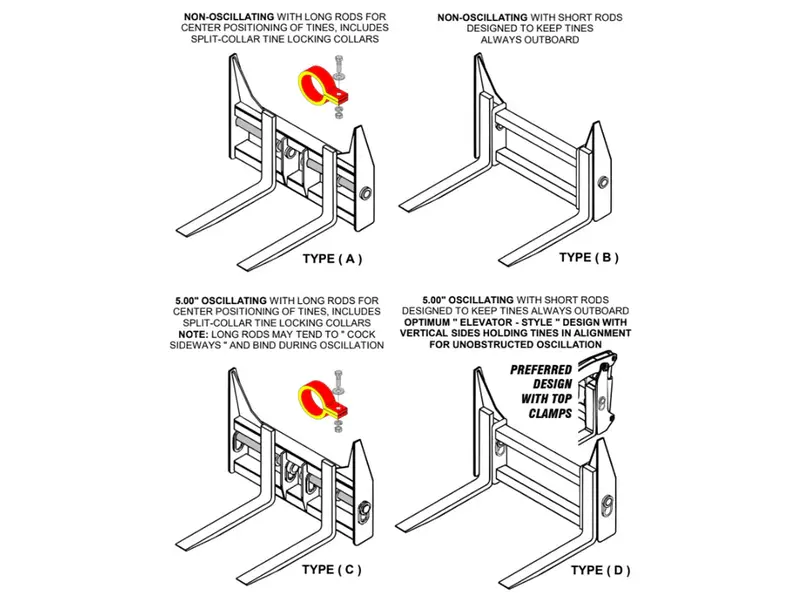

- Fixed or Oscillating Rod Options Oscillating rods improve adaptability on uneven or shifting log piles.
- Single-Piece Clamp Plates Welded steel construction ensures even clamping pressure and long-term reliability.
- Optional Tall Single-Piece Back Stops Ideal for vertical load containment in mill yards or timber transfer operations.
- Mount Configurations Available as Pin-On or Quick Coupler versions to fit a wide range of machines.
- Hydraulic Requirements Third-function hydraulics required for clamp activation.
Detailed Specifications
| SKU # | Tine Size | Weight (lbs) |
|---|---|---|
| P600PTC10660 | 3.5″ x 8″ x 60″ | 5,525 |
| P600PTC10672 | 3.5″ x 8″ x 72″ | 5,725 |
| P600PTC10684 | 3.5″ x 8″ x 84″ | 5,925 |
| QC600PTC10660 | 3.5″ x 8″ x 60″ | 5,525 |
| QC600PTC10672 | 3.5″ x 8″ x 72″ | 5,725 |
| QC600PTC10684 | 3.5″ x 8″ x 84″ | 5,925 |
