TAG Heavy-Duty Rock Bucket – 36–84 Inch Width, Built for 60–70 Ton Excavators

Description

Product Description

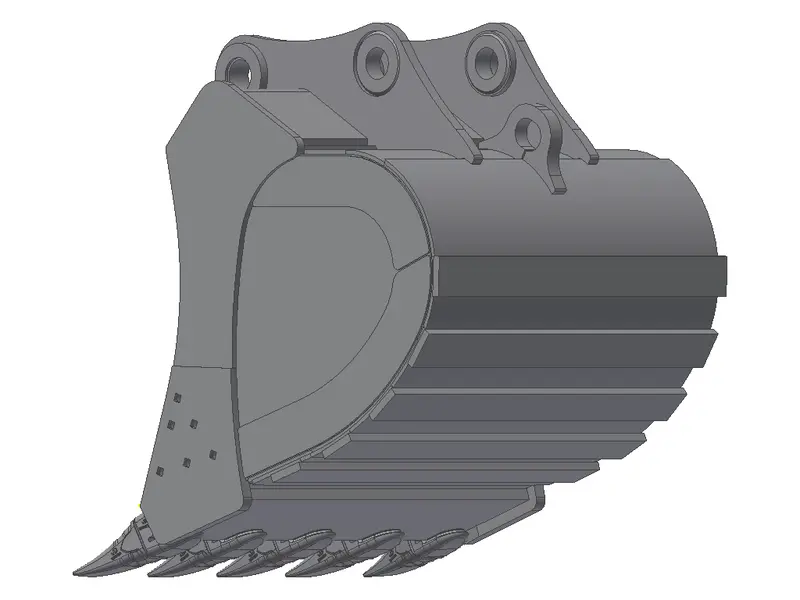

TAG Severe Duty Rock Bucket | Width 36″-84″ | Machine Size 60-70 Ton | For Excavators

DESCRIPTION

The TAG Severe Duty Rock Bucket Series is engineered for high-impact excavation in rocky, abrasive, and extreme soil conditions. Designed for excavators weighing 120,000–140,000 lbs (60–70 tons), these buckets deliver faster loading cycles, greater yardage per pass, and superior durability in the harshest environments.

Built on the foundation of TAG’s heavy-duty line, the severe duty series adds enhanced features including larger triangle gussets, full-width transverse wear strips, extended bucket ears, and full side wear plates. These reinforcements reduce wear and failure rates, making them ideal for quarry work, demolition, and high-abrasion applications.

Key Features

• High-Strength Steel: Built from durable steel (e.g., Hardox) for tough applications
• Full Side Wear Plates: Provides protection against abrasive environments
• Extended Bucket Ears: Ensures efficient material handling
• Replaceable Wear Strips: Full-width wear strips enhance bucket lifespan
• Armor Along Heel Edges: Additional reinforcement for harsh conditions
• Customizable Width: Ranges from 32″ to 84″ to suit various applications
• 2.5″ or 3″ Lip Options: Choose based on specific requirements
• Secure Pin-On Mounting: Standard OEM mounting style with two horizontal pins
• Efficient Loading: Optimized design for quicker loading and greater capacity
• Reduced Downtime: Robust construction minimizes wear and maintenance needs

Detailed Specifications

Specification	36550X3	42550X3
Width	36″	42″
Capacity (yd³)	2.375	2.875
No. of Teeth	3	4
Weight	5,400 lbs (2.70 tons)	6,100 lbs (3.05 tons)

Specification	48550X3	54550X3
Width	48″	54″
Capacity (yd³)	3.250	3.625
No. of Teeth	4	5
Weight	6,800 lbs (3.40 tons)	7,500 lbs (3.75 tons)

Specification	60550X3	66550X3
Width	60″	66″
Capacity (yd³)	4.000	4.500
No. of Teeth	5	5
Weight	8,200 lbs (4.10 tons)	8,900 lbs (4.45 tons)

Specification	72550X3	78550X3
Width	72″	78″
Capacity (yd³)	4.875	5.375
No. of Teeth	6	6
Weight	9,600 lbs (4.80 tons)	10,300 lbs (5.15 tons)

Specification	84550X3
Width	84″
Capacity (yd³)	5.875
No. of Teeth	7
Weight	11,000 lbs (5.50 tons)

Host Machine Compatibility

BRAND	MODELS
CASE	CX700
CAT	245, 245 MASS EX
DEERE	550, 600
DOOSAN	DX520
HITACHI	EX550HD, EX550BE
KOBELCO	SK600
KOMATSU	PC600-8, PC600, PC650-3
LINK BELT	700LX, LS7400
