Tanco Round Bale Wrapper | Model D66-A100-J Autowrap | Width 49″ | 25-60 GPM | 40-60 HP | For Skid Steers, Tractors & Loaders
DESCRIPTIONgt5

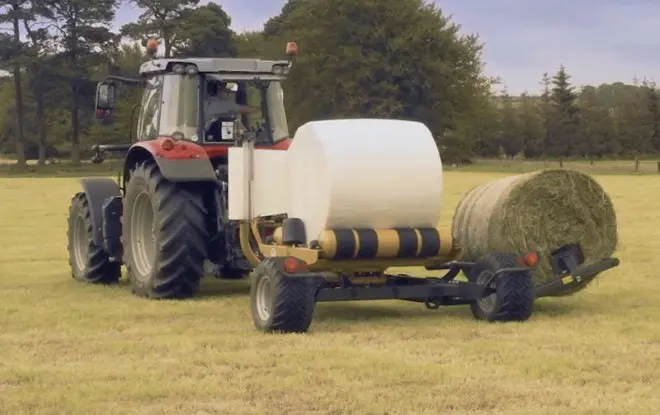

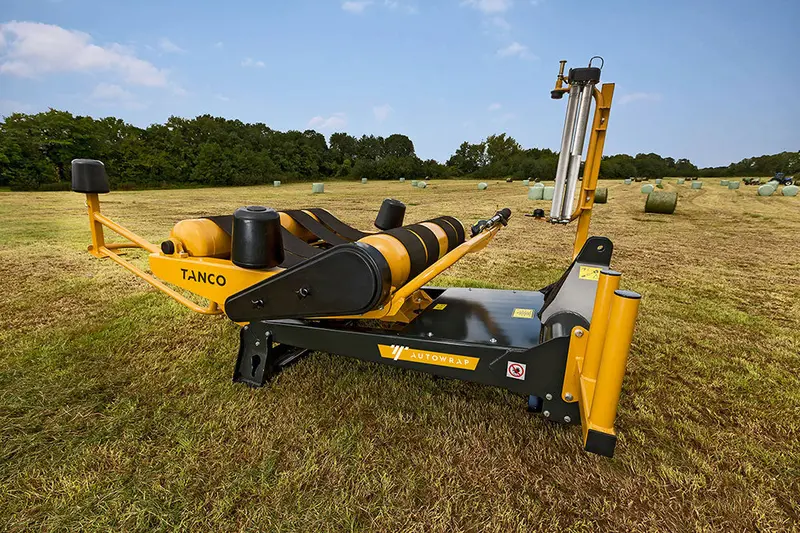

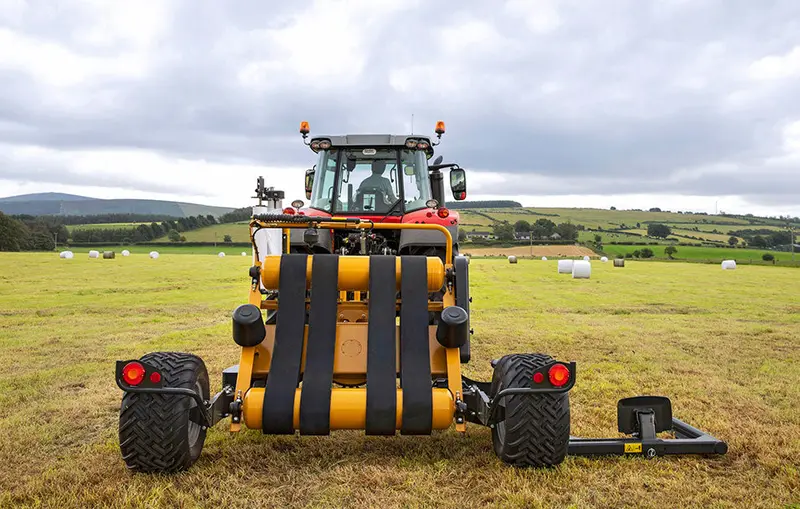

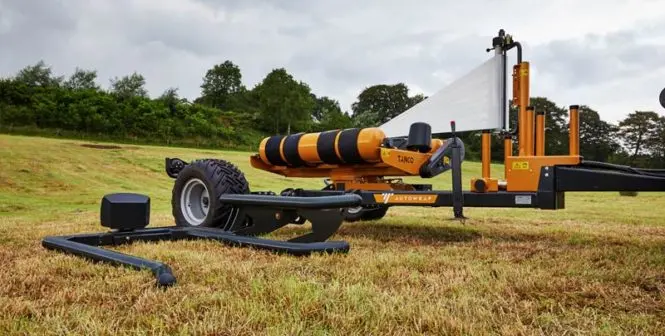

The Tanco D66-A100-J Autowrap is a highly efficient, fully automated round bale wrapper, designed for both individual farmers and contractors who need a reliable, easy-to-use solution for wrapping bales. The A100 Series brings together cutting-edge technology with robust design, offering a compact, lightweight, and highly durable machine that significantly improves bale wrapping productivity. Whether you need to wrap in the field or transport bales, the A100 Series is engineered for versatility, with advanced features like automatic bale loading, wrapping, and unloading with the press of a button.
Efficiency at its best: With a capacity of up to 45 bales per hour, this machine’s automatic functionality allows for seamless operation. The End-Tip Kit ensures that bales are placed on their flat end for maximum plastic coverage, reducing damage and preventing rolling. Plus, with adjustable load arms and extra wide wheels for reduced ground compaction, you can count on long-lasting performance, no matter the terrain.
Key Features
- Automatic Bale Wrapping: With just one button, the A100-J automatically loads, wraps, and unloads bales, improving productivity and efficiency.
- Compact & Robust Design: The A100 Series is lightweight yet durable, engineered for easy handling and transportation.
- Up to 45 Bales per Hour: Boost your bale-wrapping capacity, making it ideal for busy farms or contractors.
- Low Operational Position: Bales are off-loaded directly to the ground without requiring an off-load ramp, saving time and effort.
- End-Tip Kit: Ensure bales don’t roll off the wrapper by placing them on their flat end for optimal plastic coverage.
- Electro/Joystick Hydraulic Control: Choose between joystick or electro hydraulic control for easy and precise operation.
- Dual Stretch Aluminium Dispenser: Offers 55% and 70% stretch options for different types of plastic wrap.

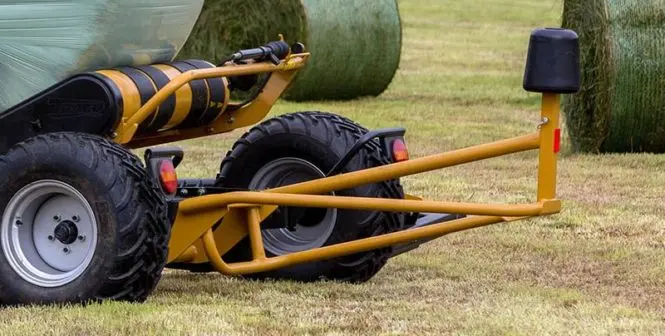

- Heavy-Duty Adjustable Load Arm: Adapts to different bale sizes for flexibility in wrapping.
- Extra Wide Wheels (31 x 15.5-15): Helps reduce ground compaction, making it ideal for soft or wet fields.
- Off-Load Lock: Keeps bales in position for consistent off-loading, even in uneven terrain.
- Hydraulic Cut & Start: Ensures clean cuts and smooth start-up for wrapping.
- Pre-Stretcher: The A100-J model features one 30″ pre-stretcher for consistent wrapping.
- Radio Remote Control Option: Available for the EH model for further operational flexibility.
- Compatible with Various Tractors and Loaders: Works with a range of skid steers, tractors, and loaders, making it a versatile addition to any fleet.
- Optimized for High Efficiency: Designed to minimize weight and waste, maximizing the productivity of your wrapping operation.
Detailed Specifications
| Feature | A100-J Model |
|---|---|
| Transport Length | 13′ 5″ (4.10m) |
| Transport Width | 9′ 0″ (2.76m) |
| Height in Transport | 7′ 9″ (2.41m) |
| Weight | 3,219 lbs (1,460 kg) |
| Wheel Dimensions | 31 x 15.5 -15 |
| Bale Width | 4′ 1″ (1.25m) |
| Bale Diameter (Min-Max) | 3′ 3″ – 5′ (1.00m – 1.50m) |
| Max Bale Weight | 2,205 lbs (1,000 kg) |
| Min. Oil Consumption | 6.6 GPM (25 l/min) |
| Max. Oil Consumption | 16 GPM (60 l/min) |
| Min. Oil Pressure | 2,200 PSI (150 bar) |
| Hydraulic Flow | 25-60 GPM |
| Horsepower | 40-60 HP |
| Free Flow Return | Yes |
| Hydraulic Cut & Start | Yes |
| Joystick Controls | Yes |
| Programmable Computer Controls | Yes |
| Auto-Load Function | Optional |
| Pre-Stretcher | 30″ (750mm) |
