Teagle | Titan Muck Spreader | Titan Series | Models 6 To 17 | Capacity 6.3m³ to 20.1m³ | 90 to 150+ HP | For Tractors
DESCRIPTION

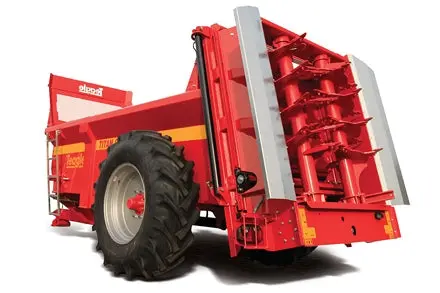

The Teagle Titan Muck Spreader Series is the gold standard for professional-grade manure spreading. Whether you’re managing a smallholding or operating a large-scale agricultural enterprise, the Titan range delivers exceptional performance, robust construction, and unrivaled spreading accuracy all from a brand trusted by generations of farmers.
From the compact Titan 6 to the high-capacity Titan 17, each model is purpose-built to optimize productivity, reduce ground compaction, and deliver uniform nutrient distribution across your fields. With capacities ranging from 6.3m³ to 20.1m³, powerful twin vertical beaters, and precision spreading technologies like ISOBUS weigh cell integration, the Titan series takes the guesswork out of muck spreading.
Backed by premium components, including Hardox steel beaters, high-speed commercial axles, and electronic bed speed control, Teagle Titan spreaders handle everything from poultry litter to heavy farmyard manure with less downtime and more consistency.
Key Features
- Wide Capacity Range (6.3m³–20.1m³) Choose the perfect model for your acreage, livestock volume, and spreading goals.

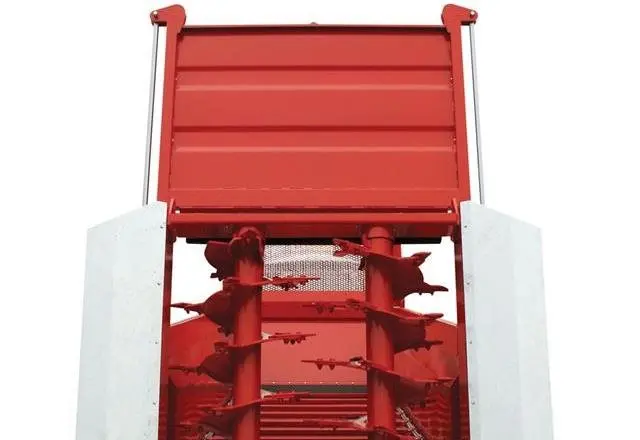

- Precision Spread Pattern Equipped with twin vertical beaters and optional Compost/Poultry Beater Tips for enhanced fragmentation and superior spread width.
- Advanced Control Systems Electronic Bed Speed Control and ISOBUS Variable Weigh Cell Systems allow in-cab calibration and GPS-linked rate adjustments for total spreading accuracy.
- Heavy-Duty Build Quality Constructed from Hardox steel with sprung drawbars and commercial axles for maximum durability and load-bearing performance.

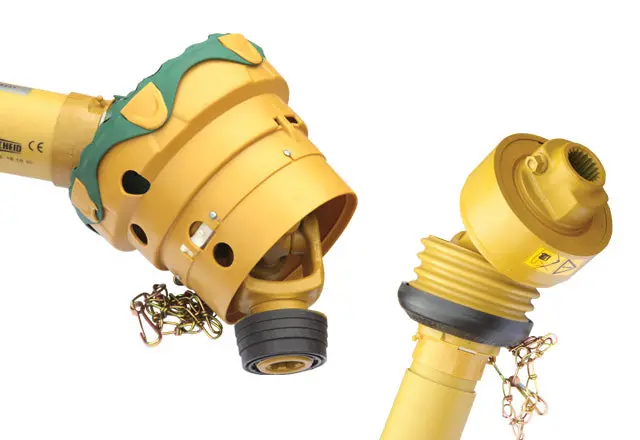

- Versatile PTO Options Available in 540rpm (Titan 6–9) and 1000rpm (Titan 10–17) configurations for compatibility with a wide range of tractors.
- Reduced Soil Compaction Fitted with large flotation tyres such as 650/75 R32 or 650/65 R38, ideal for wet ground and minimal field damage.
- Optional Side Extensions Boost heaped capacity without changing your machine’s footprint maximizing productivity in every load.
- Road-Ready Features Includes LED strobe lights and dual air/hydraulic braking systems, ideal for highway transport between fields.
Detailed Specifications
| Specification | Titan 6 | Titan 8 | Titan 9 |
|---|---|---|---|
| Capacity (Heaped) | 6.3 m³ | 8.1 m³ | 9.3 m³ |
| With Extensions | 7.7 m³ | 10.0 m³ | 11.2 m³ |
| PTO Speed | 540 rpm | 540 rpm | 540 rpm |
| Length (m) | 6.1 | 7.0 | 7.0 |
| Width (m) | 2.6 | 2.6 | 2.6 |
| Height (m) | 2.99 | 2.99 | 3.20 |
| Loading Height (m) | 1.93 | 1.93 | 2.10 |
| Unladen Weight (kg) | 3,380 | 3,660 | 3,880 |
| Optional Tyres | 18.4-34 | 18.4-34 | 580/70 R38 |
| Specification | Titan 10 | Titan 12 | Titan 15 | Titan 17 |
|---|---|---|---|---|
| Capacity (Heaped) | 10.2 m³ | 12.1 m³ | 15.4 m³ | 17.2 m³ |
| With Extensions | 12.4 m³ | 14.8 m³ | 18.0 m³ | 20.1 m³ |
| PTO Speed | 1000 rpm | 1000 rpm | 1000 rpm | 1000 rpm |
| Length (m) | 7.1 | — | 7.92 | 8.52 |
| Width (m) | 2.9 | — | 2.9 | 2.9 |
| Height (m) | 3.29 | — | 3.57 | 3.57 |
| Loading Height (m) | 2.23 | — | 2.51 | 2.51 |
| Unladen Weight (kg) | 5,210 | — | 6,610 | 6,865 |
| Optional Tyres | 650/75 R32 | 650/75 R32 | — | 650/65 R3 |
