Titan Pro Series Pallet Fork for Skid Steers – 6,000 lb Frame, 36″–60″ Class II Blades, Hay Spear Sleeves, 2″ Hitch, 10–25 GPM Flow

Description

Product Description

Titan Attachments Pro Series Pallet Fork | 6,000 lb Frame | 36″–60″ Class II Blades | Hay Spear Sleeves + 2″ Hitch | 10–25 GPM | For  Skid Steers

DESCRIPTION

The Pro Series Pallet Fork Frame is a premium-grade material handling solution built to outperform the Standard Series with a higher 6,000 lb capacity. Engineered for versatile field and jobsite use, this all-in-one frame features a see-through headache rack, slotted carriage bar, and is compatible with Class II pallet fork blades ranging from 36″ to 60″.

Whether you’re managing hay, timber, pallets, or trailers, the welded 2″ receiver hitch and integrated Conus spear sleeves make this frame an indispensable tool for agricultural and industrial operators. With a robust SSQA mount, it pairs seamlessly with any skid steer or compact tractor equipped with a universal quick-attach system.

Key Features

• Universal Skid Steer Quick Tach (SSQA) Compatible with all standard skid steers and tractors with SSQA mounts.
• USA-Built Heavy-Duty Steel Frame High-grade materials with precision welds for maximum durability.
• Fork Blade Compatibility Accepts Class II blades in 36″, 42″, 48″, and 60″ lengths.
• 6,000 lb Frame Capacity Handles demanding pallet loads and transport applications.

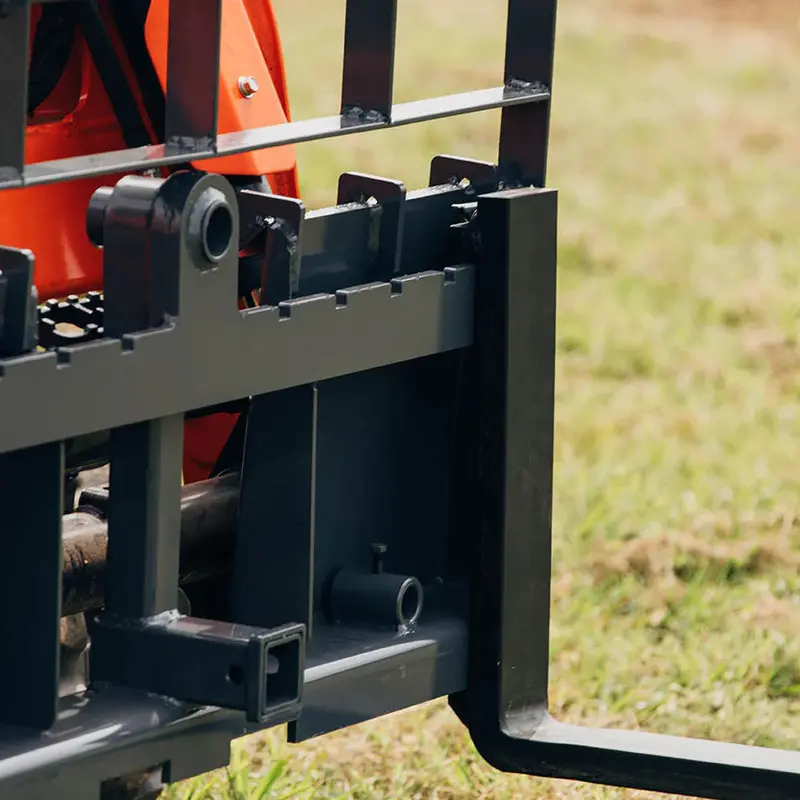

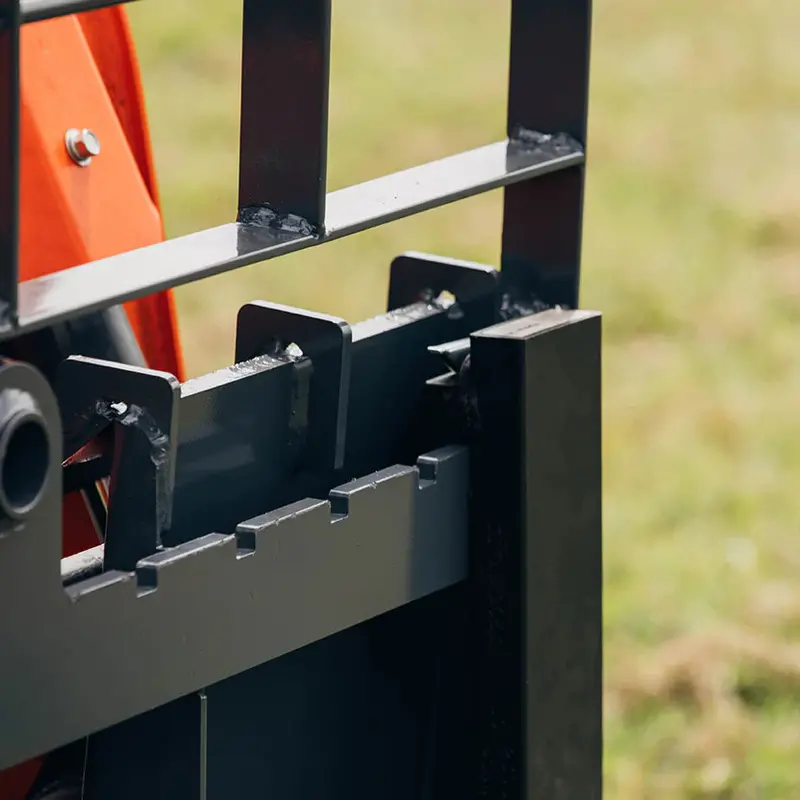

• Slotted Carriage Bar Secure fork mounting with adjustable blade spacing.

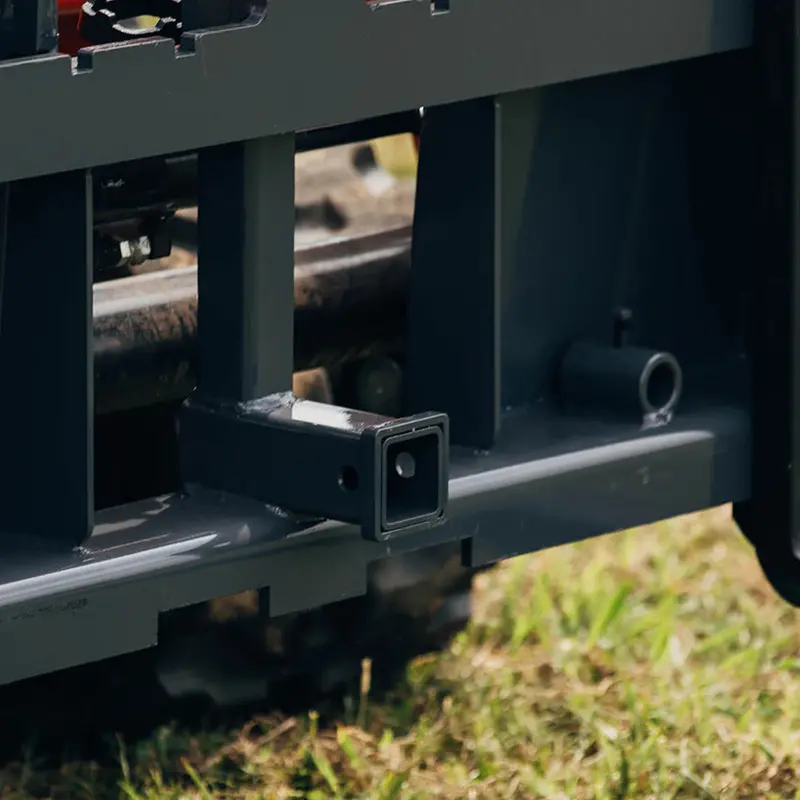

• Integrated 2″ Receiver Hitch Allows trailer towing directly from the fork frame.
• Conus Hay Spear Sleeves Welded Conus 2 (main) and pair of stabilizer sleeves for round bales.

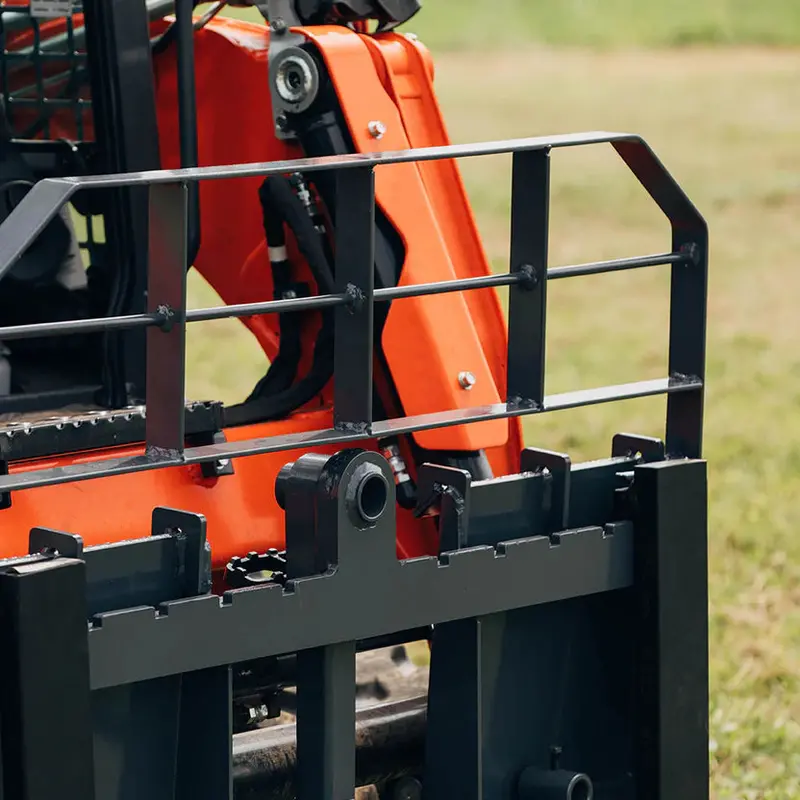

• See-Through Headache Rack Enhances forward visibility and safety during load positioning.
• Powder-Coated Grey Finish Corrosion-resistant and professional in appearance.

Detailed Specifications

Pro Series Pallet Fork Frame — Frame Only vs. 36″ Forks

Attribute	Frame Only	36″ Forks
Overall Height	34″	34″
Overall Width	48.5″	48.5″
Overall Depth	8″	8″
Fork Length	—	36″
Fork Width	—	4″
Fork Thickness	—	1.25″
Upper to Lower Rail	16″	16″
Frame Capacity	6,000 lb	6,000 lb
Fork Capacity (per pair)	—	4,000 lb
Fork Pair Weight	—	160 lb
Frame Weight	195 lb	195 lb
Main Spear Sleeve	Conus 2	Conus 2
Stabilizer Sleeves	2 × Welded	2 × Welded
Hitch Receiver	2″ Welded	2″ Welded
Finish	Powder-Coated Grey	Powder-Coated Grey
Material	Steel	Steel
Mounting Style	SSQA	SSQA
Recommended HP	45–90 HP	45–90 HP

Pro Series Pallet Fork Frame — 42″ vs. 48″ Forks

Attribute	42″ Forks	48″ Forks
Overall Height	34″	34″
Overall Width	48.5″	48.5″
Overall Depth	8″	8″
Fork Length	42″	48″
Fork Width	4″	4″
Fork Thickness	1.25″	1.25″
Upper to Lower Rail	16″	16″
Frame Capacity	6,000 lb	6,000 lb
Fork Capacity (per pair)	4,000 lb	4,000 lb
Fork Pair Weight	180 lb	196 lb
Frame Weight	195 lb	195 lb
Main Spear Sleeve	Conus 2	Conus 2
Stabilizer Sleeves	2 × Welded	2 × Welded
Hitch Receiver	2″ Welded	2″ Welded
Finish	Powder-Coated Grey	Powder-Coated Grey
Material	Steel	Steel
Mounting Style	SSQA	SSQA
Recommended HP	45–90 HP	45–90 HP

Pro Series Pallet Fork Frame — 60″ Forks Only

Attribute	60″ Forks
Overall Height	34″
Overall Width	48.5″
Overall Depth	8″
Fork Length	60″
Fork Width	4″
Fork Thickness	1.25″
Upper to Lower Rail	16″
Frame Capacity	6,000 lb
Fork Capacity (per pair)	4,000 lb
Fork Pair Weight	226 lb
Frame Weight	195 lb
Main Spear Sleeve	Conus 2
Stabilizer Sleeves	2 × Welded
Hitch Receiver	2″ Welded
Finish	Powder-Coated Grey
Material	Steel
Mounting Style	SSQA
Recommended HP	45–90 HP
