Product Description

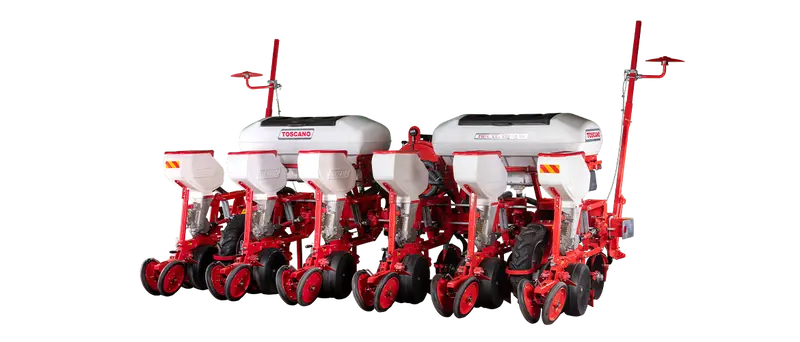

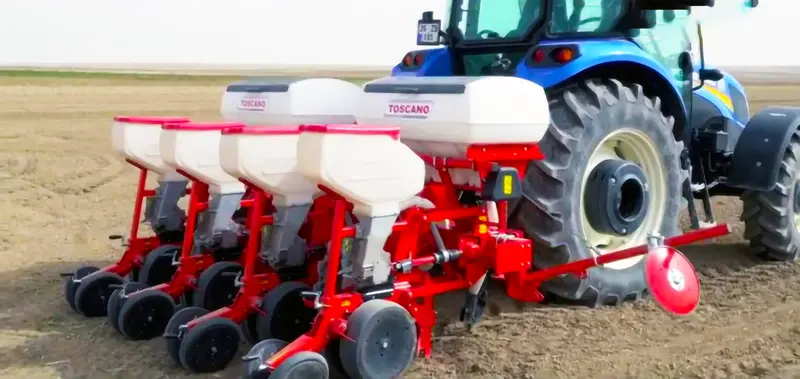

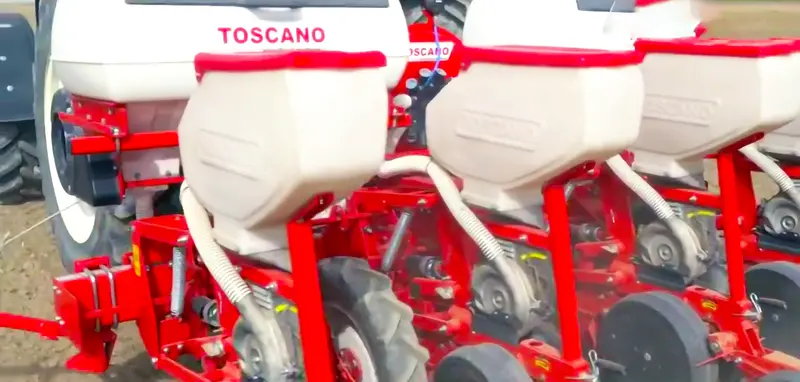

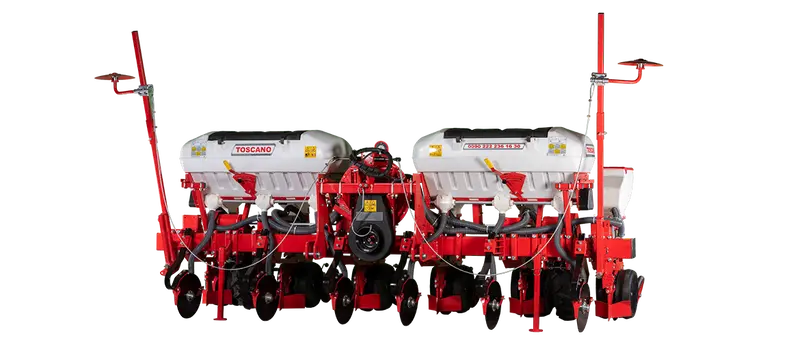

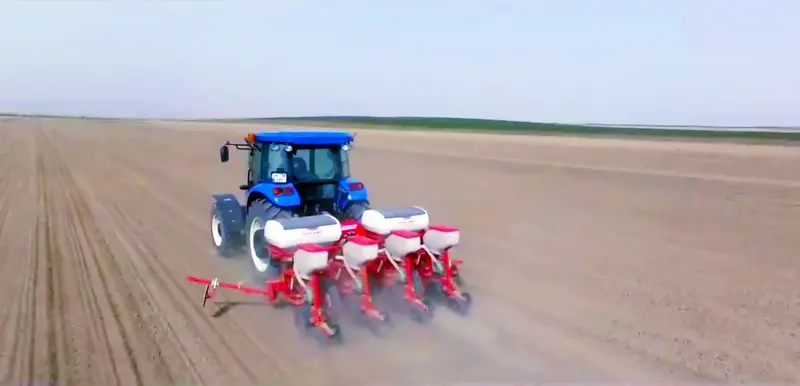

TOSCANO | Pneumatic Seeding Machine – Disc Type | Model 4, 5, 6, 7, 8 & 12 Rows | Total Width 9.84 to 19.03 Feet | HorsePower 60-130 HP | For Tractor
DESCRIPTION
The Toscano Pneumatic Seeding Machine – Disc Type is a state-of-the-art solution for precision sowing across various soil conditions and crops such as sunflower, corn, cotton, beet, soy, beans, chickpeas, zucchini, and other seeds requiring precise placement. Its advanced disc-based design ensures that plant residues in the field do not obstruct its operation, making it ideal for efficient seeding in challenging conditions.
Equipped with a 12-step precision seeding system, this machine eliminates seed wastage, ensuring optimal plant growth while maintaining uniform spacing. Depth control is achieved through strategically placed wheels, while V-shaped pressure wheels provide exceptional seed compression and prevent unwanted soil layering. The adjustable row spacing and seed tank cap allow for quick customization and hassle-free operations. With a Power Requirement ranging from 44 to 96 kW / 60 to 130 HP, this pneumatic seeding machine combines cutting-edge technology with robust performance, making it an indispensable tool for modern agriculture.
Key Features
- Power Requirement: Designed to operate efficiently with tractors requiring 44-96 kW / 60-130 HP, ensuring compatibility with diverse setups.
- Precision Seeding: 12-step precision system prevents missing or excessive seeds, ensuring uniform spacing and optimal crop growth.
- All-Terrain Performance: Disc-based design enables seamless operation even in fields with plant residues.
- Depth Control: Wheels on both sides of the units allow for precise depth adjustments during sowing.

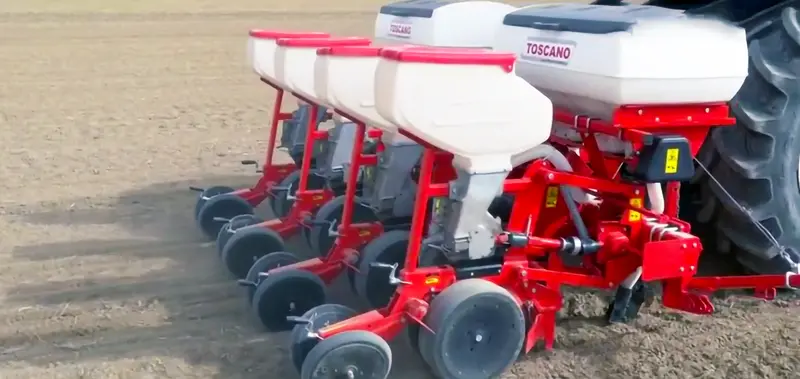

- Seed Compression: V-shaped pressure wheels ensure proper seed compression, preventing soil layering and enhancing germination.
- Customizable Row Spacing: Adjustable row widths to cater to different crops and planting requirements.
- Easy Maintenance: The seed tank cap enables quick and effortless emptying after sowing.

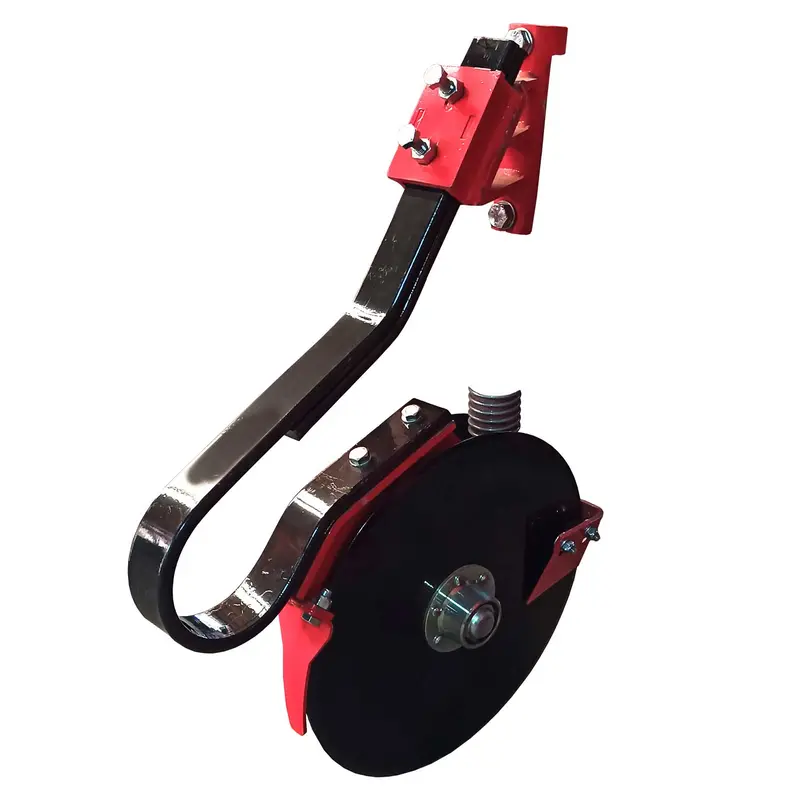

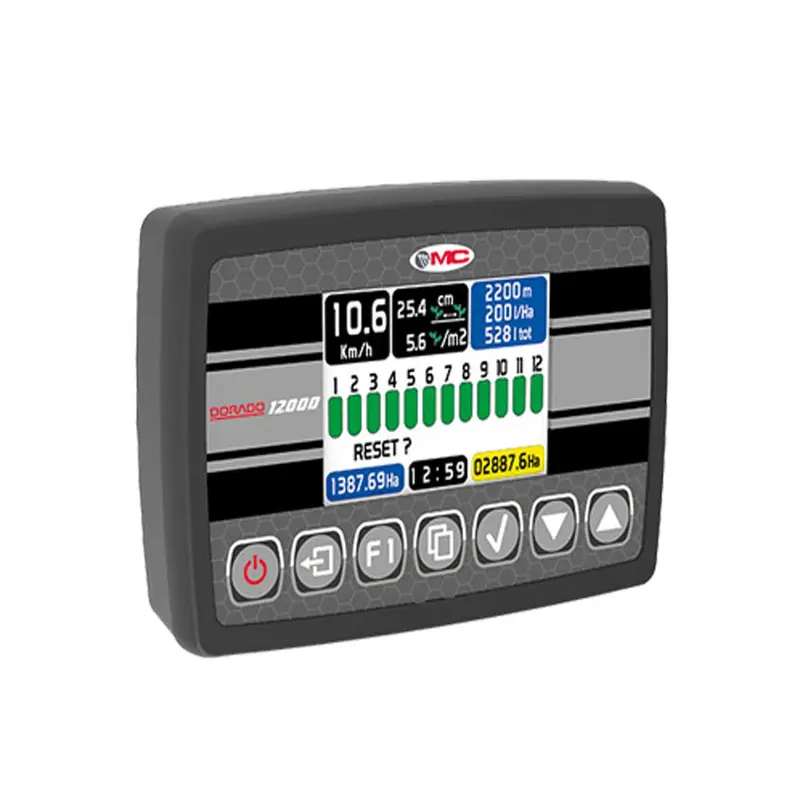

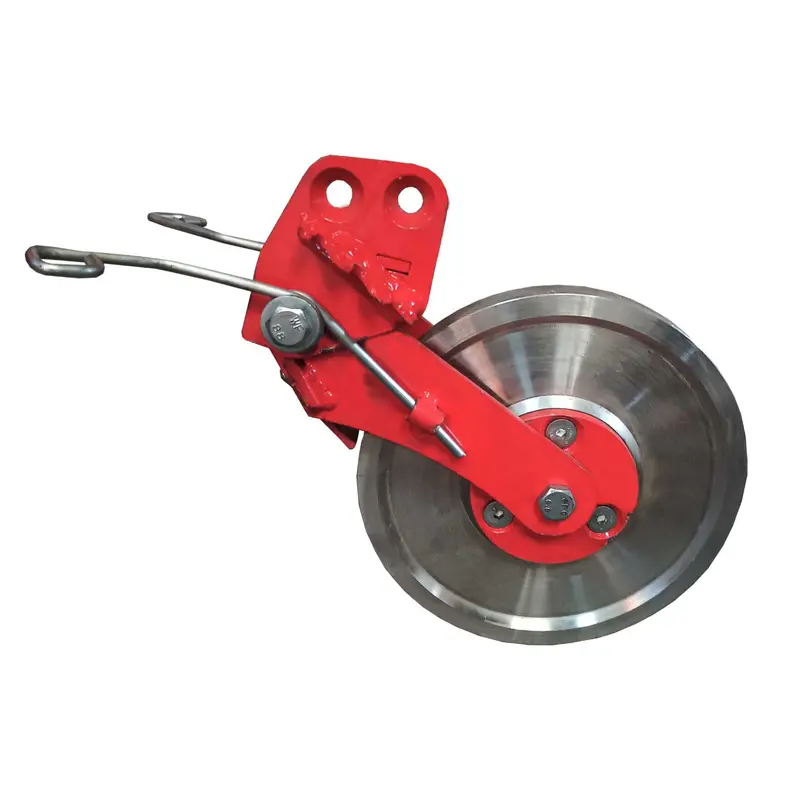

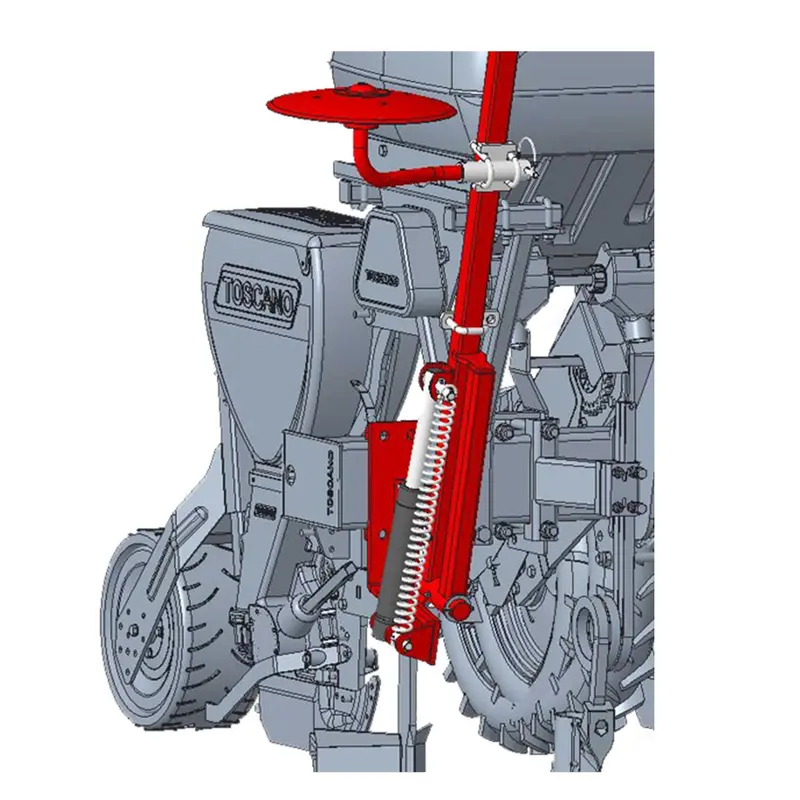

- Optional Features: Front V finger weeder discs, plant stem cutter discs, seed flow control device, micro granule unit, hydraulic marker system, fertilizer spreading system, and complete seed press wheels for enhanced functionality.
Detailed Specifications
| Specification | 4 & 5 Rows | 6 & 7 Rows | 8 & 12 Rows |
|---|---|---|---|
| Model | 4 Rows / 5 Rows | 6 Rows / 7 Rows | 8 Rows / 12 Rows |
| Power of Tractor | 44–48 kW / 60–65 HP 52–55 kW / 70–75 HP | 60–66 kW / 80–90 HP 66–74 kW / 90–100 HP | 74–82 kW / 100–110 HP 85–96 kW / 110–130 HP |
| Total Width (ft) | 9.84 ft / 11.48 ft | 13.12 ft / 16.4 ft | 19.03 ft / 19.03 ft |
| Weight Without Fertilizer | 1,050 kg / 1,200 kg | 1,250 kg / 1,450 kg | 1,600 kg / 1,900 kg |
| Weight With Fertilizer | 1,230 kg / 1,350 kg | 1,500 kg / 1,850 kg | 2,000 kg / 2,250 kg |
| Seeding Capacity | 36 × 4 L / 36 × 5 L | 36 × 6 L / 36 × 7 L | 36 × 8 L / 36 × 12 L |
| Fertilizer Capacity | 160 × 2 L / 200–240 × 2 L | 200–240 × 2 L / 300 × 2 L | 300 × 4 L / 160 × 4 L |
| PTO (RPM) | 540 | 540 | 540 |
| Distance Between Rows (cm) | 45–75 cm | 45–75 cm | 45–75 cm / 45–50 cm |
