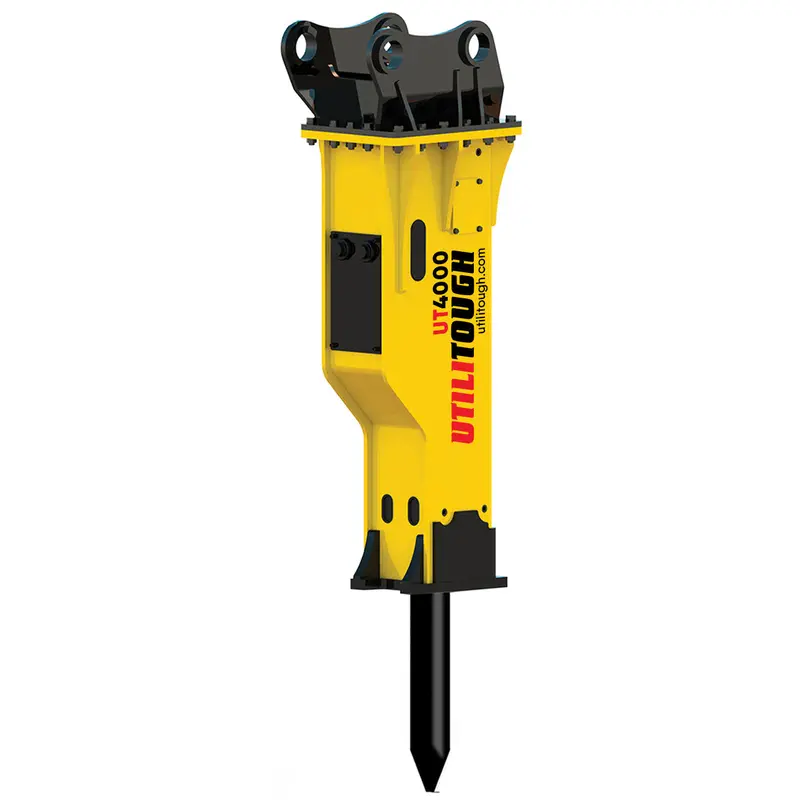

Utilitough Excavator Whisper Series | UT Series | Energy Class 225-11000 ft-lb | Machine Size 1.2-40 Tons | For Excavators
DESCRIPTION
The UtiliTough Excavator Whisper Series is designed for high performance and versatility in various excavation applications. These hydraulic breakers are suitable for a wide range of excavators, providing powerful impact energy and efficient operation.
Key Characteristics:
- Versatile Range: Available in models to suit carrier weights from 1.2 to 40tons.
- Durable Construction: Built to withstand heavy-duty use with robust materials and design.
- High-Performance: Delivers powerful impact energy to efficiently break tough materials.
- Hydraulic Compatibility: Compatible with hydraulic flows ranging from 3 to 111 gpm, ensuring versatility across different machines.
- Ease of Maintenance: Low maintenance requirements with easy assembly and disassembly for quick on-site repairs.
Key Features
- Prevention of Chisel Stop Pin Loosening: Ensures consistent performance and safety.
- No Oil Loss When Changing the Control Valve: Maintains hydraulic system integrity.
- Lower Vibration and Tighter Fastening: Enhances stability and reduces wear between the power cell and bracket.
- Two-Step Stroke and Idle Blow Preventing Structure: Improves efficiency and performance.
- Stronger Impact Power: Delivers more powerful blows for effective breaking.
- Low-Noise Operation: Designed to operate with reduced noise levels.
- Auto-Greasing System: Models UT1000 and above include this feature for easier maintenance and longer lifespan.
- Longer Chisel Point and Larger Through-Bolt: These features enhance the durability of the hydraulic breakers.
- Minimized Welding on Bracket Fabrication: Reduces potential weak points, strengthening overall durability.
- Operator-Friendly Design: Simplifies operation and reduces fatigue.
- Simple Assembly and Disassembly: Facilitates quick setup and maintenance.
- On-Site Control Valve Replacement: Allows for easy and speedy replacement, minimizing downtime.
- Easy Maintenance: Saves time and costs, extending the lifetime of parts.
Detailed Specifications
- Impact Energy Class: Varies by model, providing powerful performance for various applications.
- Operating Weight: Ranges from 341 lbs to 11,522 lbs, depending on the model.
- Blow Rate: Adjustable blow rate for precise control during operation.
- Required Oil Flow (gpm): Compatible with hydraulic flows from 3 to 111 gpm, depending on the model.
- Tool Diameter: Features a tool diameter suitable for effective breaking power.
- Safety and Protection: Includes a high-strength push bar and motor cover for added protection during operation.
- Universal Quick Attach: Compatible with most excavators, allowing for quick and easy attachment.
UT-225 and UT-500
| Specification | UT-225 | UT-500 |
|---|---|---|
| Carrier Weight Range (ton) | 1.2-3 | 2.5-4.5 |
| Operating Weight (lb) | 341 | 417 |
| Required Oil Flow (gpm) | 3-7.93 | 6.6-13.21 |
| Impact Energy Class (ft-lb) | 225 | 500 |
UT-650 and UT-850
| Specification | UT-650 | UT-850 |
|---|---|---|
| Carrier Weight Range (ton) | 4-7 | 6-9 |
| Operating Weight (lb) | 761 | 946 |
| Required Oil Flow (gpm) | 10.51-18.49 | 13.21-23.78 |
| Impact Energy Class (ft-lb) | 650 | 850 |
UT-1000 and UT-1800
| Specification | UT-1000 | UT-1800 |
|---|---|---|
| Carrier Weight Range (ton) | 7-14 | 10-15 |
| Operating Weight (lb) | 1,482 | 2,130 |
| Required Oil Flow (gpm) | 15.85-26.24 | 21.13-29.06 |
| Impact Energy Class (ft-lb) | 1,000 | 1,800 |
UT-2800 and UT-4000
| Specification | UT-2800 | UT-4000 |
|---|---|---|
| Carrier Weight Range (ton) | 15-18 | 18-26 |
| Operating Weight (lb) | 3,120 | 3,843 |
| Required Oil Flow (gpm) | 34.34-39.63 | 34.34-39.63 |
| Impact Energy Class (ft-lb) | 2,800 | 4,000 |
UT-6000 and UT-11000
| Specification | UT-6000 | UT-11000 |
|---|---|---|
| Carrier Weight Range (ton) | 27-35 | 30-40 |
| Operating Weight (lb) | 5,183 | 7,018 |
| Required Oil Flow (gpm) | 39.63-50.19 | 52.83-66.04 |
| Impact Energy Class (ft-lb) | 6,000 | 11,000 |
