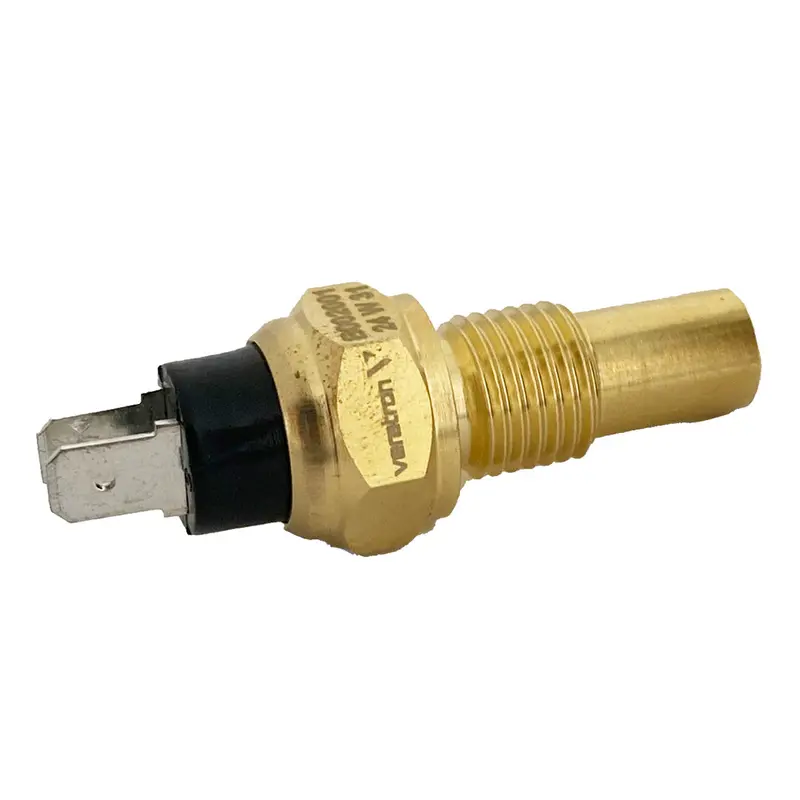

Veratron Engine Oil Temp Sensor – 3/8″-18 NPT Thread, 150°C Range for Standard Ports

Description

Engine Oil Temperature Sensor – 3/8″-18NPT Thread – 150°C Temp Range

These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.

Features:

• Function – Oil temperature, coolant temperature
• Length – 28.5mm (1-1/8″)
• Thread – 3/8″-18NPT
• Calibration – 150°C
• Measurement Range – 150°C
• Output Signals – Resistive
• IP67
• Insulated ground pin

Quick Guide (pdf)
