Vesper Cortex H1P Portable, Wireless, Rechargeable Marine Handset with Charging Cradle

Description

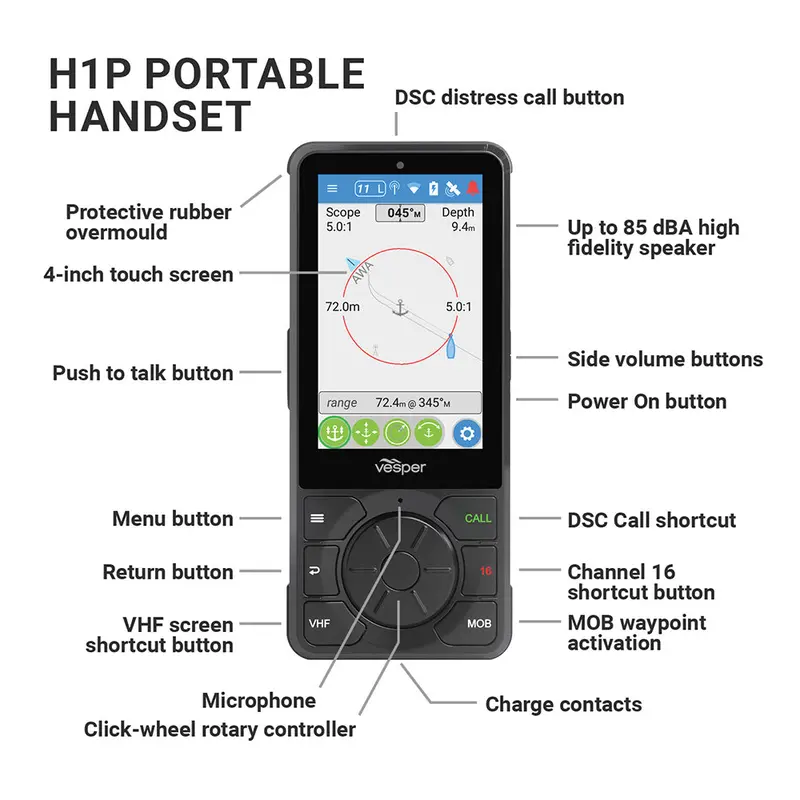

Cortex H1P Portable/Wireless/Rechargeable Handset with Charging Cradle

For the ultimate safety, add a battery-powered rechargeable handset to your Cortex. Have situational awareness and VHF communication at your fingertips, no matter where you are on your boat.

Features:

• Rechargeable, the portable battery-powered handset for connection to Cortex M1
• 4-inch multi-touch display with gorilla glass for maximum durability
• Single hand operation with the unique click wheel and dedicated buttons
• Wet and gloves capable touchscreen
• Optically bonded display for wide-angle and sunlight viewability, even in the harshest midday sun.
• 85 dBA of crystal-clear audio
• Combined AIS and VHF display with voiced alerts
• Touch a vessel onscreen for direct calling (DSC)
• Add 10 handsets to Cortex M1

What’s In The Box?

• H1P Portable Rechargeable Handset
• Charging H1P Cradle
• Non-Powered H1 Cradle

Specifications:

• Size: 164.8 mm x 71.8 mm x 21.4 mm (6.4882” x 2.8268” x 0.8425”)
• Power Supply: 12V, 1A max, 200mA nominal, 12 -24V compatible
• Battery: Lithium Polymer, 2 hour full charge, >12 hours nominal operation
• Weight: 235g
• Environmental: Waterproof (IPX7)
• Operating Temperature:  -25°C to +55°C (-13°F to 131°F)
• Audio: 3W Class D amplifier, THD < 5% @ 85dBA

Display:

• Screen: LCD TFT Si, 640 x 800, 24bit Color
• Touch: Capacitive, optically bonded to LCD. Glove and salt water operable
• Backlight: 600 cd/m2
• Ambient light sensor for auto dimming

Quick Guide (pdf)
