Product Description

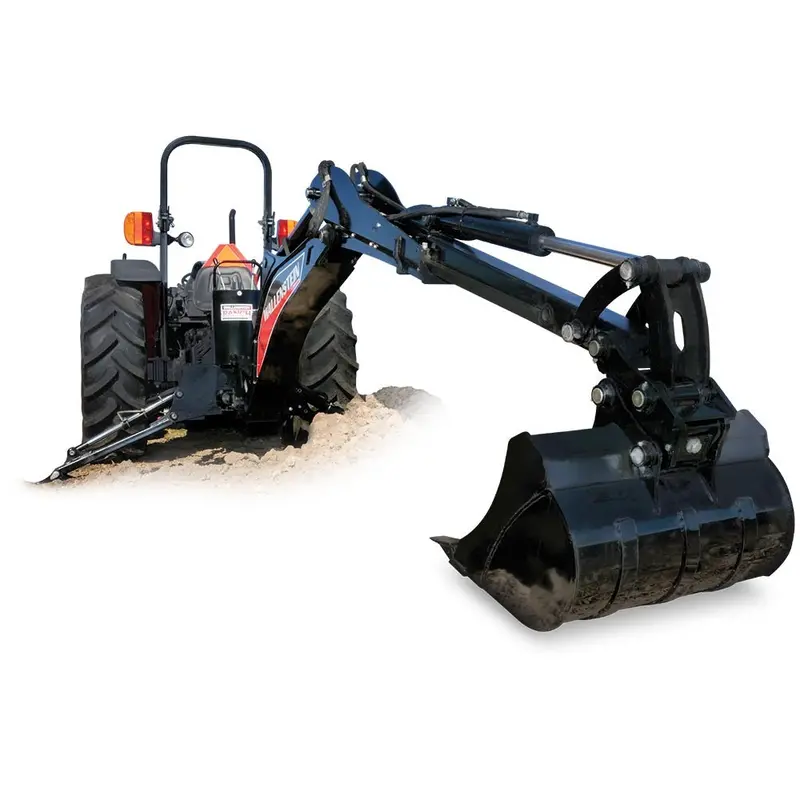

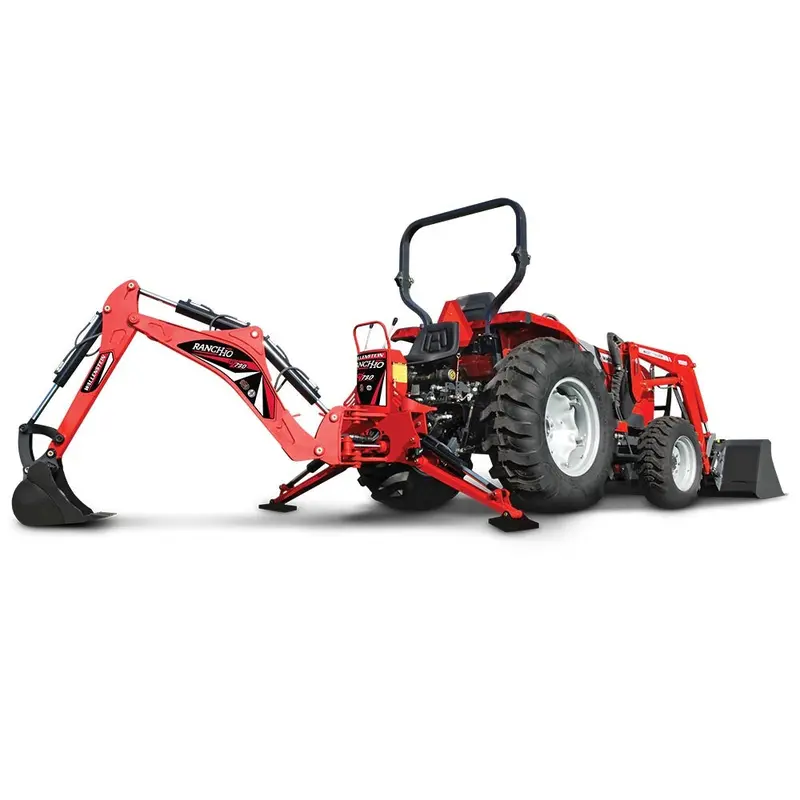

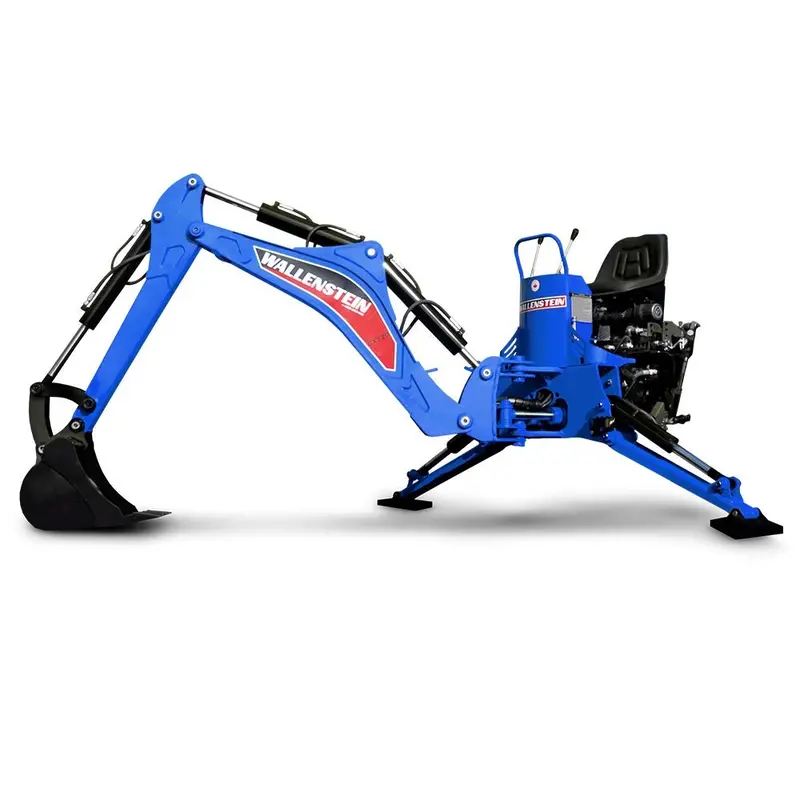

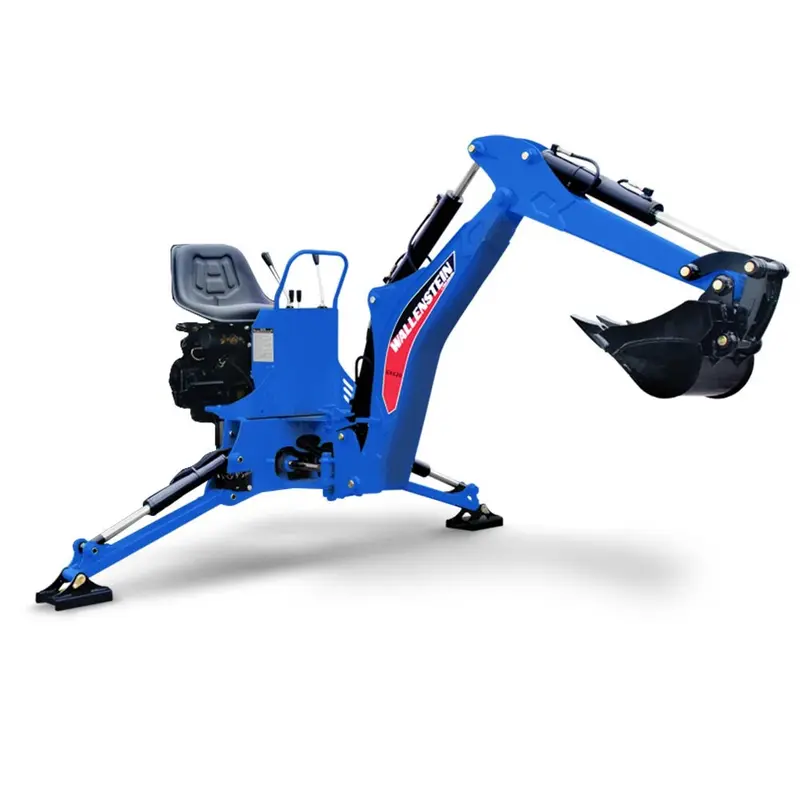

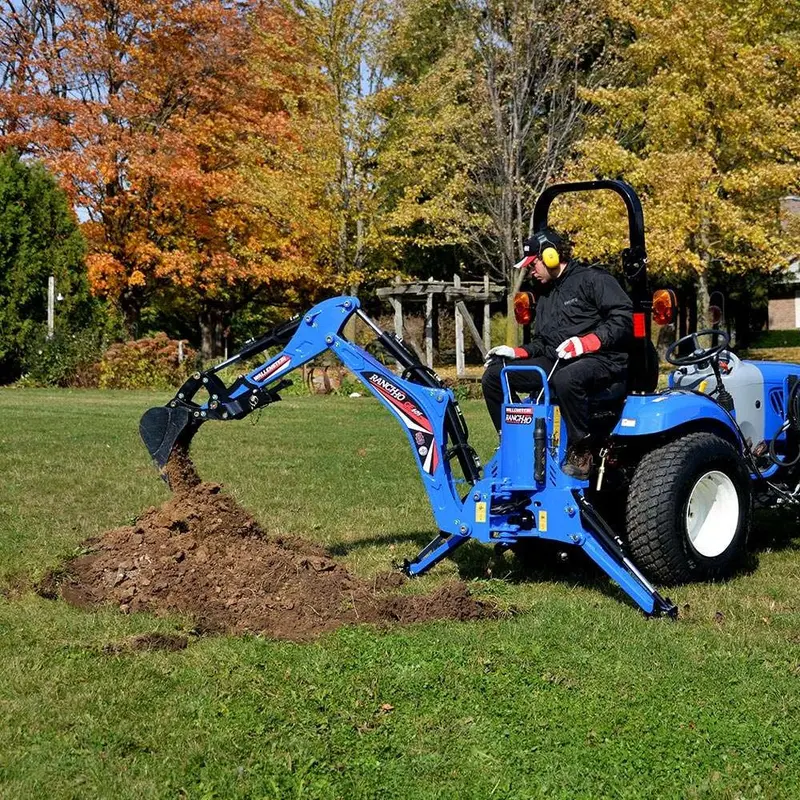

Wallenstein 3-Point Hitch Backhoe | Model GX Series | Digging Depth 6′ 4″ – 11′ 4″ | 45-100 HP | For Tractors
DESCRIPTION

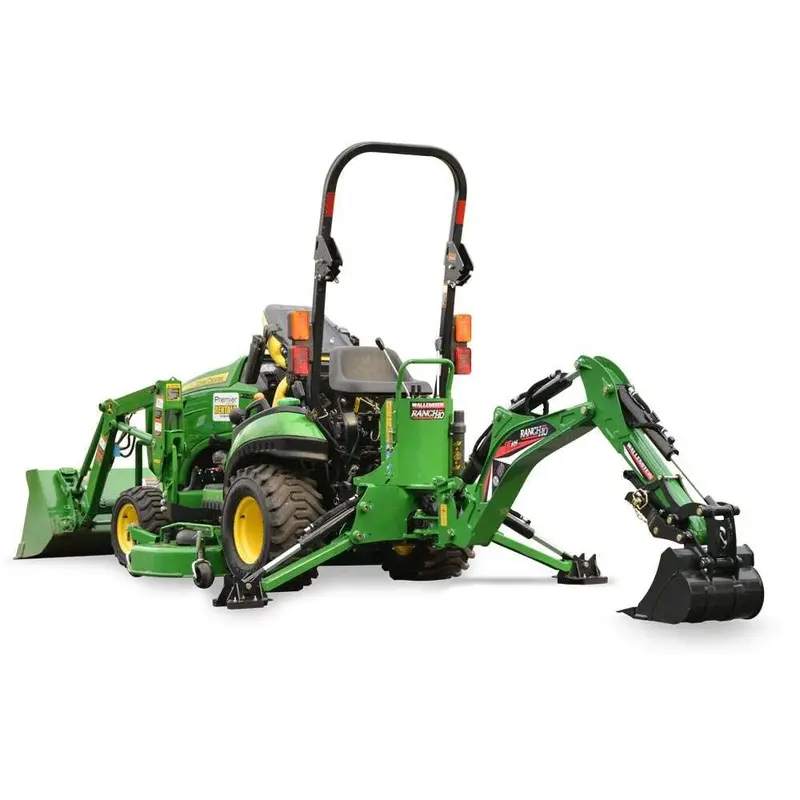

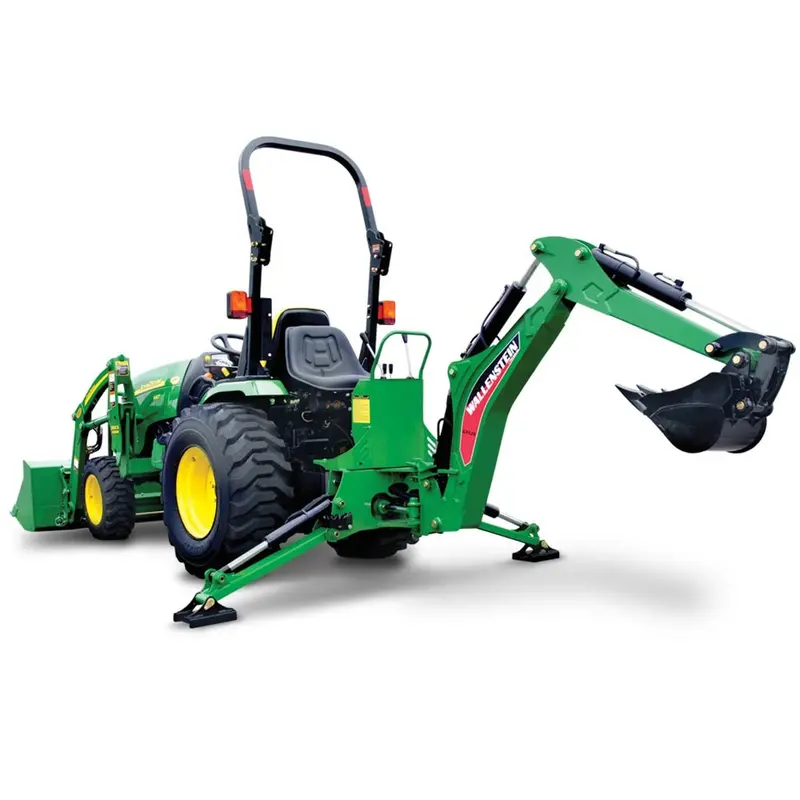

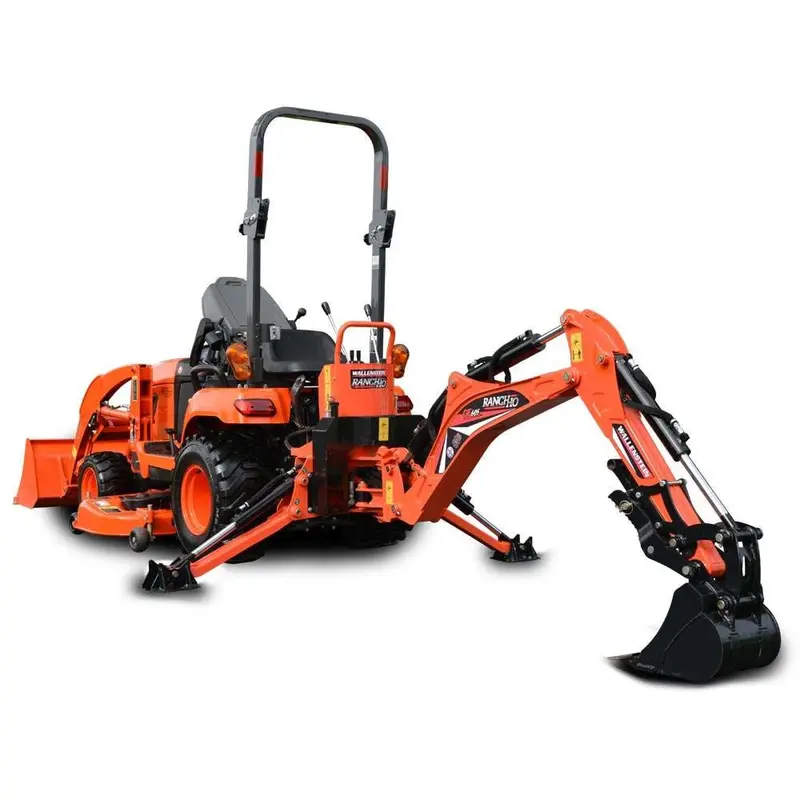

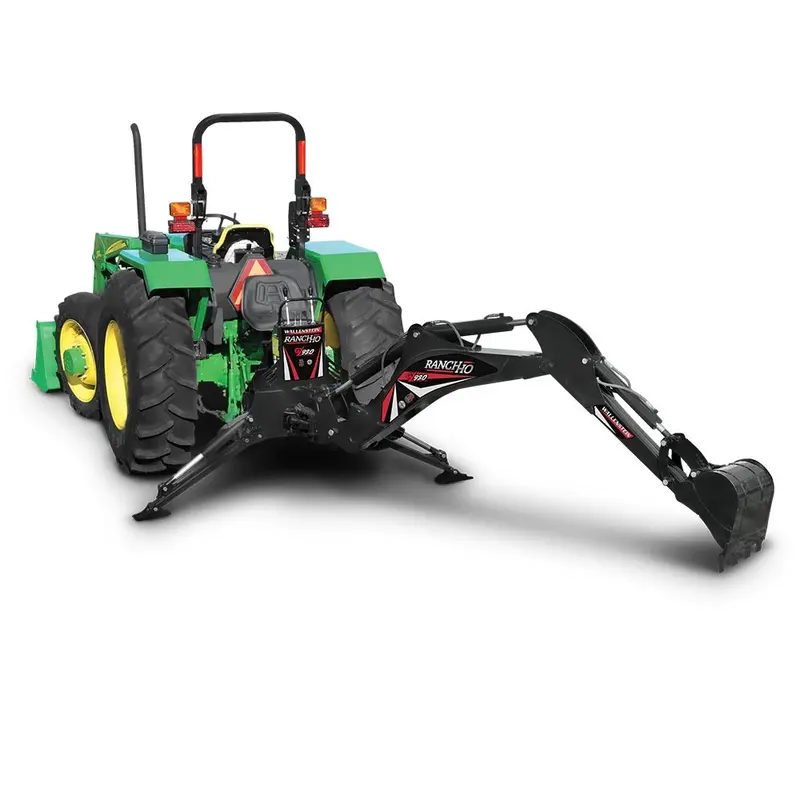

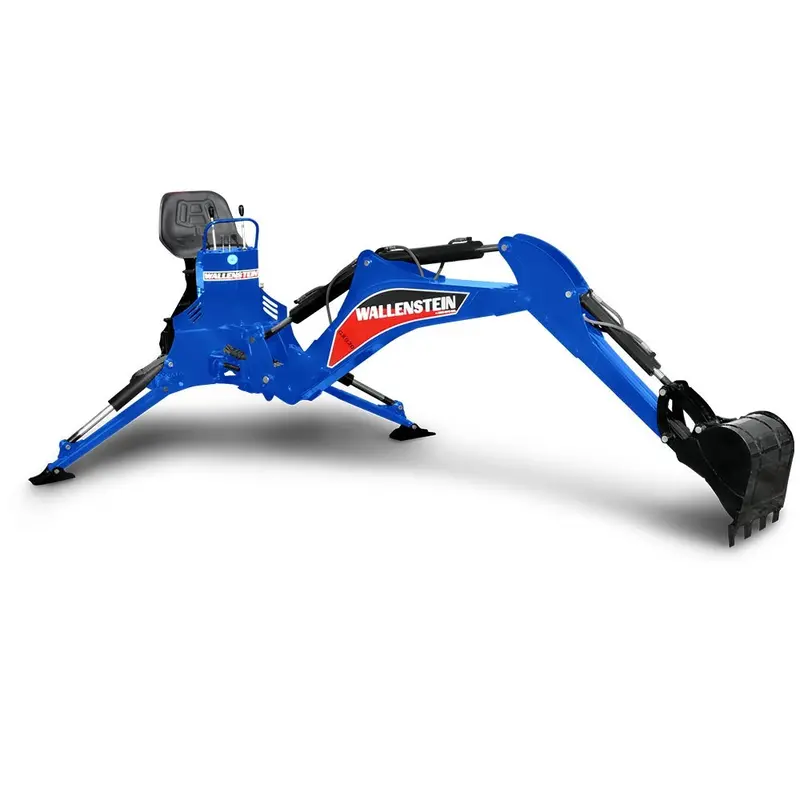

The Wallenstein GX Backhoe Attachment offers powerful digging capabilities for tractors and skidsteers, with a maximum digging depth of 11’4″ when extended. This backhoe is designed to be a versatile and essential tool for various agricultural, landscaping, and construction tasks. Equipped with a 12″ bucket, PTO pump kit, and 3-point mount, the GX provides exceptional reach and digging force, ideal for users who need both depth and power in their work.
With hydraulic-driven functionality, the GX is suited for tractors ranging from 50-100 HP and skidsteers with a 45-100 HP range. This model includes a flow divider and features 180° bucket rotation and swing arc for maximum maneuverability, ensuring efficient operation even in challenging work environments.
Key Features
- Extended Digging Depth: Capable of reaching depths up to 11’4″, this feature allows for deep and efficient excavations, making it suitable for various heavy-duty digging tasks.
- High Power Compatibility: Designed to work seamlessly with 50-100 HP tractors and 45-100 HP skidsteers, ensuring versatile and robust performance across different machinery.
- Optimal Hydraulic Flow: Requires only 5 gpm for efficient operation, making it energy-efficient while maintaining high performance.
- Versatile Mounting Options: Equipped with multiple mounting options, including a skidsteer universal plate and a 3-point mount, allowing for flexible and easy attachment to various equipment.
- Exceptional Bucket Digging Force: Provides an impressive bucket digging force of 3925 lbs, ensuring powerful and efficient digging capabilities.
- Flow Divider: This feature ensures optimal hydraulic distribution, enhancing the overall performance and efficiency of the backhoe attachment.
- Compact and Convenient Transport: The foldable design allows for easy and compact transport, making it convenient to move the equipment between job sites.
- Wide Stabilizer Spread: With a stabilizer width of 89 inches, this feature provides sturdy and reliable operation, preventing tipping and ensuring safe usage.
- Durable Cylinders: Built with robust 3″ and 2.5″ diameter cylinders, these ensure long-lasting durability and reliable performance under demanding conditions.
- Extended Reach: Offers an extended reach of 164 inches from the swing post, providing ample coverage and flexibility for various digging applications.
Detailed Specifications
Model |
Digging Depth |
Reach |
Bucket Size |
Bucket Force |
Machine HP Range |
|---|---|---|---|---|---|
| 11’4″ 3PT Hitch | 11’4″ | 164″ | 12″ | 3925 lbs | 45-100 HP |
| 9’4″ 3PT Hitch | 9’4″ | 141″ | 12″ | 3500 lbs | 35-80 HP |
| 7’8″ 3PT Hitch | 7’8″ | 118″ | 12″ | 3200 lbs | 25-60 HP |
| 6’4″ 3PT Hitch (18-28 HP, Subframe, PTO) | 6’4″ | 95″ | 12″ | 2900 lbs | 18-28 HP |
| 6’4″ 3PT Hitch (18-20 HP) | 6’4″ | 95″ | 12″ | 2900 lbs | 18-20 HP |
| 6’4″ 3PT Hitch (18-28 HP, Subframe, Bucket) | 6’4″ | 95″ | 12″ | 2900 lbs | 18-28 HP |
Manuals & Documents
Operator Manuals
- GE and GX Rancho Series Operator’s Manual
- GE and GX Series Backhoe Operator’s Manual
- PT322 Three-Point Hitch Adaptor Kit Installation Instructions – Class II Tractors
- PTO62 and PTO72 PTO Pump Kit for Backhoes – Installation Instructions
Parts Manuals
- Backhoe Thumb Parts Book
- S/N 3920XT13 TO S/N 3920XT20
- S/N 3920XT20 TO S/N 3920XT66
- S/N 3920XT67 to 3920XT220
- S/N 3920XT221 & up
Setup Instructions
GE-GX Series Backhoe Setup Instructions
