Wildlife Farming 3PT Sprayer | Heavy-Duty Chemical-Resistant | 45–300 Gallon Capacity | 2.4–12 GPM Flow | 10′–36′ Spray Coverage | 25–80 HP | For Tractor
DESCRIPTION
The 3PT Sprayer Series delivers precision chemical application, robust pump systems, and customizable spray setups for farming, landscaping, and commercial groundskeeping. Available in capacities from 45 to 300 gallons, these units mount easily via Category 1 or 2 three-point hitch systems, making them ideal for tractors rated 25–80 HP.
Choose between 12V electric pumps or cast iron roller pumps to suit your spraying needs—whether you’re spot spraying small acreage or applying broadcast herbicides across wide tracts of land. Models feature a selection of nozzle booms, wetbooms, or custom boom options, with broadcast spray coverage from 10′ to 36′. All tanks are made from UV-resistant, blow or roto molded polyethylene, ensuring longevity and easy chemical handling with wide 5″ lids and integrated drain ports.
For enhanced control, select models include exclusive manifold pressure systems, anti-drip strainers, and independent nozzle shutoff valves to refine your coverage with confidence.
Key Features

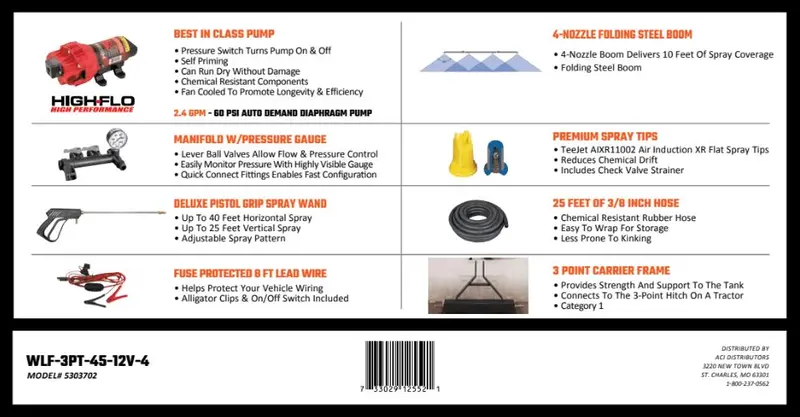

- High Flo 12V Pump Options: Fan-cooled motors deliver 2.4–4.5 GPM flow for consistent spray pressure and low maintenance.

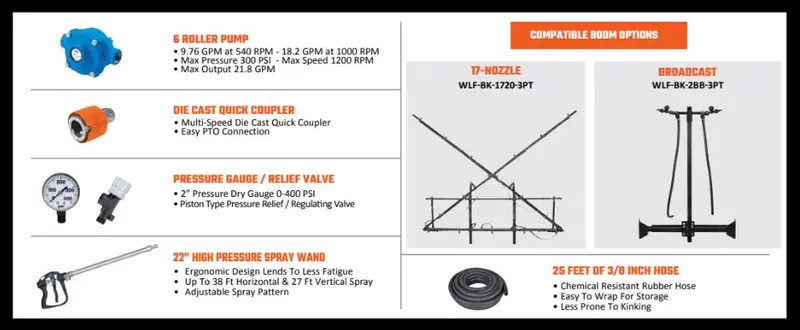

- Cast Iron Roller Pump System: PTO-driven roller pumps provide 9–12 GPM output, optimized for extended field use with tough chemicals.
- Molded Polymer Tanks: UV-stabilized blow or roto molded polyethylene tanks range from 45 to 300 gallons, featuring wide 5″ lids and full drainability.
- Boom Type Customization: Choose between TeeJet air induction nozzles, 3–5 nozzle wetbooms, or steel broadcast booms delivering up to 36′ spray width.
- Independent Nozzle Shutoffs: Control spray zones with Hypro or TeeJet tips and valve-integrated booms.
- Pressure Manifold Assembly: Fingertip control for adjusting spray pressure, with integrated anti-drip strainers and fuse-protected wiring.
- Pro Series Spray Wand System: Ergonomic polymer or brass wand options provide 40′ horizontal and 28′ vertical spray reach with 25′ hoses.
- 3-Point Hitch Mounting: Compatible with Category 1 or 2 tractors (25–80 HP); quick-connect frame design for easy install and removal.
- Durability Across Terrain: Tanks resist UV degradation and chemical fatigue; pumps built for rugged PTO environments.
- Ideal for Farms, Orchards & Estates: Spray herbicides, pesticides, or liquid fertilizers on pasture, row crops, fence lines, and structures.
Detailed Specifications
300 Gallon 3PT Sprayer and 200 Gallon 3PT Sprayer
| Specification |
300 Gallon 3PT Sprayer |
200 Gallon 3PT Sprayer |
|---|---|---|
| Capacity | 300 Gallons | 200 Gallons |
| Pump Type | Roller Pump | Roller Pump |
| Spray Width | 34 feet | 34 feet |
| Hose Length | 25 feet | 25 feet |
| Tank Type | UV Stabilized Roto Mold | UV Stabilized Roto Mold |
| Weight | 450 lbs | 350 lbs |
110 Gallon 3PT Sprayer and 65 Gallon 3PT Sprayer
| Specification |
110 Gallon 3PT Sprayer |
65 Gallon 3PT Sprayer |
|---|---|---|
| Capacity | 110 Gallons | 65 Gallons |
| Pump Type | Roller Pump | Roller Pump |
| Spray Width | 25 feet | 25 feet |
| Hose Length | 25 feet | 25 feet |
| Tank Type | UV Stabilized Roto Mold | UV Stabilized Blow Mold |
| Weight | 250 lbs | 150 lbs |

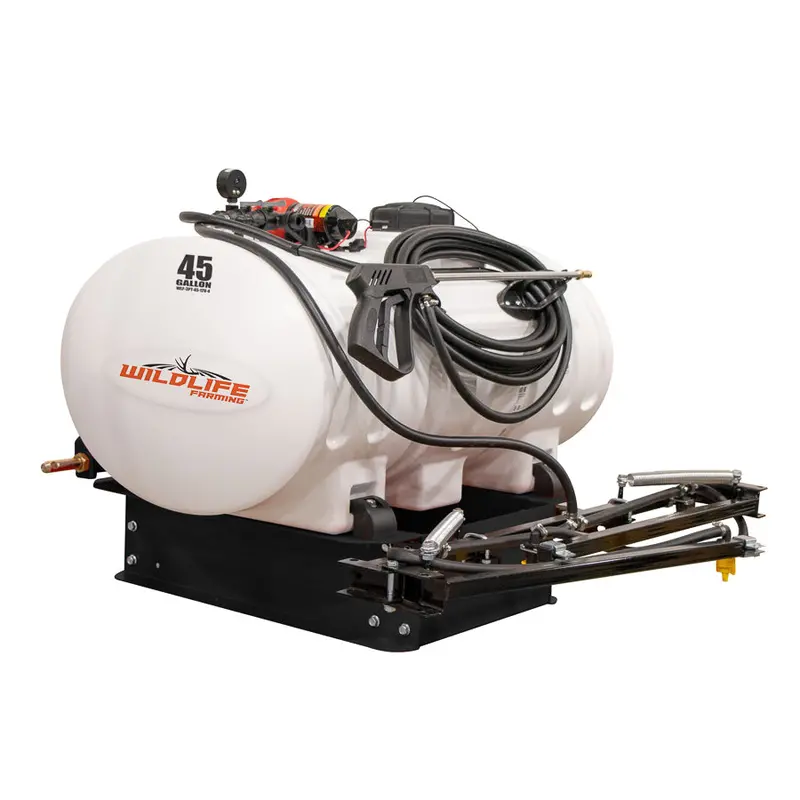

45 Gallon 3PT Sprayer
| Specification |
45 Gallon 3PT Sprayer |
|---|---|
| Capacity | 45 Gallons |
| Pump Type | 12V Pump |
| Spray Width | 36 feet |
| Hose Length | 25 feet |
| Tank Type | Molded Polymer Tank |
| Weight | 120 lbs |
