Product Description
Checchi & Magli Transplanter Unitrium45 | 1-6 Rows | 79″-157″ Frame Width | 22-45HP For Tractor
Included Options:
- Microgranulator: For continuous distribution with mechanical transmission.
- Fertilizer Unit: With mechanical transmission for consistent fertilizer distribution.

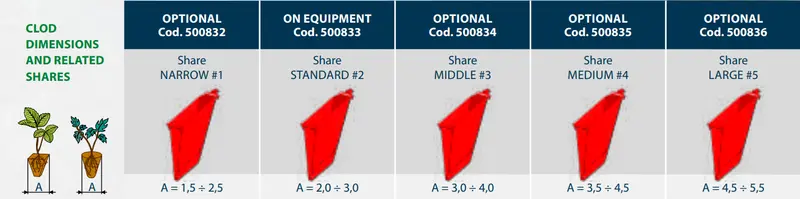

- Clod Share Sizes: Available in various sizes for different planting needs.

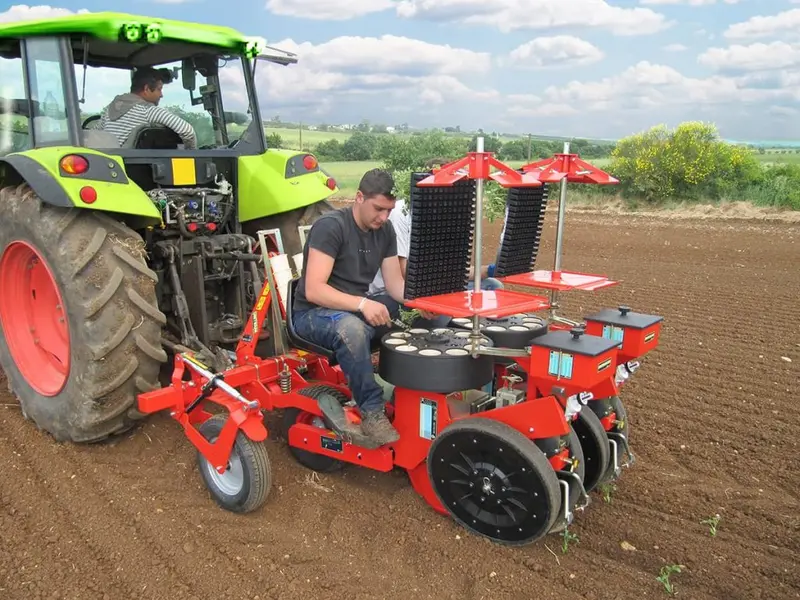

- Tray Holders: Options include rotary holders (4-6 sides) and horizontal racks with multiple shelves.
- Row Markers: Manual or hydraulic options with adjustable widths.

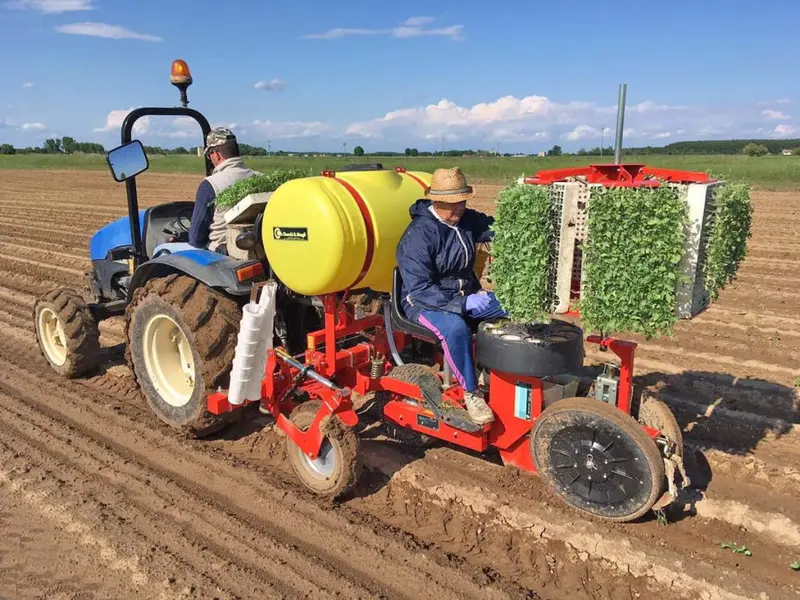

- Watering Device: Synchronized watering system available.

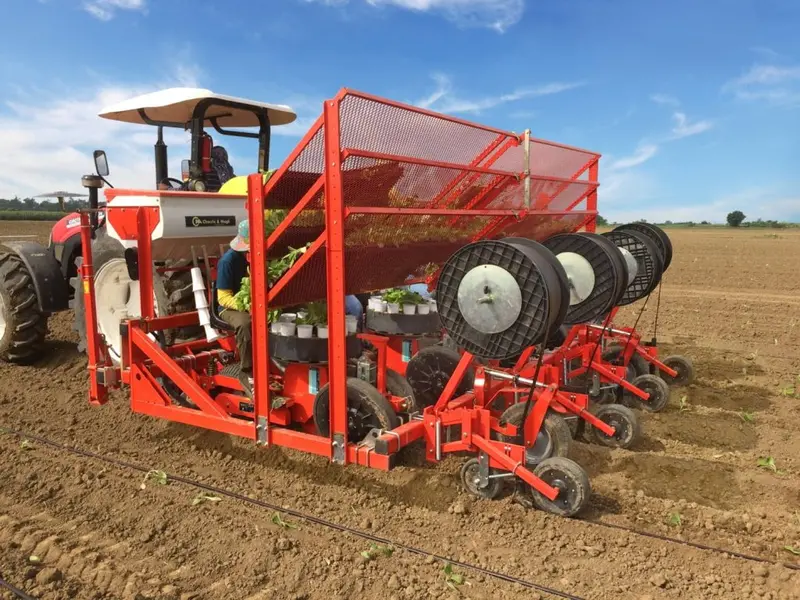

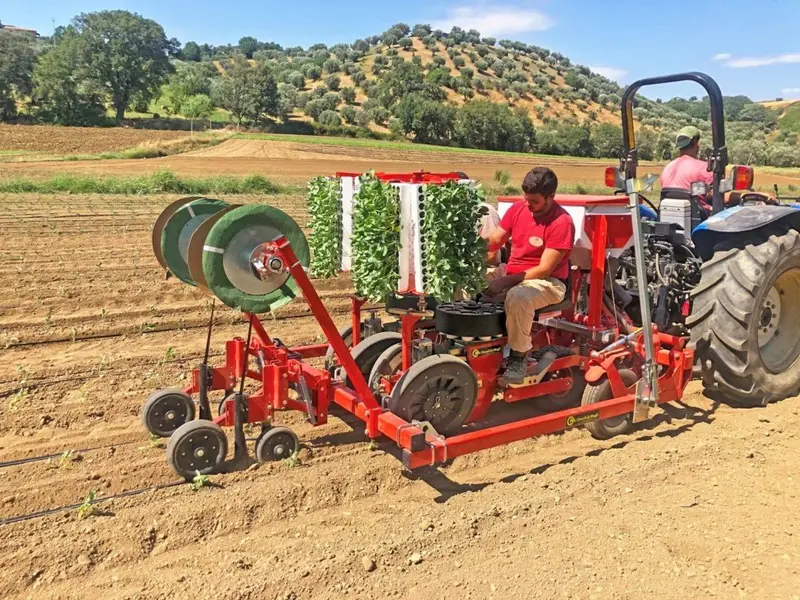

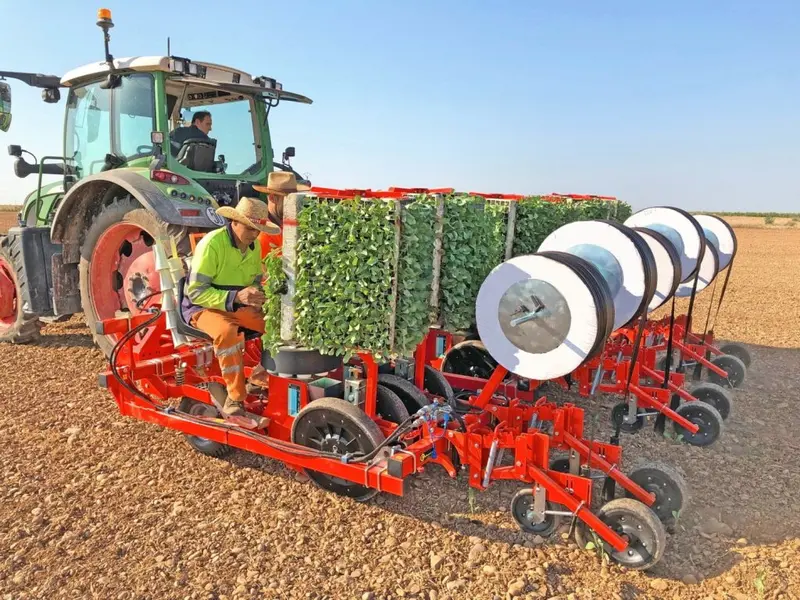

- Drip Tape Dispenser: Surface or sub-surface models for drip irrigation.
- Frame Sizes: Frames are available in multiple sizes, with reinforced or folding hydraulic frames based on the number of rows.
- Cutting discs (waved or smooth)
- Extra tray holders
- Ridging discs
DESCRIPTION

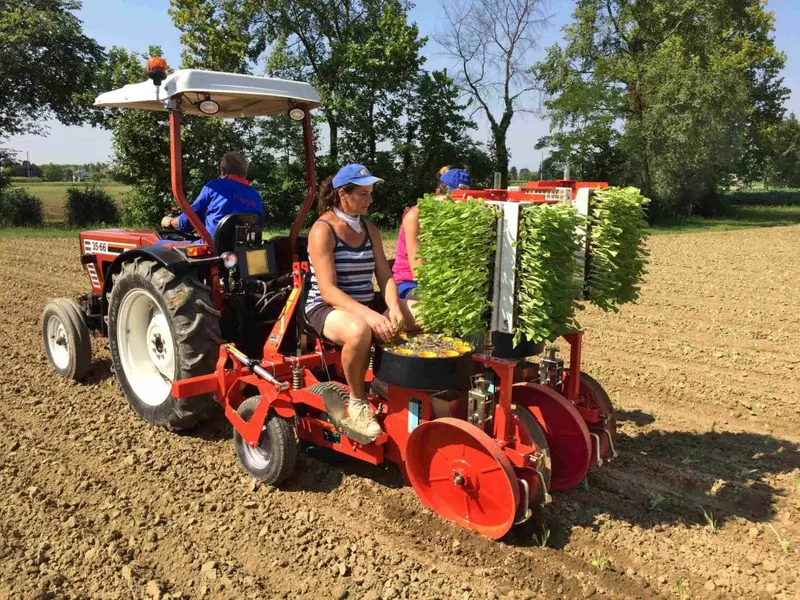

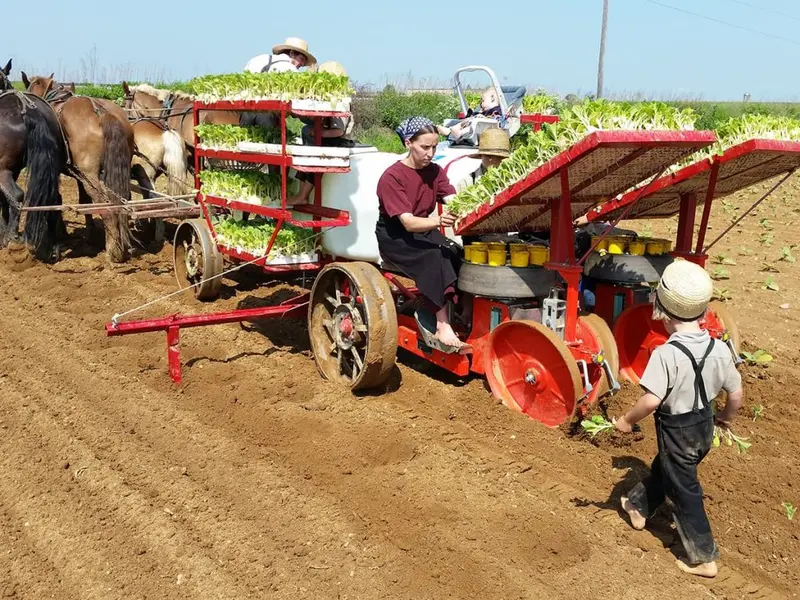

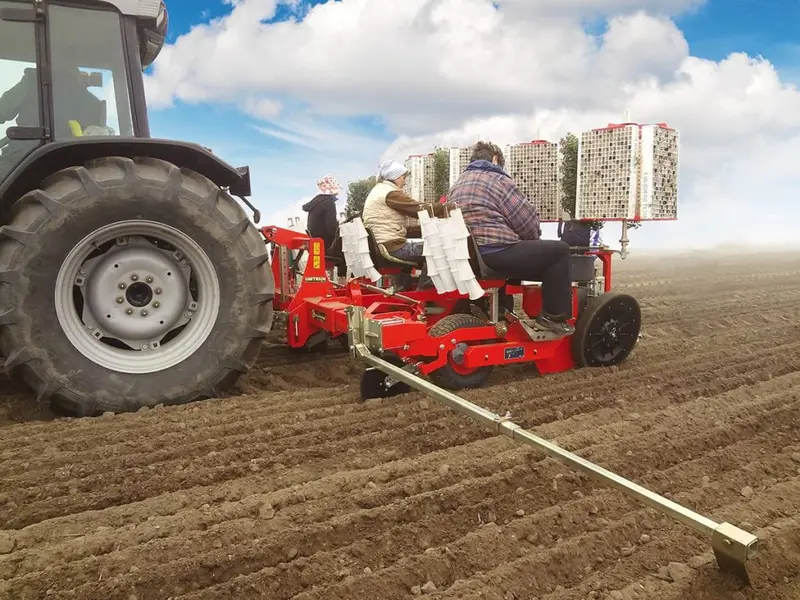

Experience the perfect blend of affordability, performance, and ease of use with the Unitrium45 transplanter. Designed for efficient planting, this semi-automatic machine is ideal for tapered and pyramid-shaped clod plants with developed leaves such as tobacco, tomatoes, and cabbage. The modular, independent planting units allow seamless integration with high-output operations, ensuring precision and consistency for up to 5,000 plants per hour, per row. With a 10-cup rotating distributor and the option to upgrade to 12 cups, this unit is built for speed and operator comfort. Its highly adaptable features ensure that it handles varying soil types and planting conditions with ease.
- Minimum Distance Between Rows: 45 cm (18″)
- Functionality: Semiautomatic for tapered and pyramid-shaped clod plants. Operated by a tyred driving wheel on each unit. Ideal for plants with extensive leaves like tobacco, tomato, cabbage, etc.
- Modular Design: Independent and modular transplant units.
- 10-Cup Rotating Distributor: Ensures high efficiency, capable of handling large leafy plants. (Optional 12-cup version available on request).
- Output: Approximately 4500-5000 plants per hour per row. (Up to 6-7000 with the 12-cup version).
- Tray Holders: Not included, but there are options for 4-sided or 6-sided revolving holders and horizontal racks with 2 or more shelves.
Key Features
- Distribution System: Horizontal rotating with 10 fully opening cups for seamless rotation. Comes with inserts to accommodate high/leafy plants.
- Soil Adaptation: Independent and floating transplant units, adjustable support wheels, and packing wheels with spring-loaded pressure adjustment.
- Precise Planting: Device to ensure constant planting depth and control.
- Packing Wheels: Double-convergent with triple adjustment for optimal performance.
- Furrow Opener: Quick-release with anti-wear fusion on the bottom.
- Wheel Scraper: High-efficiency with dual adjustment (height and incidence).
- Plant-to-Plant Spacing: Adjustable from 10 cm to 100 cm (4″-39″) with 26 different settings.
- Drive Mechanism: Mechanical transmission using an oscillating drive wheel for each transplant unit.

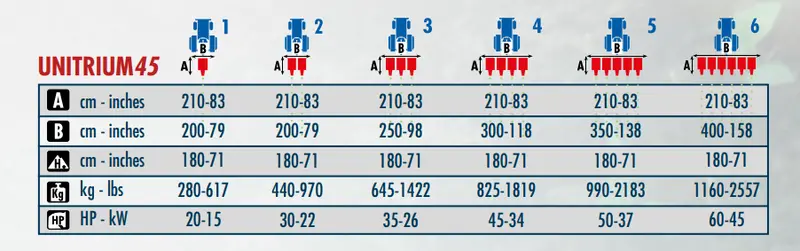

Detailed Specifications
| Feature | Details |
|---|---|
| Rows | 1 Row |
| Frame | Standard |
| Size | 79″ |
| Power (HP) | 22 HP |
| Weight (lbs) | 970 lbs |
| Feature | Details |
|---|---|
| Rows | 2 Rows |
| Frame | Standard |
| Size | 79″ |
| Power (HP) | 22 HP |
| Weight (lbs) | 970 lbs |
| Feature | Details |
|---|---|
| Rows | 3 Rows |
| Frame | Reinforced |
| Size | 98″ |
| Power (HP) | 26 HP |
| Weight (lbs) | 1422 lbs |
| Feature | Details |
|---|---|
| Rows | 4 Rows |
| Frame | Reinforced |
| Size | 118″ |
| Power (HP) | 34 HP |
| Weight (lbs) | 1819 lbs |
| Feature | Details |
|---|---|
| Rows | 5 Rows |
| Frame | Reinforced |
| Size | 138″ |
| Power (HP) | 37 HP |
| Weight (lbs) | 2183 lbs |
| Feature | Details |
|---|---|
| Rows | 6 Rows |
| Frame | Reinforced |
| Size | 157″ |
| Power (HP) | 45 HP |
| Weight (lbs) | 2557 lbs |
In Package:
- Transplanter Unitrium45 with 10-cup rotating distributor (upgradeable to 12 cups)
- Independent floating transplant units
- Quick-release furrow opener with anti-wear bottom
- Double-convergent packing wheels with adjustable pressure
- High-efficiency wheel scraper with height and incidence adjustments
- Device for precise and constant planting
