DH Farm Drag Scraper | Model M08 | Width 8′ | 40–80 PTO HP | For Tractors
DESCRIPTION

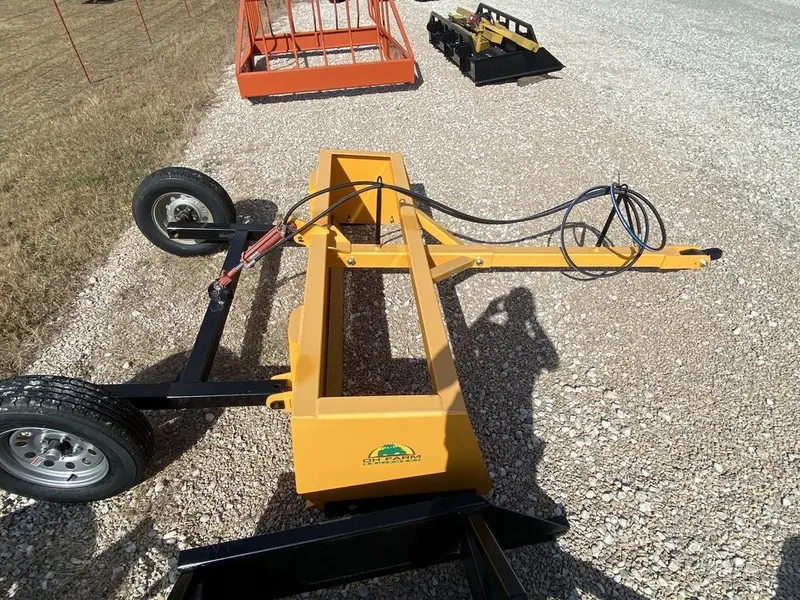

The DH M08 Drag Scraper is a heavy‑built, 8‑foot box scraper designed for efficient grading, leveling, and earth‑moving tasks. Constructed with a ¼″ back plate and 5/16″ side plates, it delivers durability and strength for demanding jobs.
Its box measures 24″ tall and 24″ deep across the top, providing reliable capacity for material handling. A reversible cutting edge extends service life, while replaceable side wear plates ensure long‑term usability. Weighing approximately 1,000 lbs, the DH M08 requires 40–80 PTO horsepower, making it suitable for mid‑sized tractors.
Key Features
- 8 ft Wide Frame – Compact working width ideal for mid-size grading and land management projects.
- ¼″ Thick Back Plate – Heavy-duty steel construction ensures strength and long service life.
- 5/16″ Thick Side Plates – Reinforced side walls provide stability and durability during earth-moving operations.
- 24″ × 24″ Box Size (across top) – Efficient design for handling soil, gravel, and other materials.
- Reversible Cutting Edge – Doubles blade life by allowing both sides to be used before replacement.
- Approx. 1,000 lbs Weight – Balanced build for durability and effective ground penetration.
- 40–80 PTO HP Tractor Requirement – Compatible with mid-range tractors for reliable pulling power.
- Versatile Applications – Built for earth-moving, grading, and land management across farms, ranches, and construction sites.
- Color May Vary – Available in standard finishes to suit different equipment fleets.
Detailed Specifications
| Feature | Details |
|---|---|
| Model | DH M08 Drag Scraper |
| Width | 8 ft |
| Back Plate | ¼″ thick |
| Side Plates | 5/16″ thick |
| Box Size | 24″ tall × 24″ deep (across top) |
| Cutting Edge | Reversible |
| Weight | Approx. 1,000 lbs |
| Color | May vary |
| Horsepower Req. | 40–80 PTO HP (tractor) |
| Application | Earth‑moving, grading, land management |
