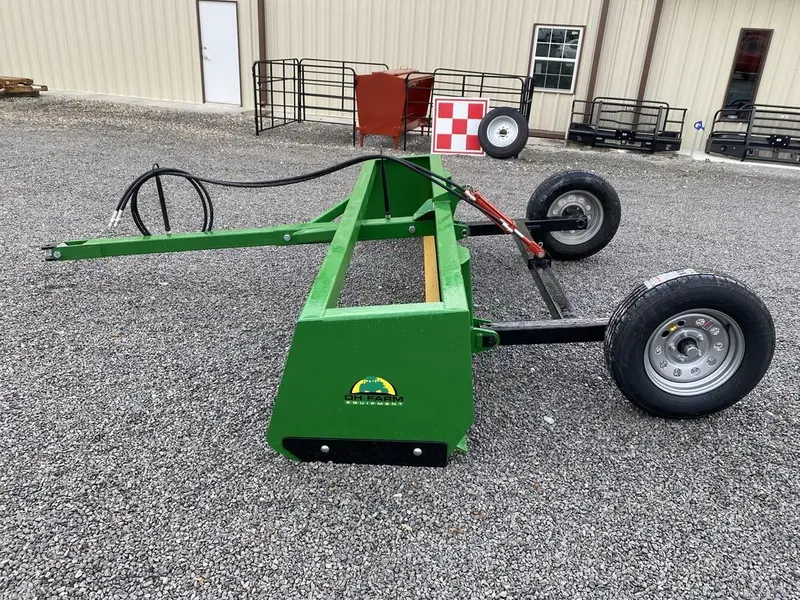

DH Farm Drag Scraper | Model M10 | Width 10′ | 50–80 PTO HP | For Tractors
DESCRIPTION
The DH M10 Drag Scraper is a compact yet heavy‑duty scraper designed for efficient grading, leveling, and earth‑moving tasks. Built with a ¼″ back plate and 5/16″ side plates, it delivers durability and strength for demanding jobs. The box measures 24″ tall and 24″ deep across the top, providing reliable capacity for material handling.
A reversible cutting edge extends service life, while its manageable size and weight (approx. 1,120 lbs) make it suitable for mid‑sized tractors. For optimal performance, the DH M10 requires approximately 50–80 PTO horsepower, ensuring smooth operation in field and construction applications.
Key Features
- ¼″ Thick Back Plate – Heavy-duty steel construction ensures strength and long service life.
- 5/16″ Thick Side Plates – Reinforced side walls provide stability and durability during earth-moving operations.
- 24″ × 24″ Box Size (across top) – Compact yet efficient design for grading and land management tasks.
- Reversible Cutting Edge – Extends blade life by allowing both sides to be used before replacement.
- Approx. 1,120 lbs Weight – Balanced build for durability and effective ground penetration.
- 50–80 PTO HP Tractor Requirement – Compatible with mid-range tractors for reliable pulling power.
- Versatile Applications – Ideal for earth-moving, grading, and land management across farms, ranches, and construction sites.
- Color May Vary – Available in standard finishes to suit different equipment fleets.
Detailed Specifications
| Feature | Details |
|---|---|
| Model | DH M10 Drag Scraper |
| Back Plate | ¼″ thick |
| Side Plates | 5/16″ thick |
| Box Size | 24″ tall × 24″ deep (across top) |
| Cutting Edge | Reversible |
| Weight | Approx. 1,120 lbs |
| Color | May vary |
| Horsepower Req. | 50–80 PTO HP (tractor) |
| Application | Earth‑moving, grading, land management |
